Partiron

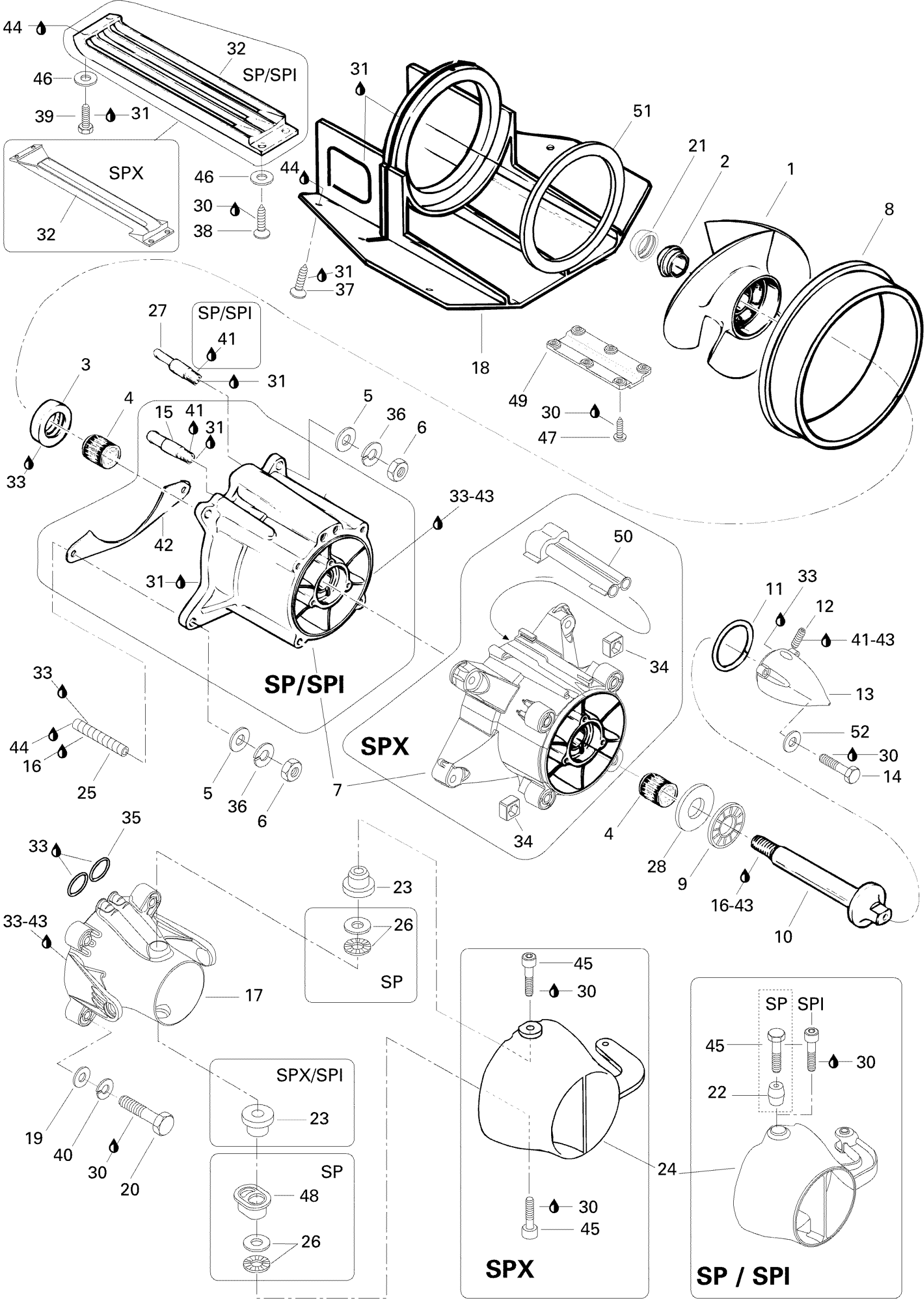

Sea-doo SP, 5876, 1996 Propulsion SP Diagram

#

Description
Price

1

Aluminum Impeler Ass'y (18.8º)

271000016

Unavailable

1

Stainless Steel Impeler Ass'y | Includes 1 - 2. SP 5879.

271000046

Unavailable

2

Impeller Boot

271000516

$6.86

2

Impeller Boot | SP 5879.

271000069

Unavailable

3

Oil Seal

267000094

$17.52

4

Needle Bearing

293350017

$21.42

5

Flat Washer 10 mm, Stainless

234001600

$0.91

6

HEX. NUT M10 - Call your local BRP dealership

232001600

Unavailable

7

Impeller Housing Ass'y (Aluminium) | Includes 3, 4

295500109

Unavailable

8

Wear Ring

271000290

$47.42

9

THRUST BEARING - Call your local BRP dealership

293350002

Unavailable

10

IMPELLER SHAFT - Call your local BRP dealership

271000291

Unavailable

11

O-Ring

293300011

$6.46

12

Pipe Plug Socket Head 1/8-27 Npt

211500001

$7.02

13

IMPELLER COVER - Call your local BRP dealership

271000463

Unavailable

14

Hex. Screw M5 X 20

207152060

$1.22

15

FITTING-PUMP - Call your local BRP dealership

293700019

Unavailable

16

Loctite 271, 10 ml

293800005

$20.77

17

Venturi Ass'y

271000428

Unavailable

18

Shoe (Black)

271000325190

Unavailable

19

Flat Washer 8 mm, Stainless

234082600

$1.98

20

Hex. Screw M8 X 45

207084560

$2.77

21

RING - Call your local BRP dealership

271000313

Unavailable

22

Sleeve

271001816

$11.58

23

Venturi Bushing

293900001

$6.14

24

Steering Nozzle Ass'y (Plastic) | Includes 23

271000403

Unavailable

25

Stud M10

211300014

Unavailable

26

Thrust Washer

211200002

Unavailable

27

BAILER FITTING - Call your local BRP dealership

293700017

Unavailable

28

Thrust Washer

293350003

Unavailable

30

Loctite 243, 10 ml

293800060

$20.77

31

Instant Gasket

219701421

$50.02

32

Inlet Grate | SP 5879.

271000085

Unavailable

33

Était/Was 293800038 Loctite 518, 50 ml

219704456

$48.48

34

Not Available As Spare Parts

XXX

Unavailable

35

O-Ring

293300013

$5.69

36

Helicoidal Lock Washer M10 | XT Models

234101601

$0.92

37

Phillips Screw M6 X 25

208562560

$1.92

38

Hex. Screw M6 X 16

207161660

$1.22

39

Hex. Forming Screw M6 X 20

207162060

$1.03

40

Lock Washer 8 mm, Stainless

234181601

$0.46

41

Was 293800018 Loctite 592, 50 ml | Package T

219704455

$33.99

42

Shim | SP 5879.

271000070

Unavailable

43

Was 293800041 Loctite Primer 7649

219704458

$41.99

44

Silicone Sealant 51388, 300 ml

296000309

$35.72

45

SCREW-SPECIAL M8 - Call your local BRP dealership

211000047

Unavailable

46

Stainless Flat Washer M6

234061600

$0.25

47

SCREW-CTSK.OV.HD.PH.DIN.966A-A2 - Call your local BRP dealership

216351060

Unavailable

48

Plastic Bushing

293900010

$7.15

49

Ride Shoe Cap

291000446

Unavailable

50

Not Available As Spare Parts

XXX

Unavailable

51

SEAL NEOPRENE - Call your local BRP dealership

293200024

Unavailable

52

Flat Washer M5, Stainless

234051600

$0.64
