1974 Yamaha SM292F Fuel Tank Diagram

← All diagrams

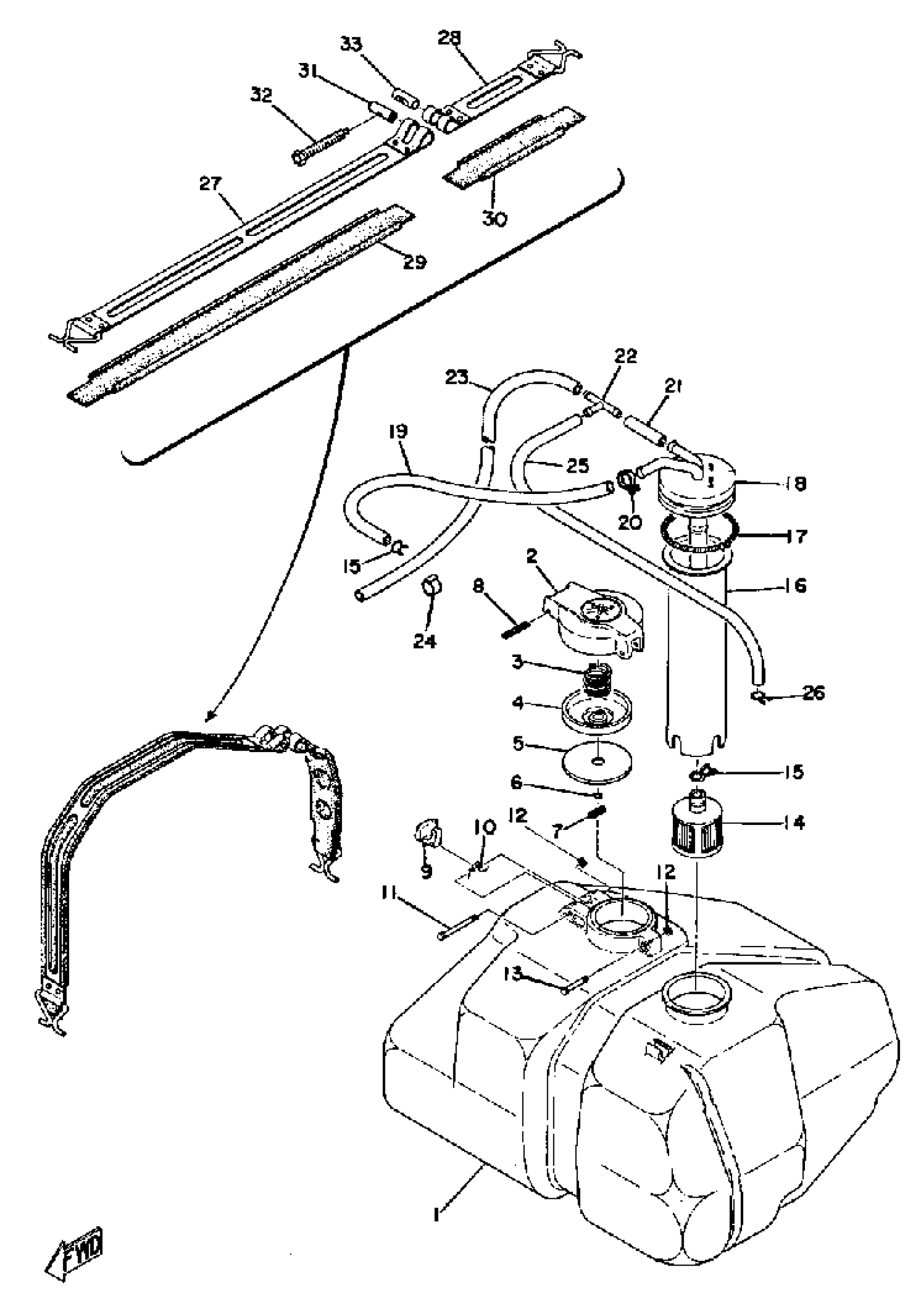

Find the part on the Fuel Tank diagram for your 1974 Yamaha SM292F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha SM292F Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FUEL TANK

(897-24111-00-00)

1
Out of stock

2

BODY, CAP

8A5-24611-00-00

1
Out of stock

3

SPRING, CAP

90501-20130-00

1
Out of stock

4

DISK,CAP

813-24613-01-00

1
Out of stock

5

GASKET, CAP

256-24612-00-00

1
Out of stock

6

O-RING (256)

93210-04122-00

1
Out of stock

7

PIN, SPRING

91690-30016-00

1
Out of stock

8

PIN, SPRING

91609-25032-00

1
Out of stock

9

HOOK

83M-24628-00-00

1
Out of stock

10

SPRING, TORSION (813-24637-00)

90508-08003-00

1
Out of stock

11

PIN (813)

90249-03017-00

1
Out of stock

12

CIRCLIP (604)

93430-02001-00

1
Out of stock

13

PIN, SPEC''L SHAPE

90249-03016-00

1
Out of stock

14

FILTER ASSY

8H5-24560-00-00

1
Out of stock

15

CLIP (8J7)

90467-11009-00

1
Out of stock

16

PIPE, SUCTION 2

(829-24336-00-00)

1
Out of stock

17

SPRING, TENSION (8R4)

90506-06261-00

—
Out of stock

18

PIPE, SUCTION 1

853-24335-00-00

1
Out of stock

19

HOSE

(90446-11026-00)

1
Out of stock

20

CLIP(3BM)

90467-10135-00

—
Out of stock

21

HOSE

90446-09052-00

1
Out of stock

22

PIPE, JOINT

867-24461-00-00

1
Out of stock

23

HOSE

(90446-09054-00)

1
Out of stock

24

CLIP (867)

90468-15020-00

—
Out of stock

25

HOSE

90446-09053-00

1
Out of stock

26

CLAMP, HOSE

90460-09001-00

1
Out of stock

27

BAND, TNK FITTING 1

853-24173-00-00

1
Out of stock

28

BAND, TNK FITTING 2

853-24199-00-00

1
Out of stock

29

DAMPER, LOCATING 3

(853-24183-00-00)

1
Out of stock

30

DAMPER, LOCATING 4

(853-24184-00-00)

1
Out of stock

31

CLAMP

806-24135-00-00

—
Out of stock

32

SCREW, SPEC''L SHAPE (821-24176-00)

90149-05006-00

1
Out of stock

33

NUT, SPEC''L SHAPE (806-24146-00)

90179-05030-00

1
Out of stock
