1974 Yamaha SM292F Decompression Valve Diagram

← All diagrams

Find the part on the Decompression Valve diagram for your 1974 Yamaha SM292F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

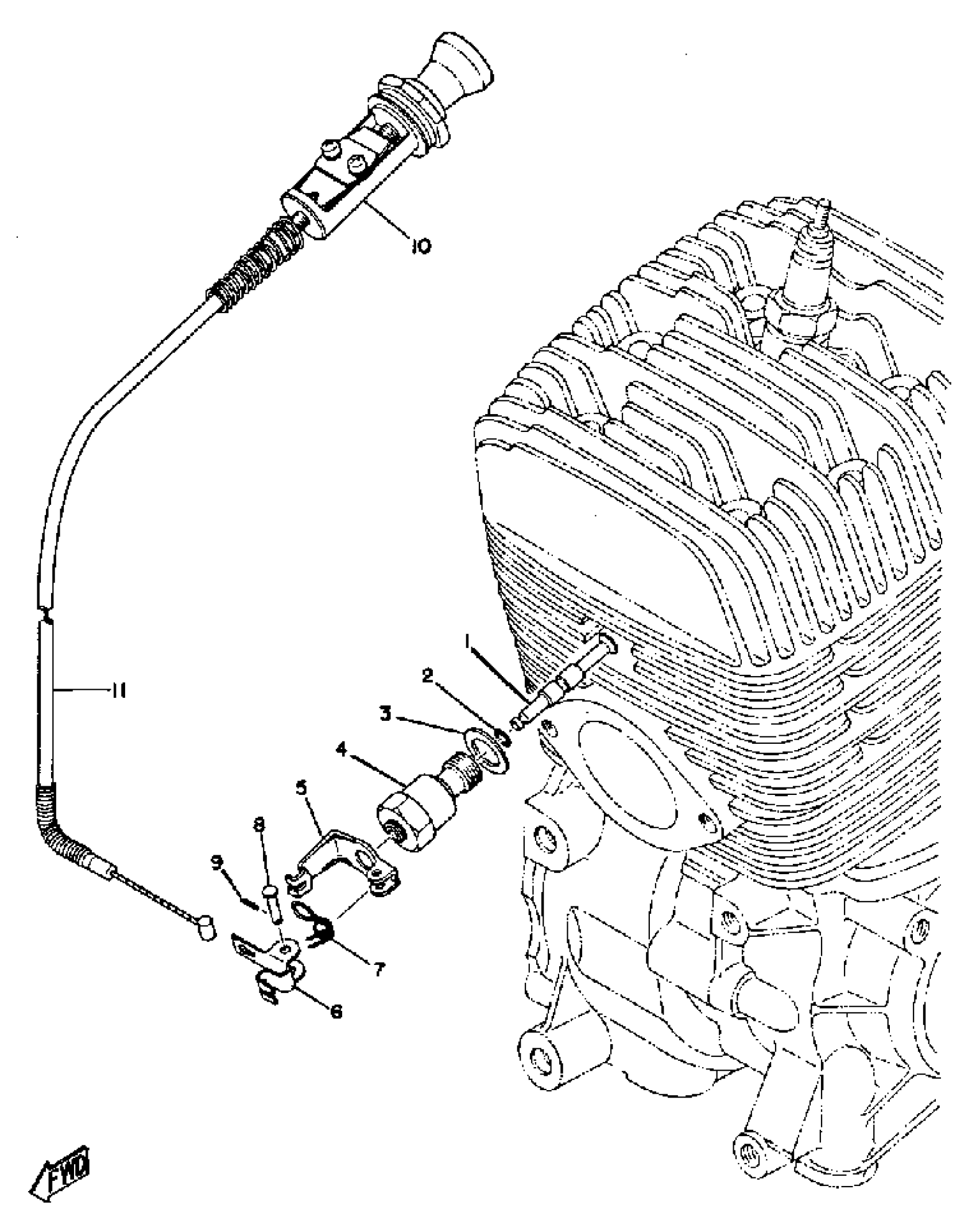

1974 Yamaha SM292F Decompression Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

VALVE, DCOMP

822-12281-00-00

1
Out of stock

2

O-RING (210)

93210-04092-00

1

$2.88

In stock

3

GASKET

812-11198-00-00

1

$6.46

In stock

4

BRACKET, DCOMP

822-12283-00-00

1
Out of stock

5

HOLDER, CABLE

812-12273-00-00

1
Out of stock

6

LEVER, DCOMP

275-12282-01-00

1
Out of stock

7

SPRING, TORSION

90508-10183-00

1
Out of stock

8

PIN, CLEVIS

90240-03002-00

1
Out of stock

9

PIN, COTTER

91490-16020-00

1

$6.23

In stock

10

DCOMP SWITCH ASSEMBLY

839-12270-00-00

1
Out of stock

11

CABLE, DCOMP

(839-12292-00-00)

1
Out of stock
