1973 Yamaha SM292 Track Drive Diagram

← All diagrams

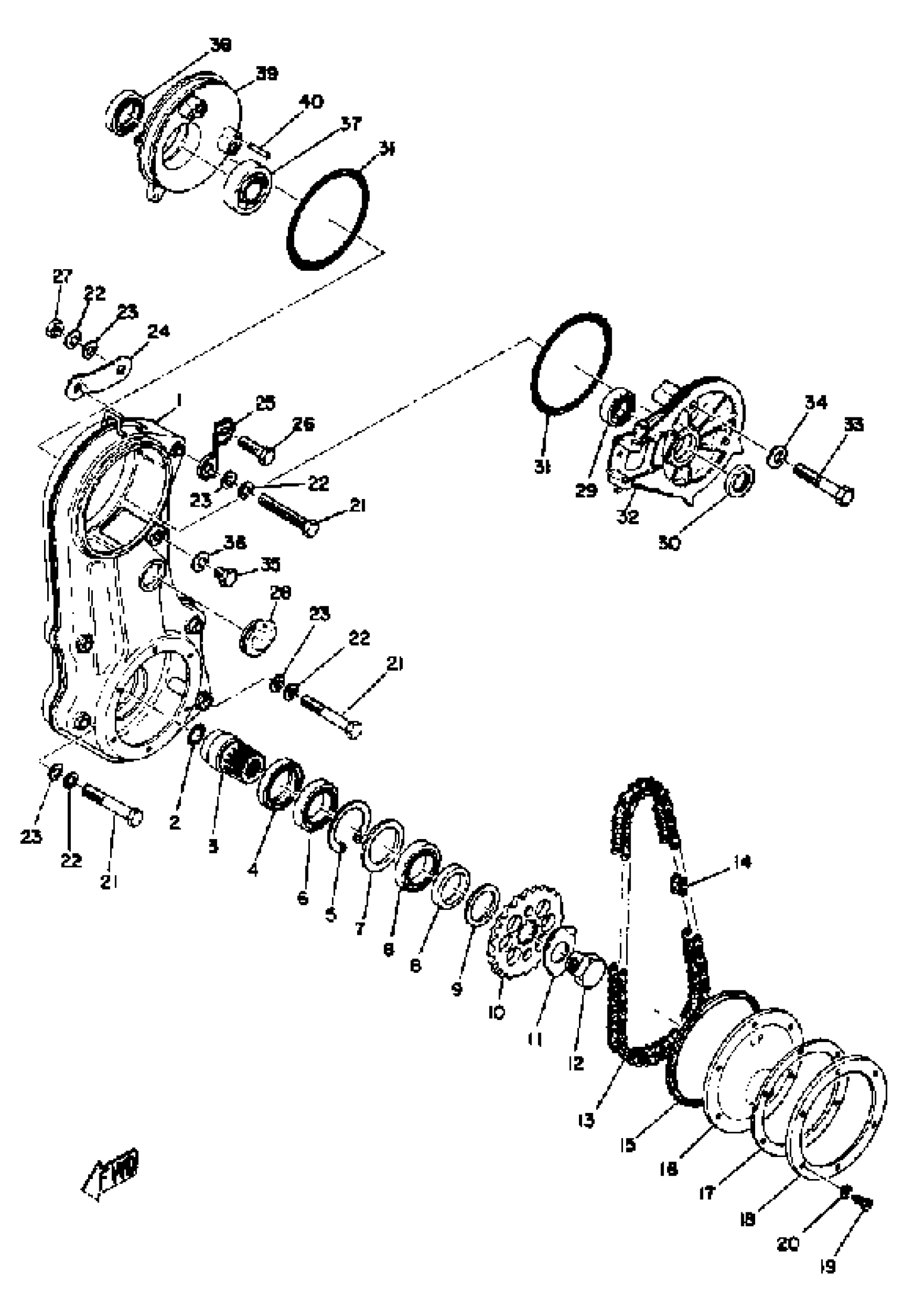

Find the part on the Track Drive diagram for your 1973 Yamaha SM292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SM292 Track Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TOOL

UNA-VAILA-BL-EI

1
Out of stock

2

O-RING (437)

93210-24235-00

1

$5.72

In stock

3

TOOL

UNA-VAILA-BL-EI

1
Out of stock

4

OIL SEAL, SD-TYPE

93102-40080-00

1
Out of stock

5

CIRCLIP, R-TYPE

93420-55028-00

1
Out of stock

6

BEARING

93306-90702-00

1
Out of stock

7

SPACER

90560-35050-00

1
Out of stock

8

COLLAR

90387-35206-00

1
Out of stock

9

WASHER, PLATE(1YW)

90201-352L0-00

—

$4.98

In stock

10

SPROCKET, CHN DRVN

(812-47548-40-00)

1
Out of stock

10

SPROCKET, CHN DRVN

(812-47548-50-00)

1
Out of stock

10

SPROCKET, CHN DRVN

(812-47548-60-00)

1
Out of stock

11

WASHER, LOCK

90215-24029-00

1
Out of stock

12

BOLT

90109-24203-00

1
Out of stock

13

CHAIN

94510-40066-00

1
Out of stock

13

CHAIN

(94510-40068-00)

1
Out of stock

14

JOINT CHAIN

(94610-40001-00)

1
Out of stock

15

RING, HOUSING

(806-47558-00-00)

1
Out of stock

16

CAP, HOUSING

(821-47543-00-00)

1
Out of stock

17

GASKET

821-47544-00-00

1
Out of stock

18

PLATE

(821-47591-00-00)

1
Out of stock

19

SCREW

90143-05004-00

—

$2.20

In stock

20

WASHER, SEAL

90210-05005-00

1
Out of stock

21

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

23

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

24

STAY 1

(841-47565-00-00)

1
Out of stock

25

STAY 2

(841-47566-00-00)

1
Out of stock

26

BOLT

97013-08035-00

—

$4.80

In stock

27

NUT(6L2)

95333-08600-00

—

$3.20

In stock

28

CAP 2

(810-47559-00-00)

1
Out of stock

29

—

$31.64

In stock

30

OIL SEAL (22X32X5-818)

93102-22087-00

—

$10.68

In stock

31

UNAVAILABLE IN PRICE BOOK

93211-12109-00

1
Out of stock

32

HOUSING, SEC SHAFT

(818-47561-00-00)

1
Out of stock

33

BOLT (663)

97013-08060-00

—

$3.25

In stock

34

WASHER (821)

90210-08002-00

—

$5.68

In stock

35

BOLT(8X2)

90101-08344-00

—

$1.12

In stock

36

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

37

BRG,R-B 6304 52MM 144G NT

93306-30407-00

—

$58.51

In stock

38

OIL SEAL (30X47X7-810)

93102-30083-00

—

$11.08

In stock

39

HOUSING, SEC SHAFT

(814-47562-00-00)

1
Out of stock

40

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock
