1973 Yamaha SM292 Steering Gate Diagram

← All diagrams

Find the part on the Steering Gate diagram for your 1973 Yamaha SM292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

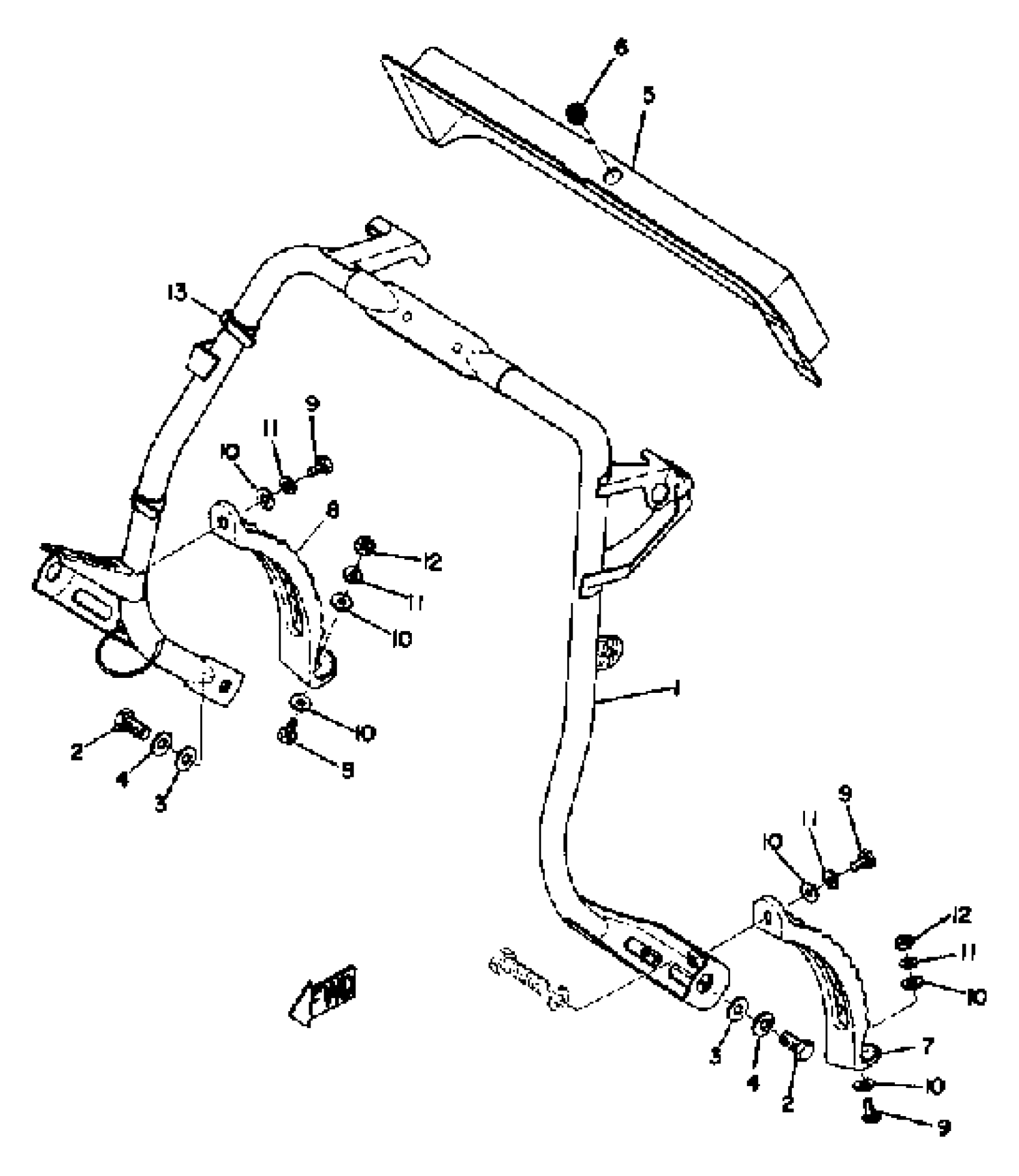

1973 Yamaha SM292 Steering Gate Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING GATE

(853-23870-00-00)

1
Out of stock

2

BOLT, HEXAGON

97027-08018-00

—

$1.62

In stock

3

UNAVAILABLE IN PRICE BOOK

90125-08066-00

1
Out of stock

4

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

5

PANEL, INSTRUMENT

(853-77711-00-00)

1
Out of stock

6

GROMMET (462)

90480-13018-00

1

$6.25

In stock

7

FOOTREST 1

(841-27411-00-00)

1
Out of stock

8

FOOTREST 2

(841-27421-00-00)

1
Out of stock

9

BOLT (661)

97013-06012-00

1

$4.71

In stock

10

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

13

BAND, SWITCH CORD

437-83936-11-00

1

$3.20

In stock
