1973 Yamaha SM292 Frame Diagram

← All diagrams

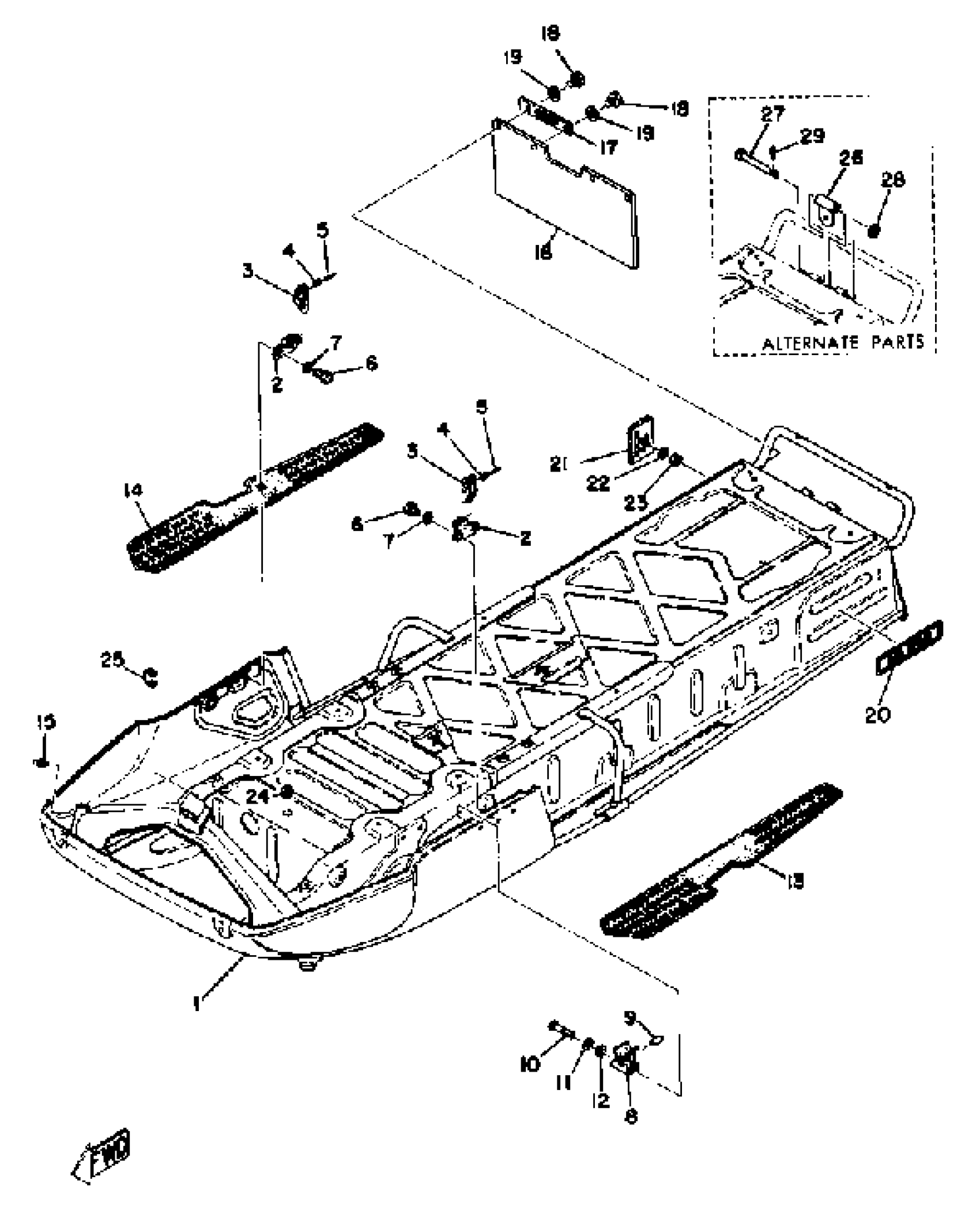

Find the part on the Frame diagram for your 1973 Yamaha SM292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SM292 Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LATCH ASSEMBLY

806-77170-00-00

1
Out of stock

1

FRAME

(853-21910-00-00)

1
Out of stock

2

BODY, LATCH 2

(806-77172-00-00)

1
Out of stock

3

CLAMP 3

(806-77137-00-00)

1
Out of stock

4

. SPRING, TORSION

90508-10012-00

1
Out of stock

5

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

6

BOLT, HEXAGON

97313-05016-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

CLAMP

90464-09006-00

1
Out of stock

9

STOPPER

821-77188-01-00

1
Out of stock

10

BOLT, HEXAGON

97017-06045-00

1
Out of stock

11

WASHER, SPRING

92907-06100-00

1
Out of stock

12

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

13

COVER, FOOTREST

878-27413-00-00

1
Out of stock

14

COVER, FOOTREST

878-27423-00-00

1
Out of stock

15

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

16

FLAP

(802-77595-02-00)

1
Out of stock

17

PLATE, FLAP 1

(802-77593-00-00)

1
Out of stock

18

BOLT (661)

97013-06012-00

—

$4.71

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

EMBLEM 4

(853-77354-00-00)

1
Out of stock

21

REFLECTOR, REAR 1

(821-85131-00-00)

1
Out of stock

22

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

23

NUT, NYLON

95707-06300-00

—

$3.20

In stock

24

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

25

BAND

(841-82591-00-00)

1
Out of stock

26

BRACKET, HITCH 1

802-77591-00-00

1
Out of stock

27

PIN, CLEVIS

(91701-08102-00)

1
Out of stock

28

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

29

PIN, COTTER

91490-25020-00

—

$2.94

In stock
