1973 Yamaha SM292 Flywheel Magneto Diagram

← All diagrams

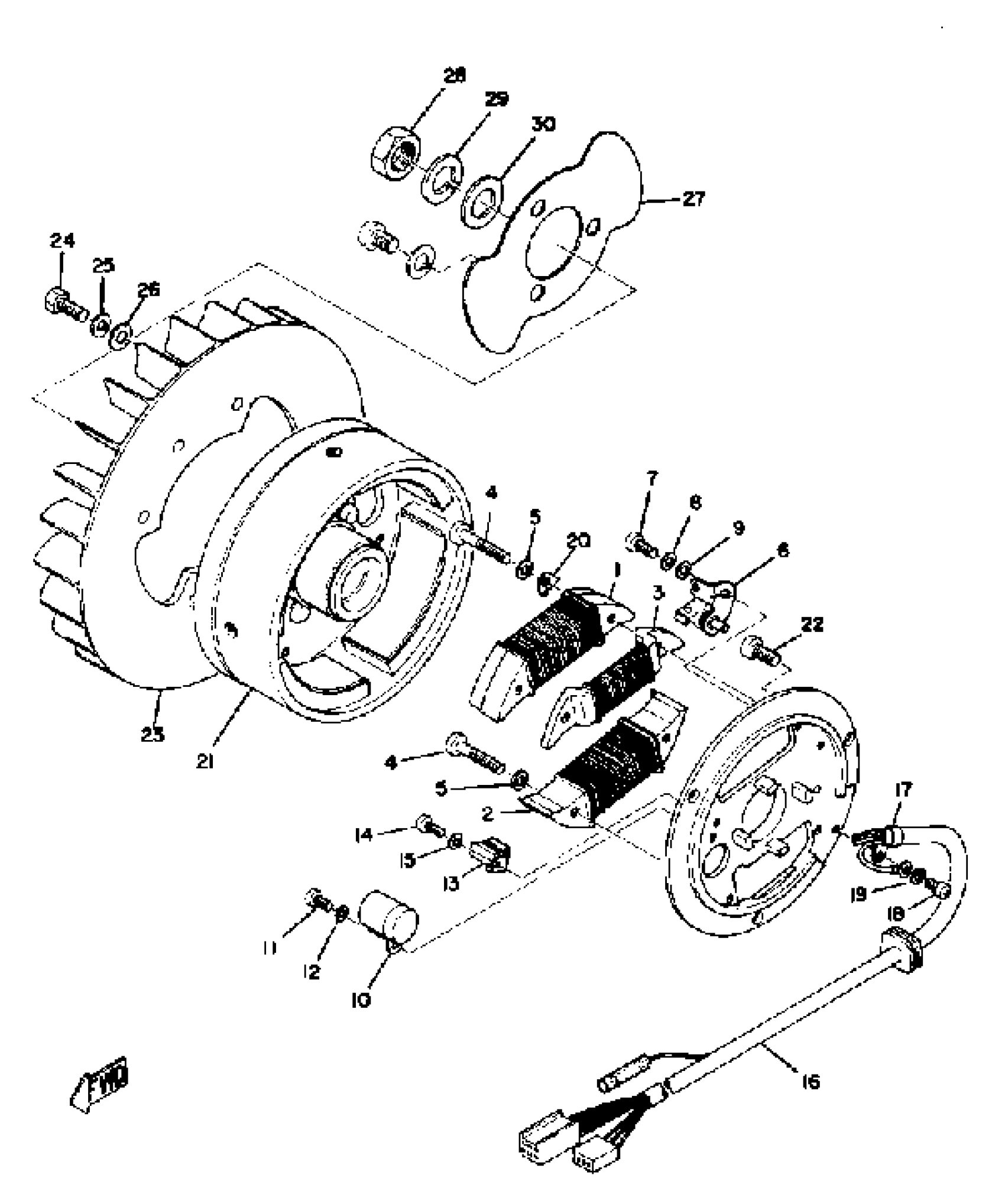

Find the part on the Flywheel Magneto diagram for your 1973 Yamaha SM292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SM292 Flywheel Magneto Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. COIL, SOURCE

839-81312-20-00

1
Out of stock

1

TOOL

UNA-VAILA-BL-EI

1
Out of stock

2

COIL, LIGHTING 1

(839-81313-20-00)

1
Out of stock

3

COIL, LIGHTING 2

(839-81314-20-00)

1
Out of stock

4

. SCREW, PAN HEAD

802-81345-20-00

1
Out of stock

5

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

6

. CONTACT BRKR ASSEMBLY

806-81321-20-00

1

$27.71

In stock

7

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

8

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

9

YBS66-4 WASHER, PLAIN

92990-04200-00

1

$1.10

In stock

10

. CONDENSER 1

802-81325-90-00

1
Out of stock

11

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

12

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

13

. LUBRICATOR

116-81331-20-00

1
Out of stock

14

SCREW, PAN HEAD

110-81346-21-00

1

$4.32

In stock

15

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

16

LEAD WIRE ASSEMBLY

(839-81315-21-00)

1
Out of stock

17

CLAMP, LEAD

104-81328-20-00

—

$6.31

In stock

18

SCREW, PAN HEAD (713)

98580-04008-00

—

$4.54

In stock

19

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

20

PLATE, TIMING

(812-81332-20-00)

1
Out of stock

21

ROTOR ASSEMBLY

(860-81350-20-00)

1
Out of stock

22

SCREW, PAN

98507-06014-00

—

$6.18

In stock

23

FAN

(812-12611-00-00)

1
Out of stock

24

BOLT

(90101-06006-00)

1
Out of stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

WASHER, PLATE

90201-06M08-00

1
Out of stock

27

COVER, HOLE

(812-81362-00-00)

1
Out of stock

28

NUT

90170-16425-00

—
Out of stock

29

WASHER(JN5)

92907-16100-00

—

$12.08

In stock

30

WASHER, PLATE (32N)

90201-163G6-00

—

$6.98

In stock
