1973 Yamaha SM292 Carburetor Diagram

← All diagrams

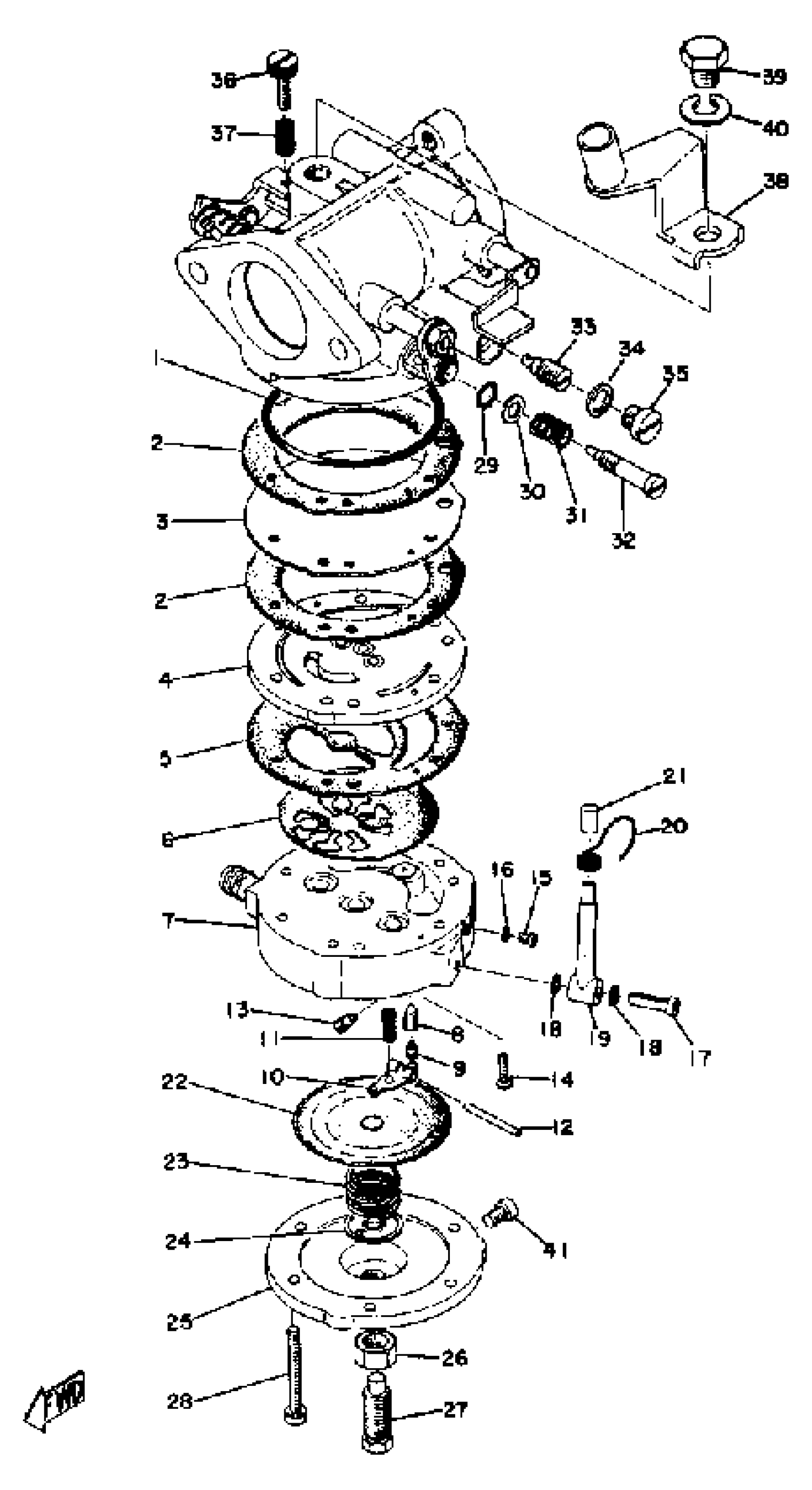

Find the part on the Carburetor diagram for your 1973 Yamaha SM292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SM292 Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. O-RING

806-14562-00-00

1
Out of stock

1

CARBURETOR ASSEMBLY 1

(867-14501-00-00)

1
Out of stock

2

GASKET

838-14536-09-00

1

$11.29

In stock

3

. DIAPHRAGM, PUMP

834-14541-00-00

1
Out of stock

3

JET #65

(853-14515-65-00)

1
Out of stock

4

BODY, PUMP 1

(838-14542-00-00)

1
Out of stock

5

GASKET

834-14553-09-00

1
Out of stock

6

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

7

BODY, PUMP 2

(853-14543-01-00)

1
Out of stock

8

VALVE

838-14546-00-00

1

$39.18

In stock

9

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

10

ARM, FLOAT

(810-14547-00-00)

1
Out of stock

11

. SPRING

810-14556-00-00

1
Out of stock

12

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

14

SCREW, FLAT

98707-03008-00

1

$5.62

In stock

15

SCREW

(806-14567-01-00)

1
Out of stock

16

. WASHER

810-14597-00-00

1
Out of stock

17

. SCREW

8A1-14592-00-00

1
Out of stock

18

. WASHER

806-14559-00-00

1
Out of stock

19

. PIPE, AIRVENT

810-14197-02-00

1
Out of stock

20

CLIP

(824-14159-00-00)

1
Out of stock

21

. CAP, BLIND

810-24462-01-00

1
Out of stock

22

DIAPHRAGM

810-14545-00-00

—
Out of stock

23

SPRING

(810-14555-00-00)

1
Out of stock

24

SEAT, SPRING

(810-14136-00-00)

1
Out of stock

25

BODY, PUMP 3

(810-14544-00-00)

1
Out of stock

26

. NUT

95380-08700-00

1

$3.07

In stock

27

. SCREW, STOP

824-14565-00-00

1
Out of stock

28

SCREW

(824-14567-00-00)

1
Out of stock

29

. O-RING

824-14563-00-00

1
Out of stock

30

. WASHER

838-14596-00-00

1
Out of stock

31

SPRING, AJST SCREW

(824-14531-00-00)

1
Out of stock

32

SCREW, ADJUST

(853-14522-00-00)

1
Out of stock

33

. JET, MAIN #125 (125)

845-14516-25-00

1
Out of stock

34

WASHER

(810-14558-00-00)

1
Out of stock

35

SCREW

(845-14567-00-00)

1
Out of stock

36

SCREW, STOP

(810-14523-00-00)

1
Out of stock

37

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

38

BRACKET, THROTTLE

(813-14571-00-00)

1
Out of stock

39

BOLT(8X2)

90101-08344-00

—

$1.12

In stock

40

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

41

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock
