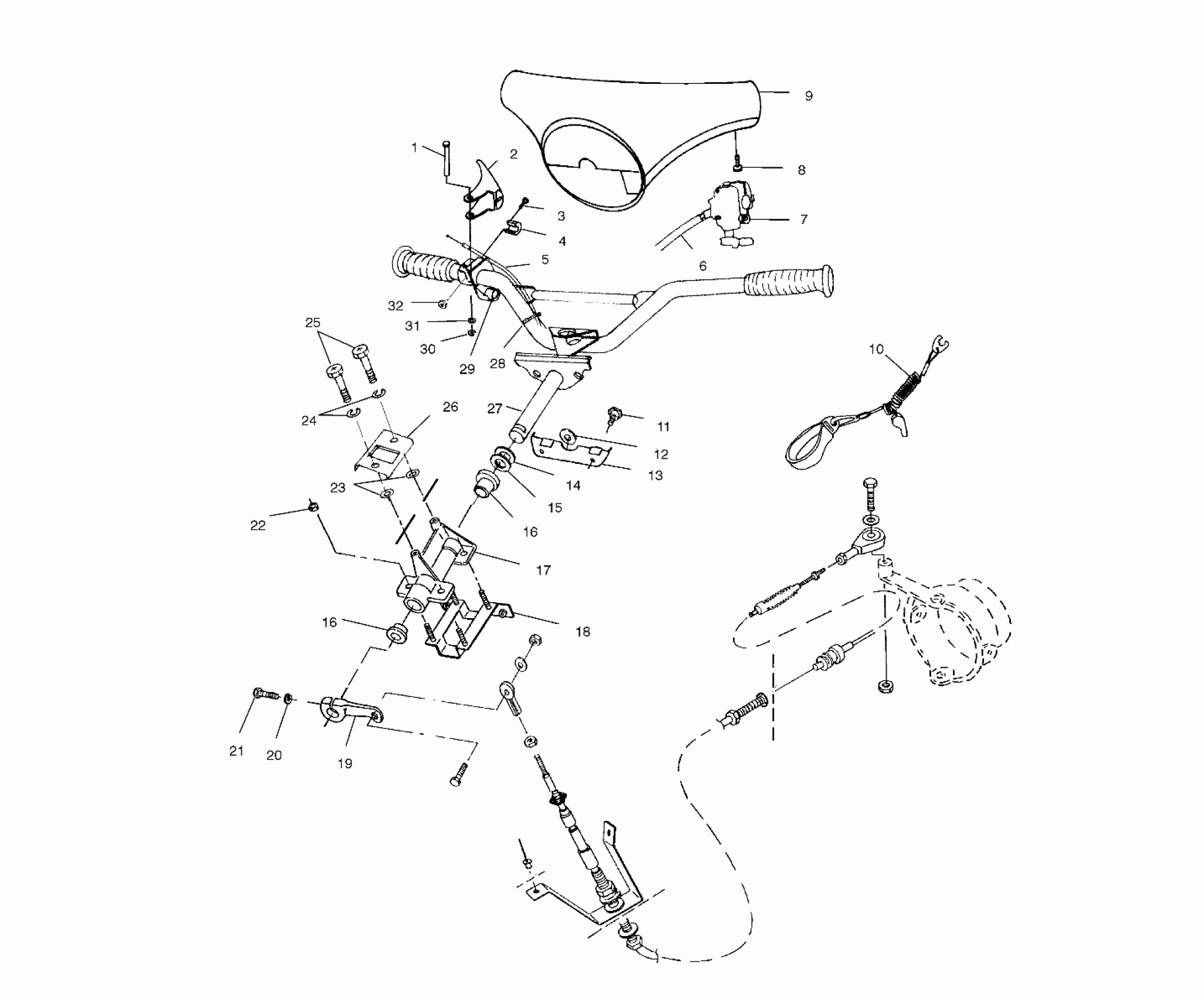

Polaris SLTH - B994573 STEERING - B994573 (4951395139a013) Diagram

#

Description
Price

1

Pin, Retaining

7661628

Unavailable

2

LEVER,THROTTLE

5432372

Unavailable

3

SCREW,SS.,(10)

7517520

$2.38

4

CLAMP,SPLIT-THROTTLE BLK.

5432728

Unavailable

5

CABLE,THROTTLE

7080577

Unavailable

6

CABLE,CHOKE,1432MM

7080755

Unavailable

7

SW,ST/SP/BG/CK/PEB

4110222

Unavailable

8

SCREW, SS.(10)

7512047

$1.99

9

PAD-HANDLEBAR,PEARLSTONE

5432791-277

Unavailable

10

LANYARD,W/WHISTLE

7080675

Unavailable

11

BOLT,SHOULDER(10)

7515387

Unavailable

12

GROMMET,CABLE,MFD(SLT)

5411111

Unavailable

13

PLATE,GROMMET

5240334

$9.08

14

WASHER, WAVE(10)

7571624

Unavailable

15

BUSH.(10)

7555875

$7.94

16

BUSHING,STRG.SUPPORT

5431382

Unavailable

16

BUSHING,STRG.SUPPORT

5431382

Unavailable

17

HUB,SPRT.STRG/ANODE.

5131509

Unavailable

18

PLATE, BOLT

1060101

Unavailable

19

ARM,STRNG.,ANODIZED

5131441

$113.99

20

WASHER, LOCK, S.S.(10)

7552610

Unavailable

21

BOLT, S.S.(10)

7515375

$3.81

22

NUT, HEX, S.S.(10)

7542335

Unavailable

23

BUSHING,LATCHPLATE

5333601

$5.79

24

WASHER, LOCK(10)

7552615

Unavailable

25

SCREW, S.S.(10)

7512051

$1.27

26

PLATE-RECEIVER,LATCH,SLT-PRO

5243533

$15.08

27

H'BAR ASM,W/GRIP,BLK,SL

1860125-070

$172.22

28

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

29

BLOCK,SPLIT-THROTTLE

5432729

$9.05

30

RING,RETAIN.EXT.,S.S.(10)

7710426

Unavailable

31

WASHER, FLAT, S.S.(10)

7555840

$3.33

32

NUT, HEX, S.S.(10)

7541931

$5.99
