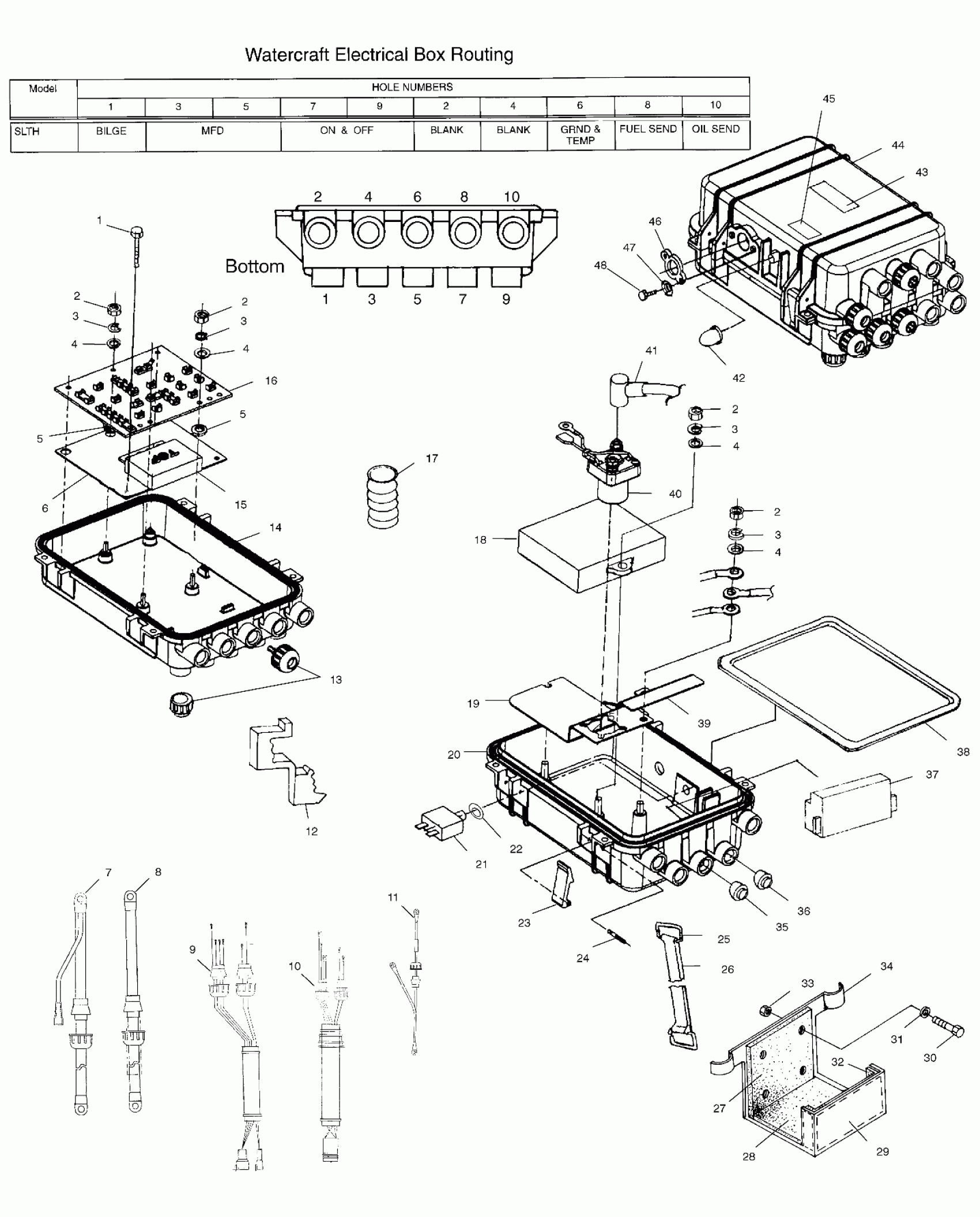

Polaris SLTH - B994573 ELECTRICAL BOX - B994573 (4951395139b011) Diagram

#

Description
Price

1

BOLT, S.S.(10)

7512042

Unavailable

2

NUT, SS.(10)

7547036

$1.59

2

NUT, SS.(10)

7547036

$1.59

2

NUT, SS.(10)

7547036

$1.59

2

NUT, SS.(10)

7547036

$1.59

3

WASHER, LOCK(10)

7552615

Unavailable

3

WASHER, LOCK(10)

7552615

Unavailable

3

WASHER, LOCK(10)

7552615

Unavailable

3

WASHER, LOCK(10)

7552615

Unavailable

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

5

WASHER,RUBBER(10)

7555870

$0.40

5

WASHER,RUBBER(10)

7555870

$0.40

6

PLATE,BTM,E-BOX

5211761

$9.05

7

CABLE,RED,BATT/SOL.,CAP

4010122

Unavailable

8

CABLE,RED,SOL./STRTR,CAP

4010123

Unavailable

9

HARNESS,72 IN.,6 WIRE

2460615

Unavailable

10

HARNESS,WIRE,MFD.

2460654

$91.00

11

HARNESS,WIRE,GND,EL.BOX

2460621

Unavailable

12

T-CLIP(10)

7080471

$3.57

13

CAP,GROMMET,ELEC.BOX

5432502

$2.62

14

BOTTOM,ELEC.BOX Substituted by 2620120

5432483

$102.38

15

REG./RECT/CUTOFF,LR23 Substituted by 4060192

4060171

Unavailable

16

TERM.BOARD ASM,MFD

2434014

Unavailable

17

CONDUIT,CONVOL. Substituted by 4010051-15

4010051-05

Unavailable

18

Controller, Ignition (See Magneto Pg. C5, Ref. 10)

----

Unavailable

19

PLATE,TOP,E-BOX

5211760

$8.17

20

TOP,ELECT.BOX Substituted by 2620120

5432484

$102.38

21

CKT.BREAKER,15A.(WATER.)

2434011

$20.48

22

O-Ring

5411491

$1.03

23

LATCH,ELEC.BOX Substituted by 2620120

5432503

$102.38

24

PIN,LATCH,ELEC.BOX

5333544

$10.46

25

HOOK,'D',SST/SS,(10)

5224472

Unavailable

26

STRAP-BATTERY

5430621

Unavailable

27

PAD,R.E-BOX BRKT.

5830139

$1.60

28

PAD,BTM.E-BOX BRKT.

5830140

$1.14

29

PAD,FR.E-BOX BRKT.

5830137

$1.03

30

BOLT, SS.(10)

7512045

$4.99

31

WASHER, FLAT, S.S.(10)

7555839

Unavailable

32

PAD,SIDE,E-BOX BRKT.

5830138

Unavailable

33

NUT, HEX, S.S.(10)

7541931

$5.99

34

BRKT,E-BOX,BULKHEAD MT.

5242217

$18.19

35

Grommet

5411235

Unavailable

36

GROMMET,1 HOLE,LARGE

5411213

Unavailable

37

Coil, Ignition (See Magneto Pg. C5, Ref. 11)

----

Unavailable

38

SEAL, E-BOX Substituted by 2620120

5432569

Unavailable

39

BRKT,COIL/SOLENOID,.078 THK

5243538

Unavailable

40

Switch, Magneto (See Magneto Pg. C5, Ref. 12)

----

Unavailable

41

INSULATOR-CABLE

5410346

$7.73

42

BOOT,THREADED,RED

7080461

$13.99

43

DECAL,WARN,HI.VOLT.

7073713

Unavailable

44

BOXTOP ASM,ELEC,PLASTIC Substituted by 2632136 (Incl. 14,20,23,24,38)

2620120

$102.38

45

DECAL,ELECT.BOX RESET

7073734

Unavailable

46

PLATE,STATOR,1 HOLE

5432574

$6.59

47

WASHER(10)

7555836

$3.99

48

BOLT,SS,(10)

7515113

Unavailable
