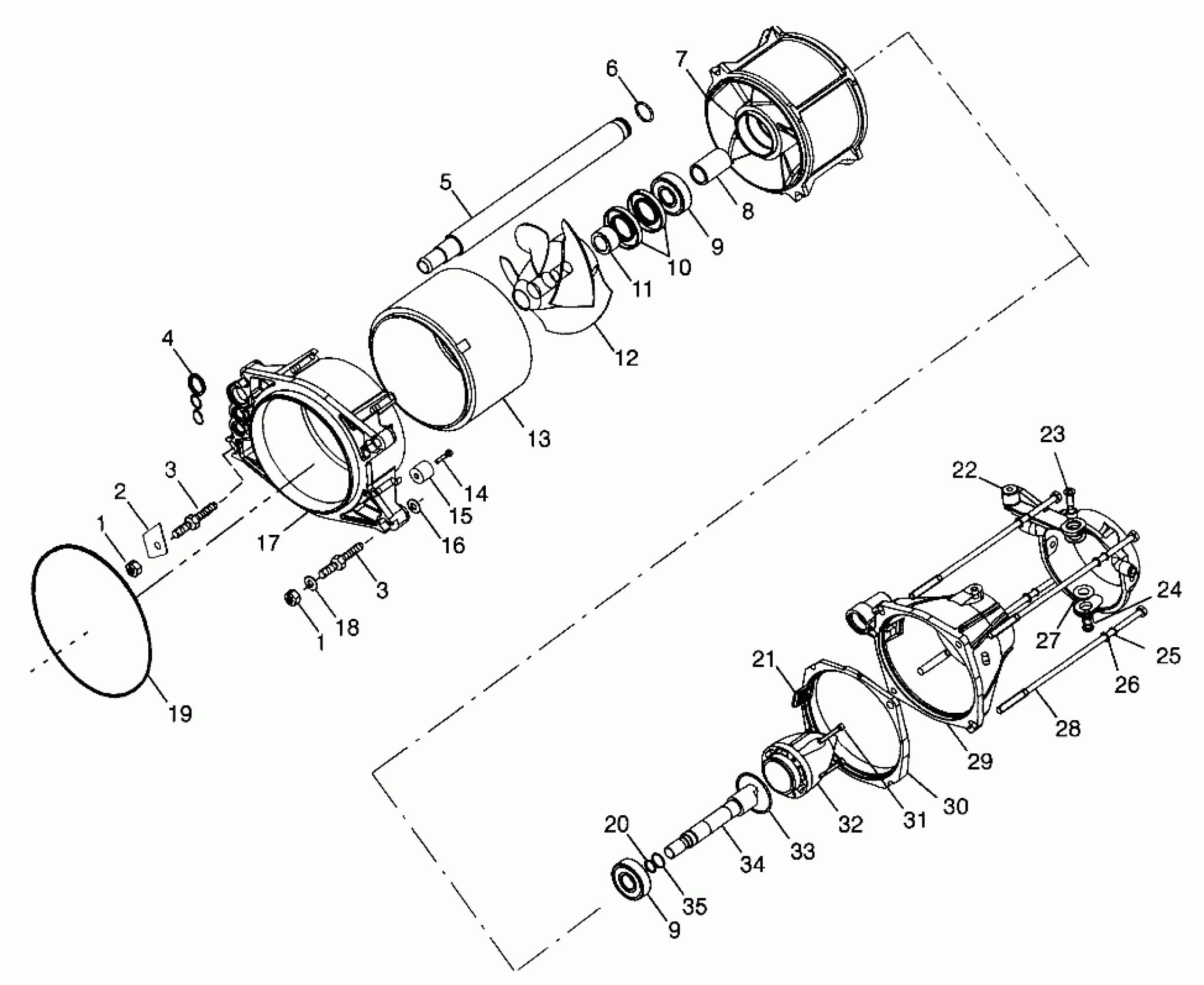

Polaris SLTH - B984573 PROPULSION - I984573 (4946554655b003) Diagram

#

Description
Price

1

NUT,HEX,S.S.(10)

7542455

Unavailable

1

NUT,HEX,S.S.(10)

7542455

Unavailable

2

BRKT,STRG.CABLE

5241741

Unavailable

3

STUD,MTG,PUMP

5020877

$4.37

3

STUD,MTG,PUMP

5020877

$4.37

4

SEAL,WATER PIPE

5411107

Unavailable

5

PIPE,WATER,ENG.(X-PUMP)

5432269

$30.71

6

O RING,(10)

5410735

$0.79

7

STATOR,PUMP

5130983

Unavailable

8

Spacer

5010294

Unavailable

9

Bearing

3514008

Unavailable

9

Bearing

3514008

Unavailable

10

SEAL,BRG,STATOR

3610043

Unavailable

11

Spacer, Impeller

5010295

Unavailable

12

IMPELLER,12-17DEG,SWIRL,3BLADE

5131457

$374.99

13

EXTENSION,PUMP

5131196

$204.99

14

SCREW(10)

7522019

$0.95

15

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

16

WASHER, FLAT(10)

7555841

Unavailable

17

HOUSING,PUMP,W/RING Substituted by 2873081

5131815

Unavailable

18

Washer

7555966

$2.62

19

O-RING,PUMP HSG/HULL

5410652

Unavailable

20

O-RING,(10)

5410817

Unavailable

21

SCREEN,ENG.INLET

5431523

Unavailable

22

NOZZLE,STRG,SLT

5130999

Unavailable

23

BOLT, S.S.(10)

7515366

Unavailable

24

Collar

5130938

Unavailable

25

WASHER, LOCK, S.S.(10)

7552610

Unavailable

26

WASHER, FLAT, S.S.,(10)

7555835

$0.69

27

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

28

Bolt

7515389

Unavailable

29

NOZZLE,STAT.,0X4 WEDGE

5131569

Unavailable

30

WEDGE,PUMP,(0DEGX4DEG) Substituted by 5432841

5630662

Unavailable

31

SCREW(10)

7512064

Unavailable

32

Cone, Pump

5431519

Unavailable

33

O-RING(10)

5410819

$0.79

34

SHAFT, STUB Substituted by 5132674

5020697

$47.62

35

O-RING(10)

5410818

$0.79
