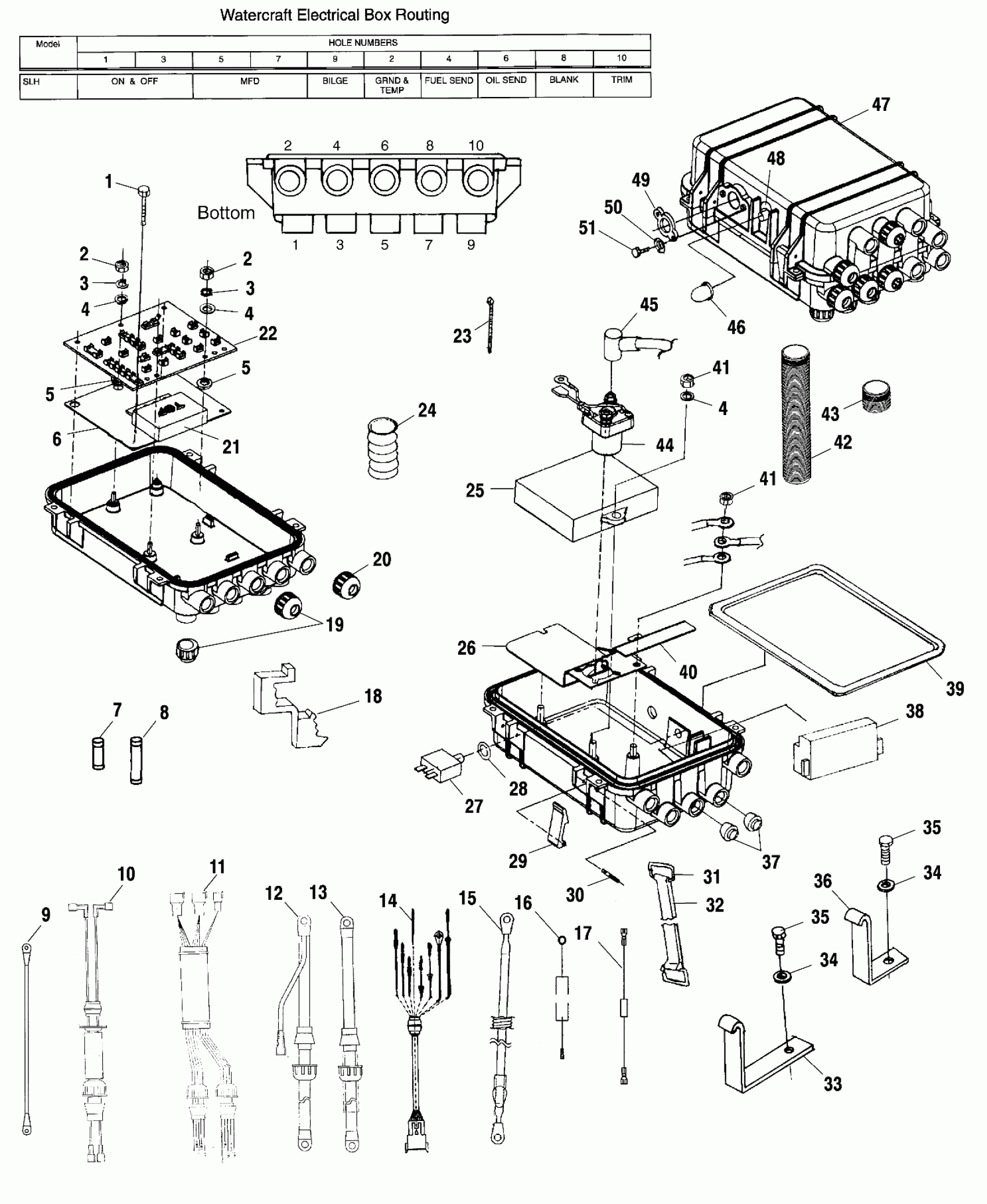

Polaris SLH - W014697D ELECTRICAL BOX - W014697D (4964806480B005) Diagram

#

Description
Price

1

SCREW,S.S.(10)

7512072

$0.40

2

NUT, SS.(10)

7547036

$1.59

2

NUT, SS.(10)

7547036

$1.59

3

WASHER, LOCK(10)

7552615

Unavailable

3

WASHER, LOCK(10)

7552615

Unavailable

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

5

WASHER,RUBBER(10)

7555870

$0.40

5

WASHER,RUBBER(10)

7555870

$0.40

6

PLATE,BTM,E-BOX

5211761

$9.05

7

FUSE,(10)

4060111

Unavailable

8

FUSE,3AMP,AGW [No Longer Available]

4060161

Unavailable

9

HARNESS,WIRE,GRND,JUMPER

2460831

$4.92

10

Harness, Trim (See Trim Package Pg. B2, Ref. 2)

----

Unavailable

11

HARNESS,60 IN,10 WIRE

2460675

Unavailable

12

CABLE,RED,BATT/SOL.,CAP

4010122

Unavailable

13

CABLE,RED,SOL./STRTR,CAP

4010123

Unavailable

14

HARNESS-8 WIRE STATOR,2CYL

2460718

Unavailable

15

CABLE,GND.BATT/ENG.

4010118

Unavailable

16

HARNESS-DIODE

2460931

Unavailable

17

HARNESS-JUMPER,PWC

2460928

$13.89

18

T-CLIP(10)

7080471

$3.57

19

CAP,GROMMET,ELEC.BOX

5432502

$2.62

20

PLUG,SEALING,WIRE

4010261

$1.19

21

REGULATOR-RECT/CUTOFF-LR31-2

4010302

Unavailable

22

TERM.BOARD ASM,MFD

2434014

Unavailable

23

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

24

CONDUIT,CONVOL. Substituted by 4010051-15

4010051-05

Unavailable

25

Controller, Ignition (See Magneto Pg. C3, Ref. 8)

----

Unavailable

26

PLATE,TOP,E-BOX

5211760

$8.17

27

CKT.BREAKER,15A.(WATER.)

2434011

$20.48

28

O-Ring

5411491

$1.03

29

LATCH,ELEC.BOX Substituted by 2620120

5432503

$102.38

30

PIN,LATCH,ELEC.BOX

5333544

$10.46

31

HOOK,'D',SST/SS,(10)

5224472

Unavailable

32

STRAP,RUBBER

5410853

$9.84

33

BRKT,BATT.STRAP,IN-BD

5242994

$9.84

34

WASHER, LOCK(10)

7552613

Unavailable

34

WASHER, LOCK(10)

7552613

Unavailable

35

BOLT(10)

7512043

$0.32

35

BOLT(10)

7512043

$0.32

36

BRKT,BATT.STRAP,OUT-BD

5242995

$9.05

37

Grommet

5411235

Unavailable

38

Coil, Ignition, Twin (See Magneto Pg. C3, Ref. 10)

----

Unavailable

39

SEAL, E-BOX Substituted by 2620120

5432569

Unavailable

40

BRKT,COIL/SOLENOID

5244404

Unavailable

41

NUT,NYLOK,SS

7547061

$0.56

41

NUT,NYLOK,SS

7547061

$0.56

42

CONDUIT,FLEX,1.250ID Substituted by 5521287-63

5521287-53

Unavailable

43

CONDUIT,WIRE,2.5CM

5521286-2.5

Unavailable

44

Switch, Magneto (See Magneto Pg. C3, Ref. 9)

----

Unavailable

45

INSULATOR-CABLE

5410346

$7.73

46

BOOT,THREADED,RED

7080461

$13.99

47

ELECTRICAL BOX,PLASTIC,ASM. (Incl. 29,30,39)

2632136

$102.38

48

DECAL-"RESET ELEC SYSTEM"

7077691

Unavailable

49

PLATE,STATOR,1 HOLE

5432574

$6.59

50

WASHER(10)

7555836

$3.99

51

BOLT,SS,(10)

7515113

Unavailable
