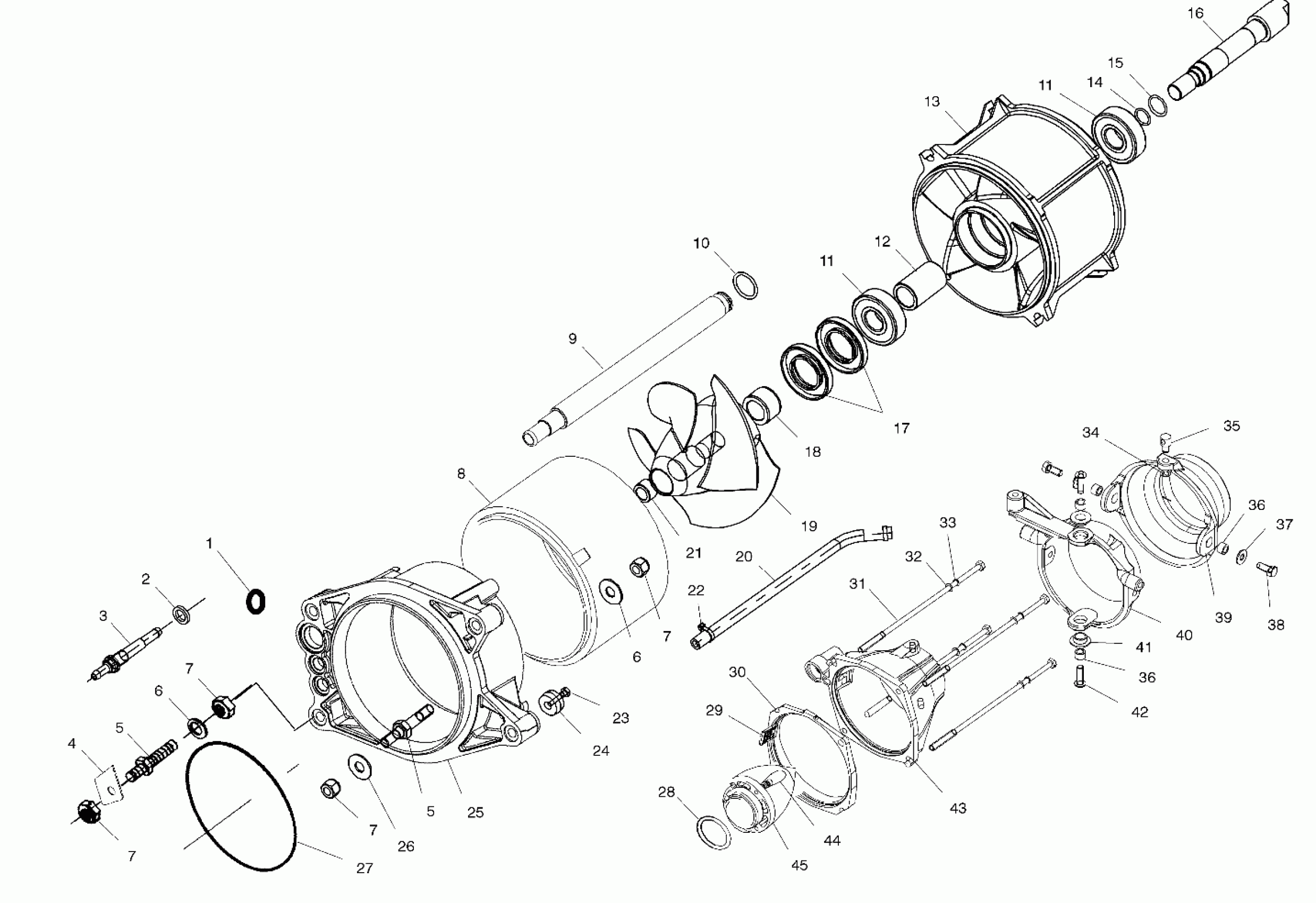

Polaris SLH - W004673D PROPULSION - W004673D (4955755575B004) Diagram

#

Description
Price

1

SEAL,WATER PIPE

5411107

Unavailable

2

SEAL,SIPHON TUBE

5411016

Unavailable

3

PIPE,WATER BILGE

5020835

$49.59

4

BRKT,STRG.CABLE

5241741

Unavailable

5

STUD,MOUNT,PUMP,LONG INT.

5132111

Unavailable

5

STUD,MOUNT,PUMP,LONG INT.

5132111

Unavailable

6

WASHER,PUMPSTUD,SEAL

7555941

$7.14

6

WASHER,PUMPSTUD,SEAL

7555941

$7.14

7

NUT,HEX,S.S.(10)

7542455

Unavailable

7

NUT,HEX,S.S.(10)

7542455

Unavailable

7

NUT,HEX,S.S.(10)

7542455

Unavailable

7

NUT,HEX,S.S.(10)

7542455

Unavailable

8

EXTENSION,PUMP

5131196

$204.99

9

PIPE,WATER,ENG.(X-PUMP)

5432269

$30.71

10

O RING,(10)

5410735

$0.79

11

Bearing

3514008

Unavailable

11

Bearing

3514008

Unavailable

12

Spacer

5010294

Unavailable

13

STATOR,PUMP

5130983

Unavailable

14

O-RING,(10)

5410817

Unavailable

15

O-RING(10)

5410818

$0.79

16

SHAFT, STUB Substituted by 5132674

5020697

$47.62

17

SEAL,BRG,STATOR

3610043

Unavailable

18

Spacer, Impeller

5010295

Unavailable

19

IMPELLER,NUJET,4.7

5132372

$318.63

20

HOSE,WATER

8450054-100

Unavailable

21

SEAL-IMPELLER/SHAFT

5411644

Unavailable

22

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

23

SCREW(10)

7522019

$0.95

24

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

25

HSG,PUMP,W/O RING,INT STUD

5131573

Unavailable

26

Washer

7555966

$2.62

27

O-RING,PUMP HSG/HULL

5410652

Unavailable

28

O-RING(10)

5410819

$0.79

29

SCREEN,ENG.INLET

5431523

Unavailable

30

WEDGE,PUMP,0X4,MOLDED

5432841

Unavailable

31

Bolt

7515389

Unavailable

32

WASHER, FLAT, S.S.,(10)

7555835

$0.69

33

WASHER, LOCK, S.S.(10)

7552610

Unavailable

34

WASHER(10)

7555866

Unavailable

35

Swivel, Rod End (See Trim Package Pg. B5, Ref. 15)

----

Unavailable

36

Collar

5130938

Unavailable

36

Collar

5130938

Unavailable

37

WASHER,FLAT,S.S.(10)

7555874

$2.38

38

BOLT, S.S.(10)

7515361

$2.19

39

NOZZLE,TRIM

5431765

Unavailable

40

NOZZLE,STRG.REVERSE

5130960

Unavailable

41

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

42

BOLT, S.S.(10)

7515366

Unavailable

43

NOZZLE ASM,0X4 WEDGE

1350038

$204.99

44

Cone, Pump

5431519

Unavailable

45

SCREW(10)

7512064

Unavailable
