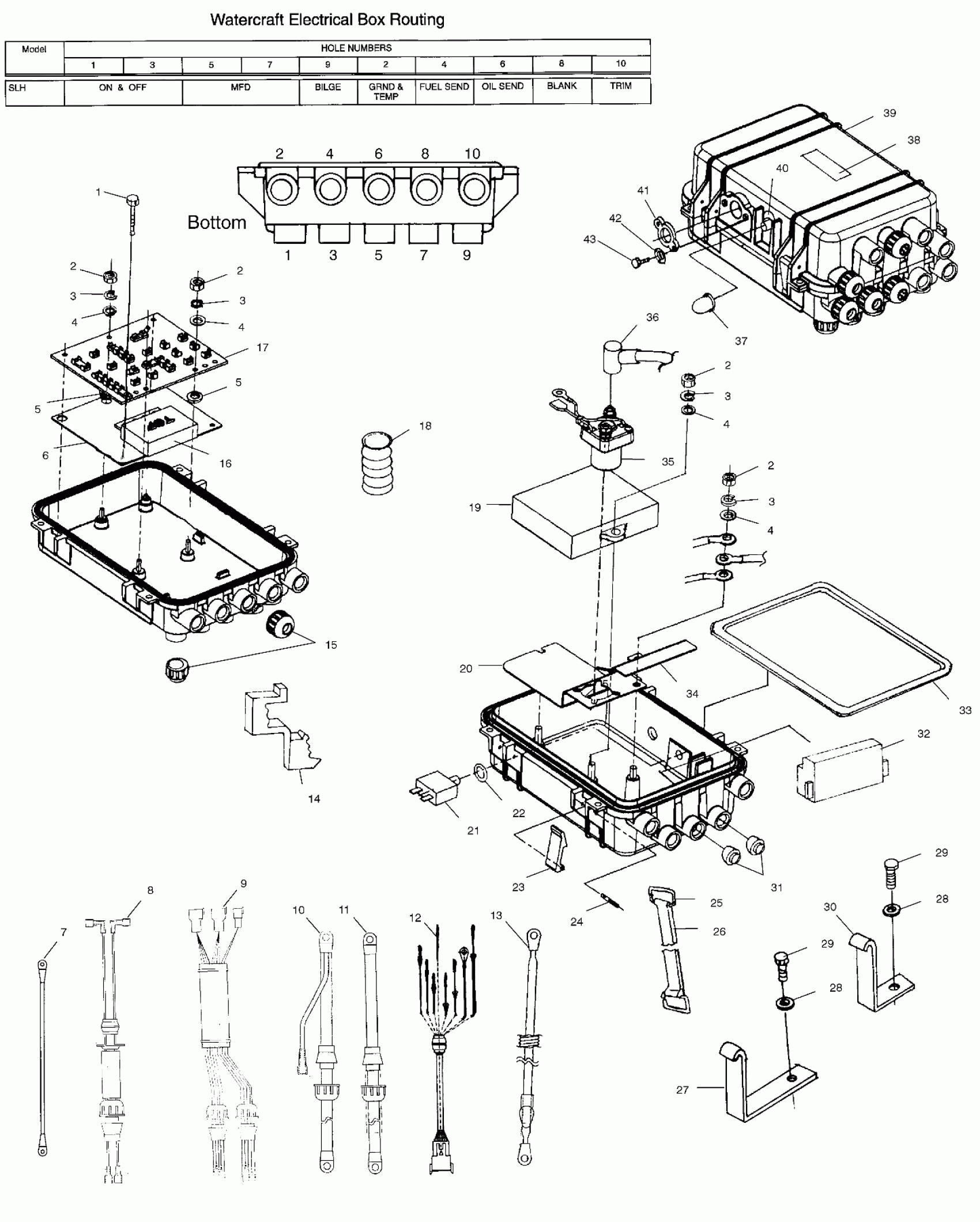

Polaris SLH - W004673D ELECTRICAL BOX - W004673D (4955755575B011) Diagram

#

Description
Price

1

SCREW,S.S.(10)

7512072

$0.40

2

NUT, SS.(10)

7547036

$1.59

2

NUT, SS.(10)

7547036

$1.59

2

NUT, SS.(10)

7547036

$1.59

2

NUT, SS.(10)

7547036

$1.59

3

WASHER, LOCK(10)

7552615

Unavailable

3

WASHER, LOCK(10)

7552615

Unavailable

3

WASHER, LOCK(10)

7552615

Unavailable

3

WASHER, LOCK(10)

7552615

Unavailable

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

4

WASHER, FLAT, S.S.(10)

7555837

$1.59

5

WASHER,RUBBER(10)

7555870

$0.40

5

WASHER,RUBBER(10)

7555870

$0.40

6

PLATE,BTM,E-BOX

5211761

$9.05

7

HARNESS,WIRE,GRND,JUMPER

2460831

$4.92

8

Harness, Trim (See Trim Package Pg. B5, Ref. 3)

----

Unavailable

9

HARNESS,60 IN,10 WIRE

2460675

Unavailable

10

CABLE,RED,BATT/SOL.,CAP

4010122

Unavailable

11

CABLE,RED,SOL./STRTR,CAP

4010123

Unavailable

12

HARNESS-8 WIRE STATOR,2CYL

2460718

Unavailable

13

CABLE,GND.BATT/ENG.

4010118

Unavailable

14

T-CLIP(10)

7080471

$3.57

15

CAP,GROMMET,ELEC.BOX

5432502

$2.62

16

REGULATOR-RECT/CUTOFF-LR31-2

4010302

Unavailable

17

TERM.BOARD ASM,MFD

2434014

Unavailable

18

CONDUIT,CONVOL. Substituted by 4010051-15

4010051-05

Unavailable

19

Controller, Ignition (See Magneto Pg. C6, Ref. 9)

----

Unavailable

20

PLATE,TOP,E-BOX

5211760

$8.17

21

CKT.BREAKER,15A.(WATER.)

2434011

$20.48

22

O-Ring

5411491

$1.03

23

LATCH,ELEC.BOX Substituted by 2620120

5432503

$102.38

24

PIN,LATCH,ELEC.BOX

5333544

$10.46

25

HOOK,'D',SST/SS,(10)

5224472

Unavailable

26

STRAP,RUBBER

5410853

$9.84

27

BRKT,BATT.STRAP,IN-BD

5242994

$9.84

28

WASHER, LOCK(10)

7552613

Unavailable

28

WASHER, LOCK(10)

7552613

Unavailable

29

BOLT(10)

7512043

$0.32

29

BOLT(10)

7512043

$0.32

30

BRKT,BATT.STRAP,OUT-BD

5242995

$9.05

31

Grommet

5411235

Unavailable

32

Coil, Ignition, Twin (See Magneto Pg. C6, Ref. 11)

----

Unavailable

33

SEAL, E-BOX Substituted by 2620120

5432569

Unavailable

34

BRKT,COIL/SOLENOID,.078 THK

5243538

Unavailable

35

Switch, Magneto (See Magneto Pg. C6, Ref. 10)

----

Unavailable

36

INSULATOR-CABLE

5410346

$7.73

37

BOOT,THREADED,RED

7080461

$13.99

38

DECAL,WARN,HI.VOLT.

7073713

Unavailable

39

ELECTRICAL BOX,PLASTIC,ASM. (Incl. 23,24,33)

2632136

$102.38

40

DECAL-"RESET ELEC SYSTEM"

7077691

Unavailable

41

PLATE,STATOR,1 HOLE

5432574

$6.59

42

WASHER(10)

7555836

$3.99

43

BOLT,SS,(10)

7515113

Unavailable
