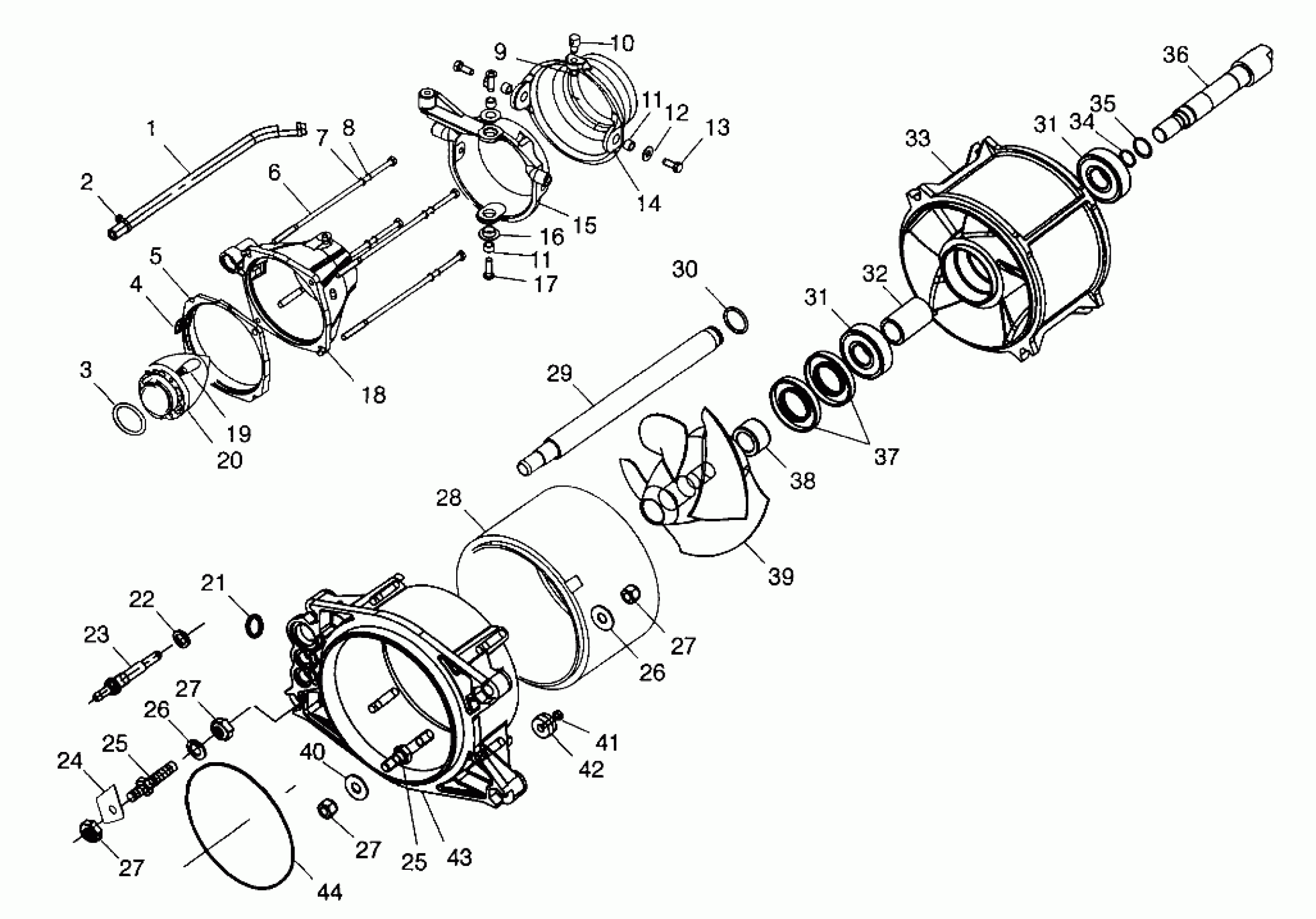

Polaris SLH - B984673 PROPULSION - B984673 (4945164516b004) Diagram

#

Description
Price

1

HOSE,WATER

8450054-100

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

O-RING(10)

5410819

$0.79

4

SCREEN,ENG.INLET

5431523

Unavailable

5

WEDGE,PUMP,(0DEGX4DEG) Substituted by 5432841

5630662

Unavailable

6

Bolt

7515389

Unavailable

7

WASHER, FLAT, S.S.,(10)

7555835

$0.69

8

WASHER, LOCK, S.S.(10)

7552610

Unavailable

9

WASHER(10)

7555866

Unavailable

10

Swivel, Rod End (See Footnote) (See Trim Package Pg. B5, Ref. 15)

----

Unavailable

11

Collar

5130938

Unavailable

11

Collar

5130938

Unavailable

12

WASHER,FLAT,S.S.(10)

7555874

$2.38

13

BOLT, S.S.(10)

7515361

$2.19

14

NOZZLE,TRIM

5431765

Unavailable

15

NOZZLE,STRG.REVERSE

5130960

Unavailable

16

BRG,STRG.NOZZLE,(10)

5431518

Unavailable

17

BOLT, S.S.(10)

7515366

Unavailable

18

NOZZLE ASM,0X4 WEDGE

1350038

$204.99

19

Cone, Pump

5431519

Unavailable

20

SCREW(10)

7512064

Unavailable

21

SEAL,WATER PIPE

5411107

Unavailable

22

SEAL,SIPHON TUBE

5411016

Unavailable

23

PIPE,WATER BILGE

5020835

$49.59

24

BRKT,STRG.CABLE

5241741

Unavailable

25

STUD,MTG,PUMP

5020877

$4.37

25

STUD,MTG,PUMP

5020877

$4.37

26

WASHER, FLAT(10)

7555841

Unavailable

26

WASHER, FLAT(10)

7555841

Unavailable

27

NUT,HEX,S.S.(10)

7542455

Unavailable

27

NUT,HEX,S.S.(10)

7542455

Unavailable

27

NUT,HEX,S.S.(10)

7542455

Unavailable

27

NUT,HEX,S.S.(10)

7542455

Unavailable

28

EXTENSION,PUMP

5131196

$204.99

29

COVER-CAM DRIVE WRINKLE BLK Substituted by 5132923

5132269

Unavailable

30

O RING,(10)

5410735

$0.79

31

Bearing

3514008

Unavailable

31

Bearing

3514008

Unavailable

32

Spacer

5010294

Unavailable

33

STATOR,PUMP

5130983

Unavailable

34

O-RING,(10)

5410817

Unavailable

35

O-RING(10)

5410818

$0.79

36

SHAFT, STUB Substituted by 5132674

5020697

$47.62

37

SEAL,BRG,STATOR

3610043

Unavailable

38

Spacer, Impeller

5010295

Unavailable

39

IMPELLER,12-17DEG,SWIRL,3BLADE

5131457

$374.99

40

Washer

7555966

$2.62

41

SCREW(10)

7522019

$0.95

42

ANODE-ZINC Substituted by 2200745

5630598

Unavailable

43

HOUSING,PUMP,W/RING Substituted by 2873081

5131815

Unavailable

44

O-RING,PUMP HSG/HULL

5410652

Unavailable
