1974 Yamaha SL433F Steering Diagram

← All diagrams

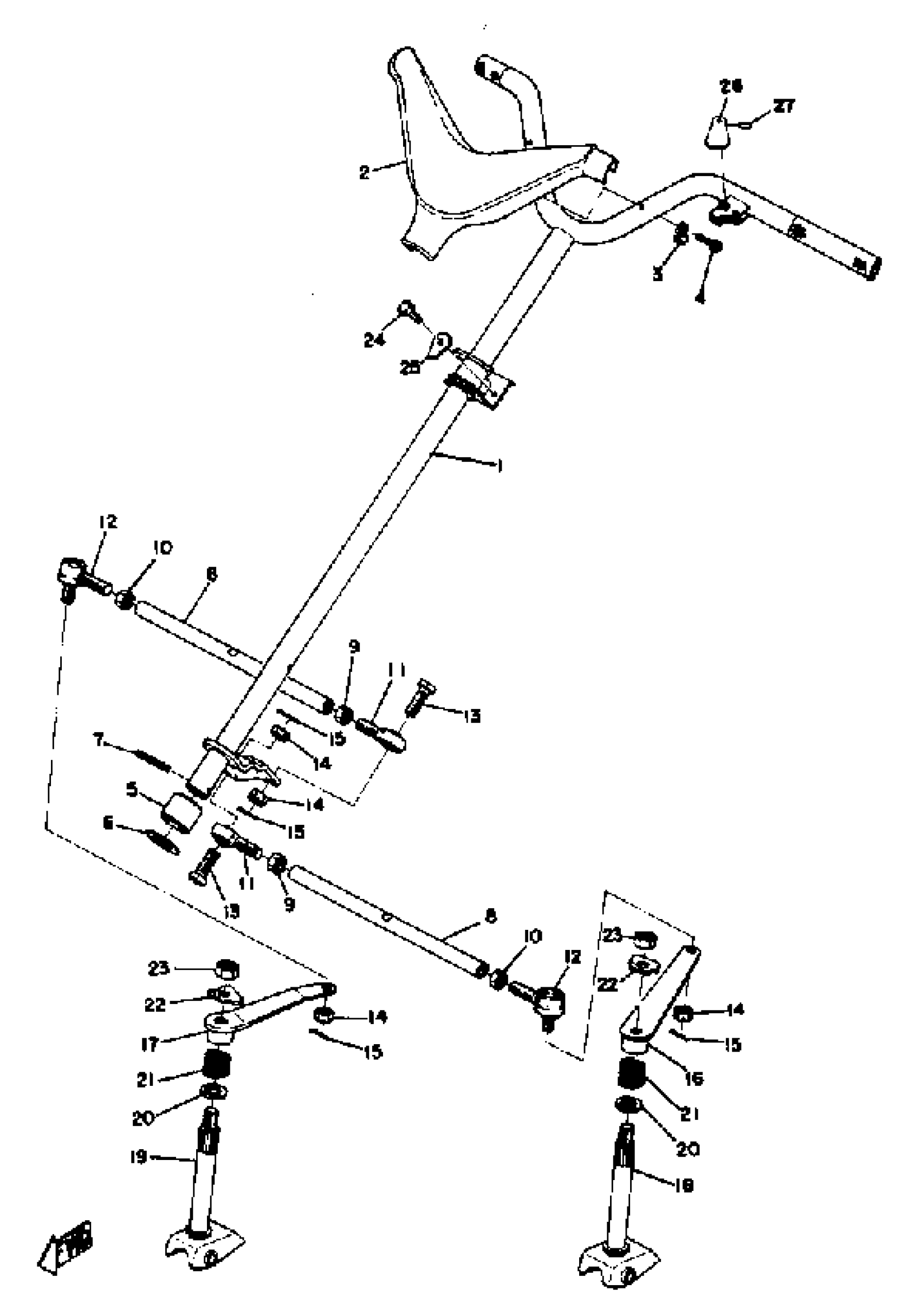

Find the part on the Steering diagram for your 1974 Yamaha SL433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha SL433F Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STRG COLUMN ASSEMBLY

(861-23810-01-00)

1
Out of stock

2

PAD, STEERING

(863-23815-01-00)

1
Out of stock

3

CLAMP

(90462-08003-00)

1
Out of stock

4

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

4

SCREW, PAN

98507-05035-00

1

$6.69

In stock

5

BEARING, STRG LOWER

(806-23875-00-00)

1
Out of stock

6

BEARING, STEERING

(841-23812-01-00)

1
Out of stock

7

PIN, SPRING

91609-60045-00

1
Out of stock

8

ROD, STEERING RELAY

(861-23821-00-00)

1
Out of stock

9

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

10

NUT (821-23834-00)

90170-12054-00

1
Out of stock

11

JOINT, UNIVERSAL 1

861-23841-00-00

1
Out of stock

12

JOINT, UNIVERSAL 2

(821-23845-90-00)

1
Out of stock

13

BOLT

(90109-10170-00)

1
Out of stock

14

NUT, SLOTTED

95306-10900-00

1
Out of stock

15

PIN, COTTER(6L5)

91490-25030-00

—

$2.85

In stock

16

ARM, OUTSIDE 1

861-23851-01-00

1
Out of stock

17

ARM, OUTSIDE 2

861-23852-01-00

1
Out of stock

18

COLUMN, SKI 1

861-23853-00-00

1
Out of stock

19

COLUMN, SKI 2

861-23854-00-00

1
Out of stock

20

SPACER

90560-20037-00

1
Out of stock

21

SPRING, COMPRESSION

90501-35154-00

1
Out of stock

22

WASHER, LOCK (810-23857-00)

90215-12031-00

1
Out of stock

23

NUT, HEXAGON 98801-12200

90170-12175-00

—

$7.69

In stock

24

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

25

WASHER, LOCK

(90215-06038-00)

1
Out of stock

26

LEVER, LOCK

(803-83965-00-00)

1
Out of stock

27

PIN, SPEC''L SHAPE

(90249-04022-00)

1
Out of stock
