1974 Yamaha SL433F Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1974 Yamaha SL433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

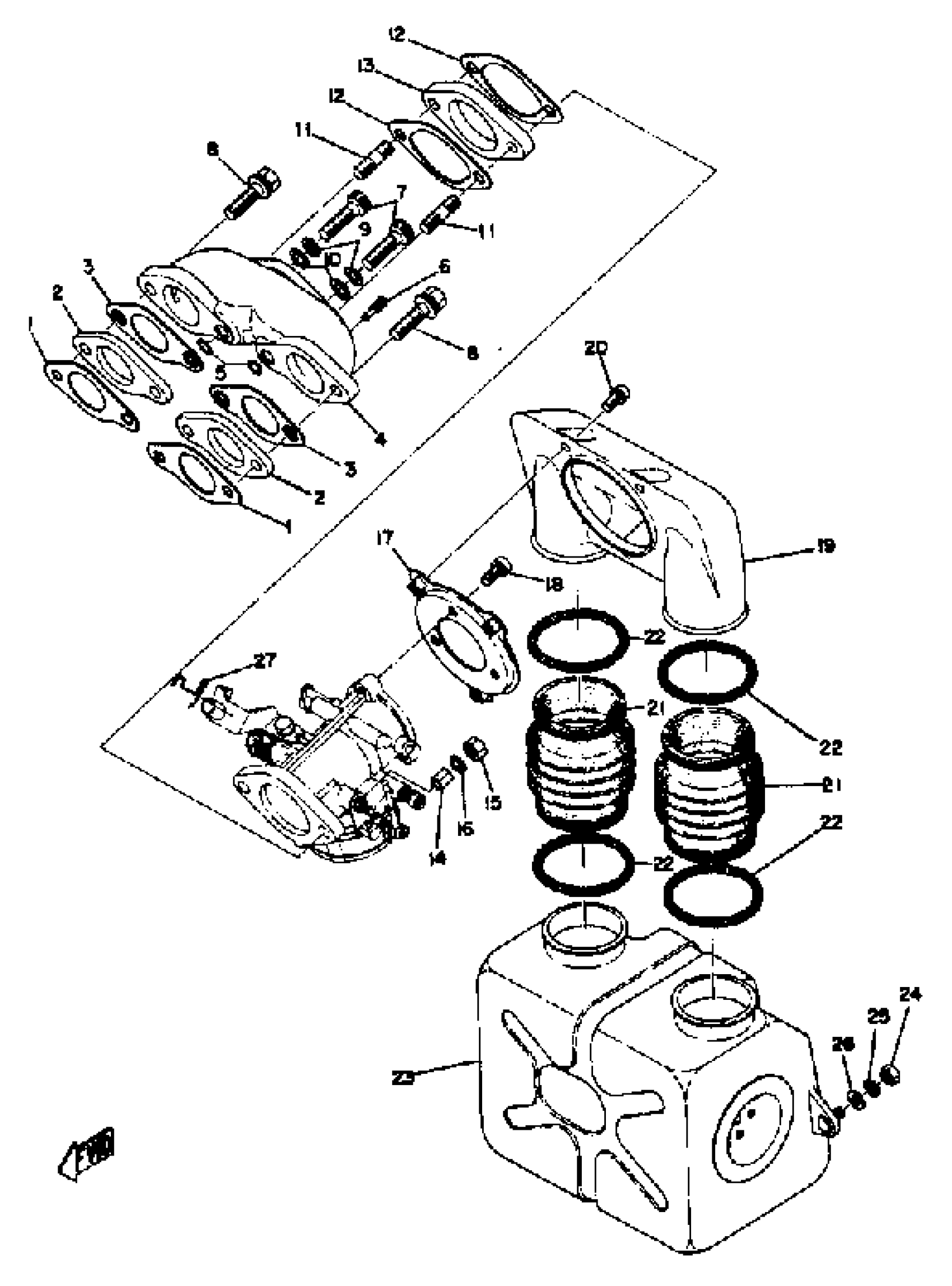

1974 Yamaha SL433F Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET,MANIFOLD

811-13556-09-00

1
Out of stock

1

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

2

MANIFOLD, INTAKE

(8F1-13555-00-00)

1
Out of stock

2

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

3

GASKET

811-13563-09-00

1
Out of stock

4

JOINT, CARBURETOR

(826-13565-00-00)

1
Out of stock

5

O-RING (11M)

93210-07540-00

1

$5.77

In stock

6

NOZZLE

824-13552-00-00

1
Out of stock

7

BOLT, SOCKET

91317-08030-00

1

$6.17

In stock

8

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

8

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

8

BOLT

97013-08035-00

1

$4.80

In stock

9

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

10

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

11

BOLT, STUD

(90116-08051-00)

1
Out of stock

12

GASKET

810-13566-09-00

1
Out of stock

13

MANIFOLD, INTAKE

(812-13555-70-00)

1
Out of stock

14

SPACER

(810-13576-00-00)

1
Out of stock

15

. NUT

95380-08700-00

1

$3.07

In stock

16

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

17

PLATE

(841-14477-00-00)

1
Out of stock

19

SILENCER, INTAKE 1

(841-14431-00-00)

1
Out of stock

20

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

21

JOINT, AIR CLNR 1

841-14453-00-00

1
Out of stock

22

SPRING, TENSION

90506-06082-00

1
Out of stock

23

SILENCER, INTAKE 2

(841-14441-02-00)

1
Out of stock

24

NUT(6TA)

95317-06600-00

—

$2.69

In stock

25

WASHER, SPRING

92907-06100-00

—
Out of stock

26

WASHER(6TA)

92907-06200-00

—

$6.18

In stock

27

CLAMP, THROTTLE

822-41222-00-00

1
Out of stock
