1974 Yamaha SL433F Bumper Diagram

← All diagrams

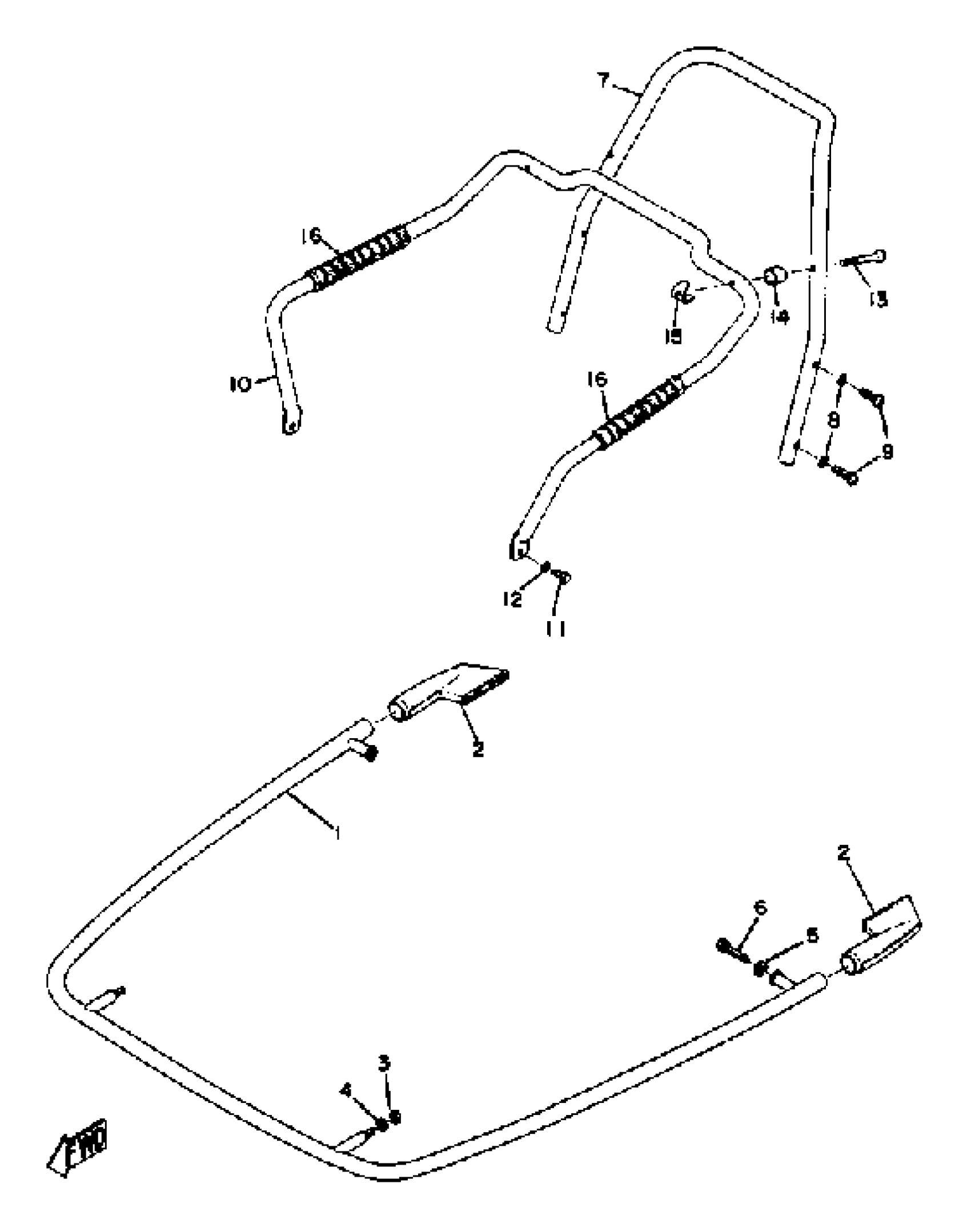

Find the part on the Bumper diagram for your 1974 Yamaha SL433F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha SL433F Bumper Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT BUMPER

841-77510-00-00

1
Out of stock

2

END, BUMPER

838-77523-00-00

1
Out of stock

3

NUT, SPECIAL SHAPE

90179-08288-00

1
Out of stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

WASHER, PLATE

(90201-08456-00)

1
Out of stock

6

WASHER(JN5)

92907-08100-00

1

$5.98

In stock

6

BOLT (8K4)

90101-08499-00

—

$21.95

In stock

7

BUMPER, REAR 1

(841-77541-00-00)

1
Out of stock

8

WASHER

92990-06500-00

1
Out of stock

9

SCREW, FLAT HEAD

98780-06530-00

1

$4.02

In stock

10

GRIP, ASSIST 1

841-77571-00-00

1
Out of stock

11

BOLT (661)

97013-06012-00

1

$4.71

In stock

12

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

13

SCREW, SPEC''L SHAPE

90149-06054-00

1
Out of stock

14

BUSH, RUBBER 1

(806-77515-00-00)

1
Out of stock

15

NUT, SPECIAL

806-77573-00-00

1
Out of stock

16

COVER, ASSIST GRIP

838-77575-00-00

1
Out of stock
