1973 Yamaha SL433B Steering Diagram

← All diagrams

Find the part on the Steering diagram for your 1973 Yamaha SL433B, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

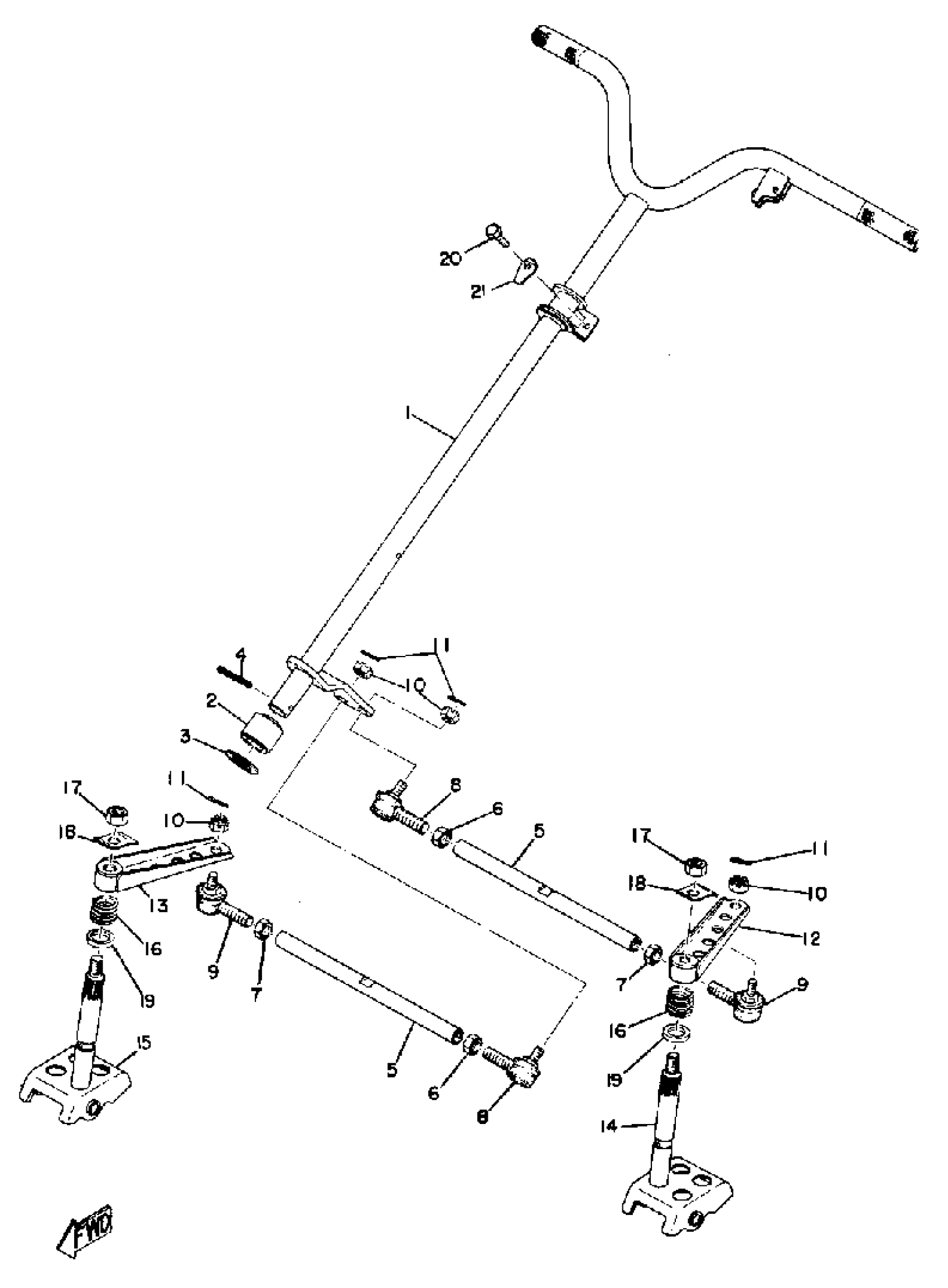

1973 Yamaha SL433B Steering Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COLUMN, STEERING

(841-23811-01-00)

1
Out of stock

2

BEARING, STRG LOWER

(806-23875-00-00)

1
Out of stock

3

BEARING, STEERING

(841-23812-01-00)

1
Out of stock

4

PIN, SPRING

91609-60045-00

1
Out of stock

5

ROD, STEERING RELAY

(821-23821-00-00)

1
Out of stock

6

NUT, HEXAGON SMALL

95317-12700-00

1

$6.17

In stock

7

NUT (821-23834-00)

90170-12054-00

1
Out of stock

8

JOINT, UNIVERSAL 1

(821-23841-90-00)

1
Out of stock

9

JOINT, UNIVERSAL 2

(821-23845-90-00)

1
Out of stock

10

NUT, CASTLE

90171-10002-00

1
Out of stock

11

PIN, COTTER(6L5)

91490-25030-00

1

$2.85

In stock

12

ARM, OUTSIDE 1

(841-23851-01-00)

1
Out of stock

13

ARM, OUTSIDE 2

841-23852-01-00

1
Out of stock

14

COLUMN, SKI 1

(841-23853-01-00)

1
Out of stock

15

COLUMN, SKI 2

841-23854-01-00

1
Out of stock

16

SPRING, COMPRESSION

90501-35154-00

1
Out of stock

17

NUT, HEXAGON

95337-12600-00

—
Out of stock

18

WASHER, LOCK

90215-12037-00

1
Out of stock

19

SPACER

90560-20037-00

1
Out of stock

20

BOLT, HEXAGON

97017-06020-00

—

$2.55

In stock

21

WASHER, LOCK

(90215-06038-00)

1
Out of stock
