1969 Yamaha SL396 Track Drive Diagram

← All diagrams

Find the part on the Track Drive diagram for your 1969 Yamaha SL396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

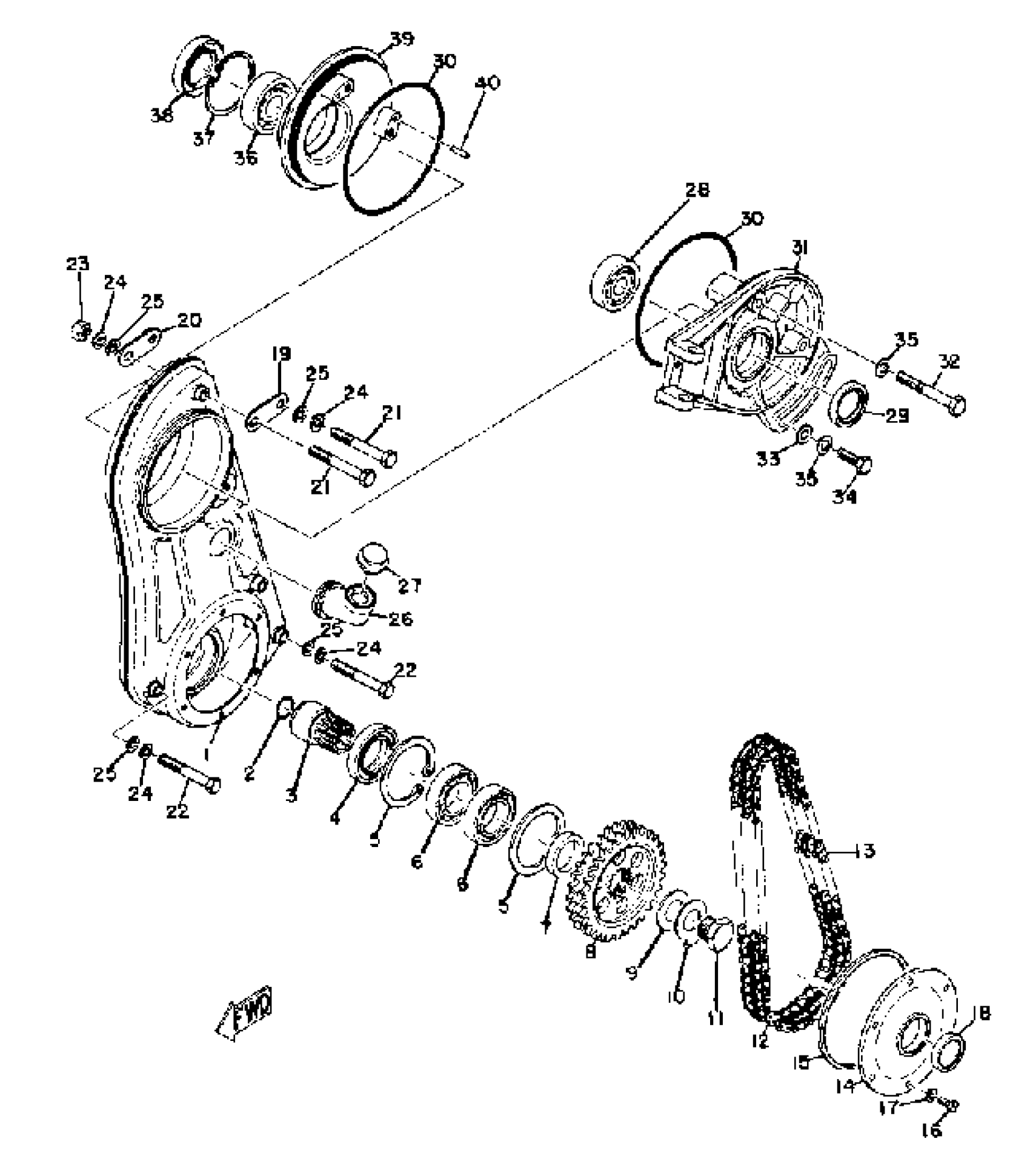

1969 Yamaha SL396 Track Drive Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

806-47541-00-00

1
Out of stock

2

O-RING (437)

93210-24235-00

1

$5.72

In stock

3

JOURNAL 1

(806-47571-00-00)

1
Out of stock

4

OIL SEAL, SWO-TYPE

(93110-40001-00)

1
Out of stock

5

CIRCLIP(MF1)

99009-62500-00

1

$6.23

In stock

6

BEARING, CYLINDER.#16

(93316-00701-00)

1
Out of stock

7

COLLAR

90387-35205-00

1
Out of stock

8

SPROCKET, CHN DRVN

(802-47548-40-00)

1
Out of stock

9

WASHER

(802-47555-00-00)

1
Out of stock

10

WASHER, LOCK

(802-47554-10-00)

1
Out of stock

11

BOLT (802-47553-00)

90109-24202-00

1
Out of stock

12

CHAIN (DK425-2 62L)

94804-25062-00

1
Out of stock

13

. JOINT CHAIN

94904-25001-00

1
Out of stock

14

CAP, HOUSING

(806-47543-00-00)

1
Out of stock

15

RING, HOUSING

(806-47558-00-00)

1
Out of stock

16

SCREW

90143-05004-00

—

$2.20

In stock

17

WASHER, SEAL

90210-05005-00

1
Out of stock

18

LEVEL, OIL

802-47546-01-00

1
Out of stock

19

STAY 1

(802-47565-00-00)

1
Out of stock

20

STAY 2

(802-47566-00-00)

1
Out of stock

21

BOLT, HEXAGON (ISO) (97206-08070)

97306-08070-00

1
Out of stock

22

BOLT(6TC)

97027-08070-00

—

$6.88

In stock

23

NUT(6TA)

95337-08600-00

—

$6.17

In stock

24

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

25

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

26

FILLER, OIL

(801-47547-00-00)

1
Out of stock

27

BREATHER

(204-15371-00-00)

1
Out of stock

28

BRG,R-B 6303 47MM 115G NK

93306-30302-00

—

$39.88

In stock

29

OIL SEAL(7EG)

93102-25360-00

—

$12.20

In stock

30

O-RING

93211-13109-00

1
Out of stock

31

HOUSING, SEC SHAFT

(806-47561-00-00)

1
Out of stock

32

BOLT

97021-08065-00

1
Out of stock

33

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

34

BOLT (682)

97013-08025-00

—

$6.80

In stock

35

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

36

—

$54.91

In stock

37

CIRCLIP(26H)

99009-52500-00

—

$10.74

In stock

38

OIL SEAL(3BC)

93106-30029-00

—

$12.66

In stock

39

HOUSING, SEC SHAFT

(806-47562-00-00)

1
Out of stock

40

PIN, DOWEL(4SS)

93604-18251-00

1
Out of stock
