1969 Yamaha SL396 Piping Diagram

← All diagrams

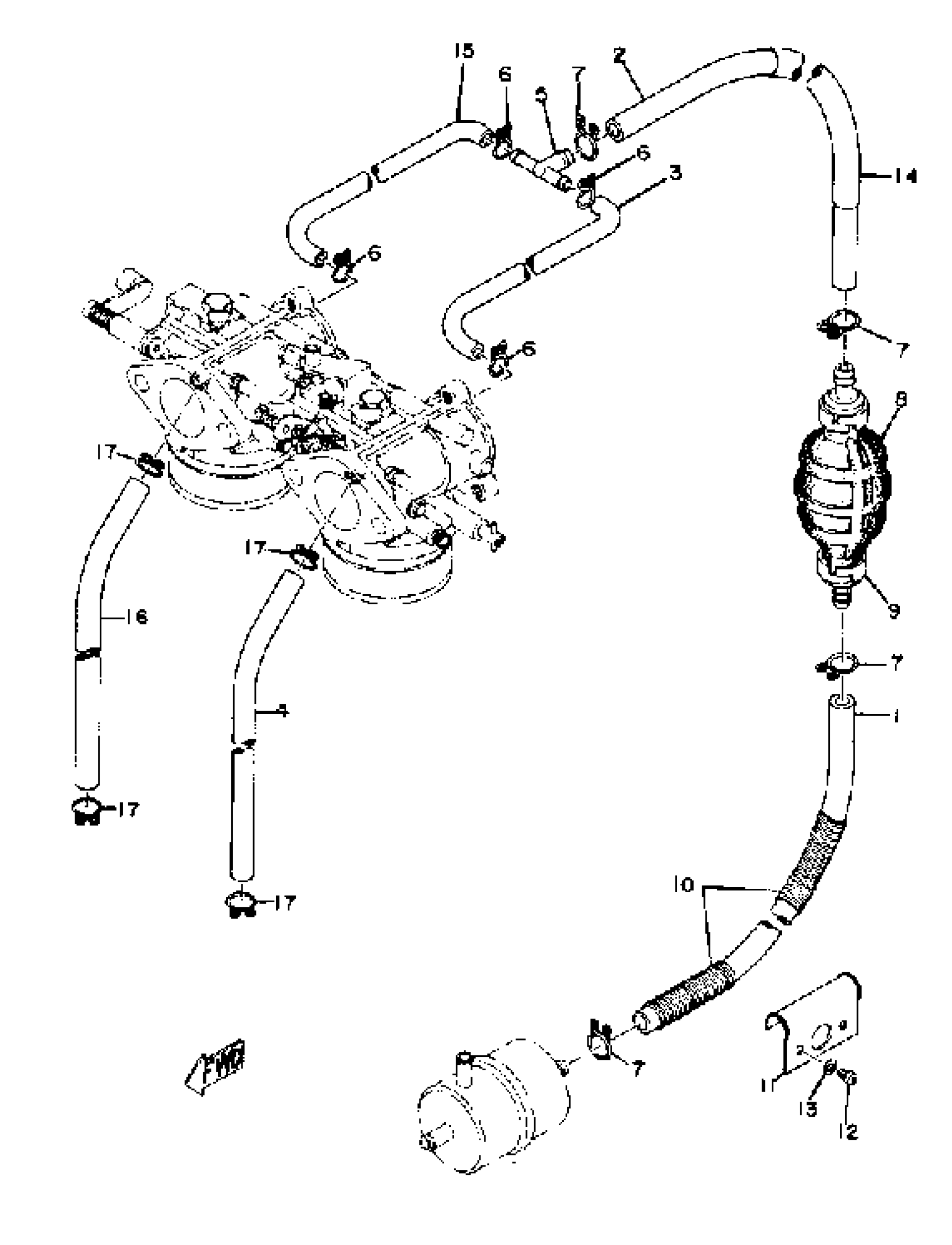

Find the part on the Piping diagram for your 1969 Yamaha SL396, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1969 Yamaha SL396 Piping Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE 4

(807-24314-00-00)

1
Out of stock

2

HOSE

90446-11326-00

1
Out of stock

3

PIPE 3

(807-24313-00-00)

1
Out of stock

4

PIPE 6

(807-24316-00-00)

1
Out of stock

5

JOINT, PIPE (1)

807-24376-00-00

1

$4.68

In stock

6

CLAMP, HOSE

90460-09001-00

1
Out of stock

7

CLIP

90467-100A1-00

1
Out of stock

8

PRIMER PUMP ASSEMBLY

810-24360-00-00

1
Out of stock

9

BAND

(601-24353-00-00)

1
Out of stock

10

—

$3.98

In stock

11

CLAMP, FUEL PIPE 1

(806-24366-00-00)

1
Out of stock

12

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock

13

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

14

PIPE 11

(806-24322-00-00)

1
Out of stock

15

PIPE 7

807-24317-00-00

1
Out of stock

16

HOSE

(90445-10129-00)

1
Out of stock

17

CLIP

90467-090A2-00

—

$2.51

In stock
