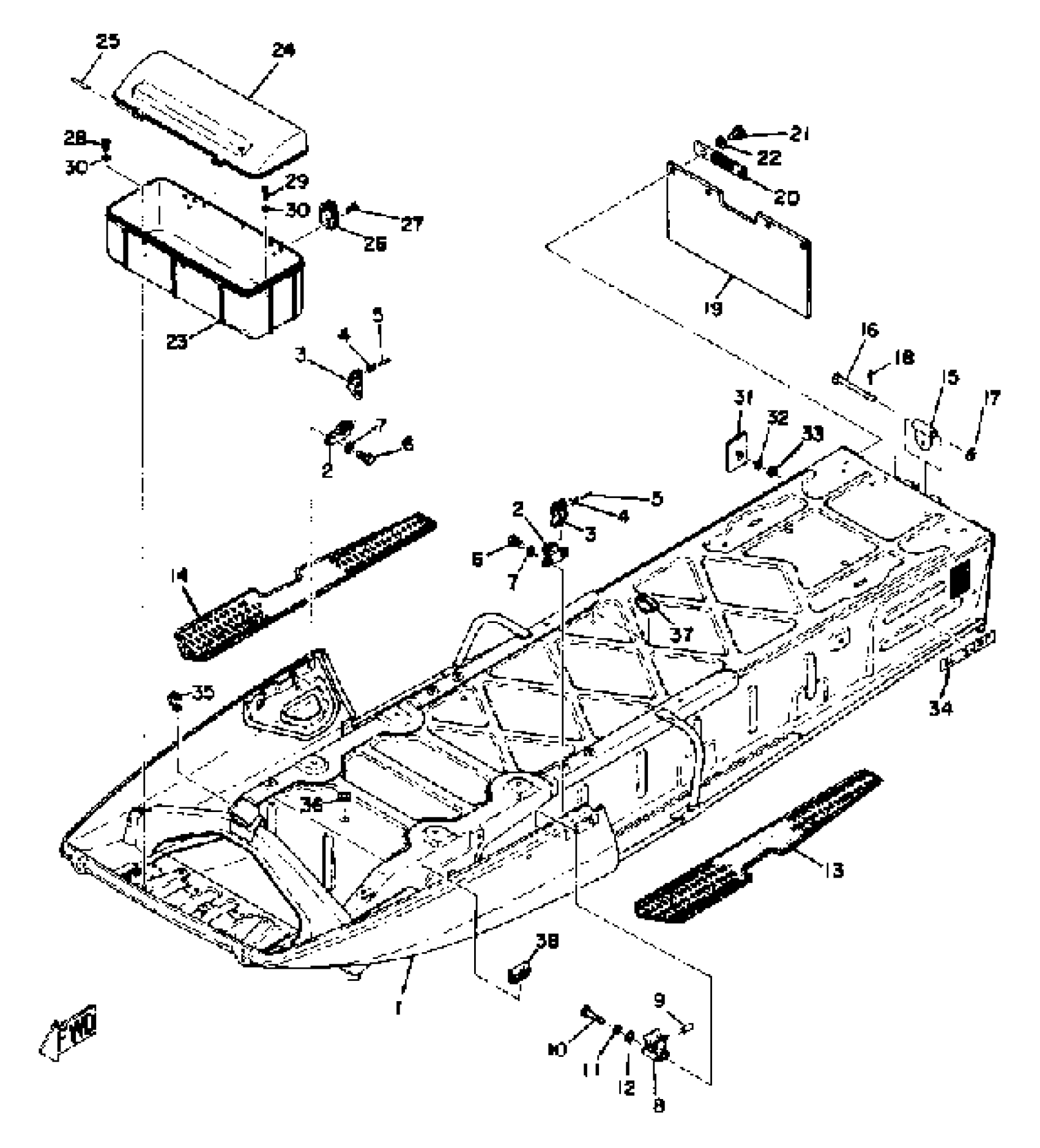

Find the part on the Frame diagram for your 1974 Yamaha SL338F, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha SL338F Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LATCH ASSEMBLY

806-77170-00-00

1
Out of stock

1

FRAME

(861-21910-00-00)

1
Out of stock

2

BODY, LATCH 2

(806-77172-00-00)

1
Out of stock

3

. LEVER, LATCH 1

806-77173-00-00

1
Out of stock

4

. SPRING, TORSION

90508-10012-00

1
Out of stock

5

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

6

BOLT, HEXAGON

97313-05016-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

CLAMP

90464-09006-00

1
Out of stock

9

STOPPER

821-77188-01-00

1
Out of stock

10

BOLT, HEXAGON

97017-06045-00

1
Out of stock

11

WASHER, SPRING

92907-06100-00

1
Out of stock

12

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

13

COVER, FOOTREST

878-27413-00-00

1
Out of stock

14

COVER, FOOTREST

878-27423-00-00

1
Out of stock

15

BRACKET, HITCH 1

802-77591-00-00

1
Out of stock

16

PIN, CLEVIS

(91701-08102-00)

1
Out of stock

17

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

18

PIN, COTTER

91490-25020-00

—

$2.94

In stock

19

FLAP

(802-77595-02-00)

1
Out of stock

20

PLATE, FLAP 1

(802-77593-00-00)

1
Out of stock

21

BOLT (661)

97013-06012-00

—

$4.71

In stock

22

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

23

LUGGAGE BOX

841-77391-00-00

1
Out of stock

24

COVER, LUGGAGE BOX

(8F6-77392-00-00)

1
Out of stock

25

PIN, SPEC''L SHAPE

90249-03021-00

1
Out of stock

26

LUGGE BOX LTCH ASSEMBLY

(822-77340-00-00)

1
Out of stock

27

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

28

SCREW, PAN

98507-06014-00

—

$6.18

In stock

29

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

30

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

31

REFLECTOR, REAR 1

(821-85131-00-00)

1
Out of stock

32

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

33

NUT U (861)

90185-06040-00

—

$5.72

In stock

34

EMBLEM 4

(859-77354-00-00)

1
Out of stock

35

BAND

(841-82591-00-00)

1
Out of stock

36

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

37

CLAMP

(90464-13008-00)

1
Out of stock

38

STRIP, WEATHER 1

(841-77161-00-00)

1
Out of stock
