1973 Yamaha SL338D Front Axle Diagram

← All diagrams

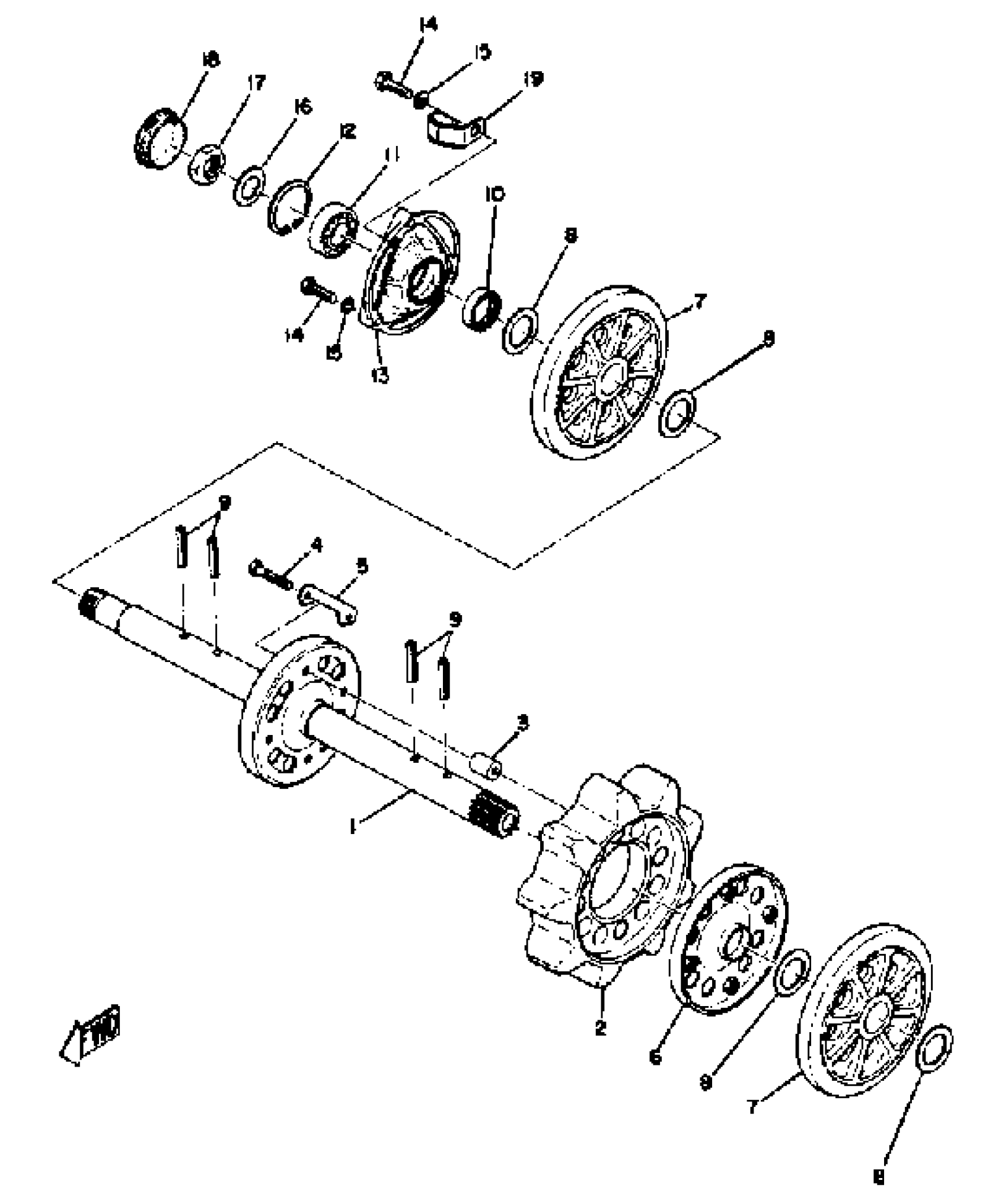

Find the part on the Front Axle diagram for your 1973 Yamaha SL338D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SL338D Front Axle Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT AXLE

821-47510-00-00

1
Out of stock

2

WHEEL, SPROCKET 2

810-47532-00-00

1
Out of stock

3

COLLAR

(90387-06021-00)

1
Out of stock

4

BOLT(3RV)

97014-06035-00

1

$1.54

In stock

5

WASHER, LOCK

90215-06100-00

1
Out of stock

6

RIM, SPROCKET WHL 2

(810-47522-00-00)

1
Out of stock

7

GUIDE WHEEL

810-47530-00-00

1
Out of stock

8

WASHER, PLATE

90201-25499-00

1
Out of stock

9

PIN, SPRING

91609-60036-00

1
Out of stock

10

OIL SEAL,SD-TYPE

93102-25332-00

1
Out of stock

11

BEARING

93306-00412-00

1
Out of stock

12

CIRCLIP, R-TYPE

93420-44029-00

1
Out of stock

13

HOUSING, FRONT AXLE

841-47551-00-00

1
Out of stock

14

BOLT (682)

97013-08025-00

1

$6.80

In stock

15

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

16

WASHER 810475810000

90208-22001-00

—

$7.35

In stock

17

NUT (821-47579-00)

90170-22094-00

—

$5.34

In stock

18

CAP (NOT AVAIL)

810-47552-00-00

1
Out of stock

19

CLAMP (706)

90465-06100-00

—
Out of stock
