1973 Yamaha SL338D Frame Diagram

← All diagrams

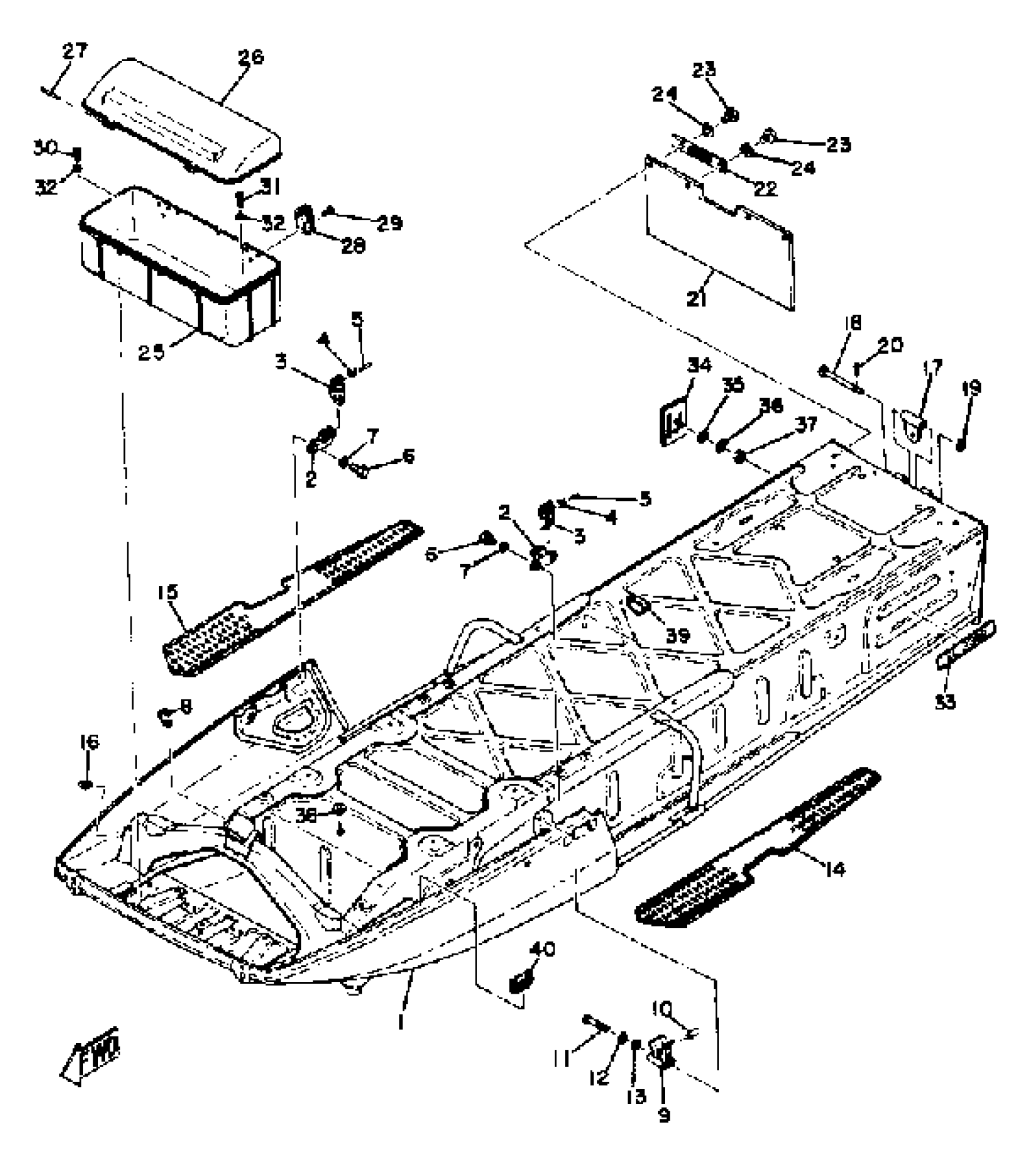

Find the part on the Frame diagram for your 1973 Yamaha SL338D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1973 Yamaha SL338D Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LATCH ASSEMBLY

806-77170-00-00

1
Out of stock

1

FRAME

(841-21910-00-00)

1
Out of stock

2

BODY, LATCH 2

(806-77172-00-00)

1
Out of stock

3

. LEVER, LATCH 1

806-77173-00-00

1
Out of stock

4

. SPRING, TORSION

90508-10012-00

1
Out of stock

5

. PIN, SPECIAL SHAPE

90249-04068-00

1
Out of stock

6

BOLT, HEXAGON

97313-05016-00

1
Out of stock

7

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

8

BAND

(841-82591-00-00)

1
Out of stock

9

CLAMP

90464-09006-00

1
Out of stock

10

STOPPER

821-77188-01-00

1
Out of stock

11

BOLT, HEXAGON

97017-06045-00

1
Out of stock

12

WASHER, SPRING

92907-06100-00

1
Out of stock

13

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

14

COVER, FOOTREST

878-27413-00-00

1
Out of stock

15

COVER, FOOTREST

878-27423-00-00

1
Out of stock

16

NIPPLE, GREASE

93700-06M03-00

1

$7.15

In stock

17

BRACKET, HITCH 1

802-77591-00-00

1
Out of stock

18

PIN, CLEVIS

(91701-08102-00)

1
Out of stock

19

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

20

PIN, COTTER

91490-25020-00

—

$2.94

In stock

21

FLAP

(802-77595-02-00)

1
Out of stock

22

PLATE, FLAP 1

(802-77593-00-00)

1
Out of stock

23

BOLT (661)

97013-06012-00

—

$4.71

In stock

24

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

25

LUGGAGE BOX

841-77391-00-00

1
Out of stock

26

COVER, LUGGAGE BOX

(8F6-77392-00-00)

1
Out of stock

27

PIN, SPEC''L SHAPE

90249-03021-00

1
Out of stock

28

LUGGE BOX LTCH ASSEMBLY

(822-77340-00-00)

1
Out of stock

29

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

30

SCREW, PAN

98507-06014-00

—

$6.18

In stock

31

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

32

WASHER(6TA)

92907-06200-00

1

$6.18

In stock

33

EMBLEM 4

840-77354-00-00

1
Out of stock

33

EMBLEM 4

(846-77354-00-00)

1
Out of stock

34

REFLECTOR, REAR 1

(821-85131-00-00)

1
Out of stock

35

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

36

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

37

NUT, NYLON

95707-06300-00

—

$3.20

In stock

38

ORNAMENT, INSTRUMENT PANEL 2

810-77716-00-00

1
Out of stock

39

CLAMP

(90464-13008-00)

1
Out of stock

40

STRIP, WEATHER 1

(841-77161-00-00)

1
Out of stock
