1973 Yamaha SL338D Exhaust Diagram

← All diagrams

Find the part on the Exhaust diagram for your 1973 Yamaha SL338D, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

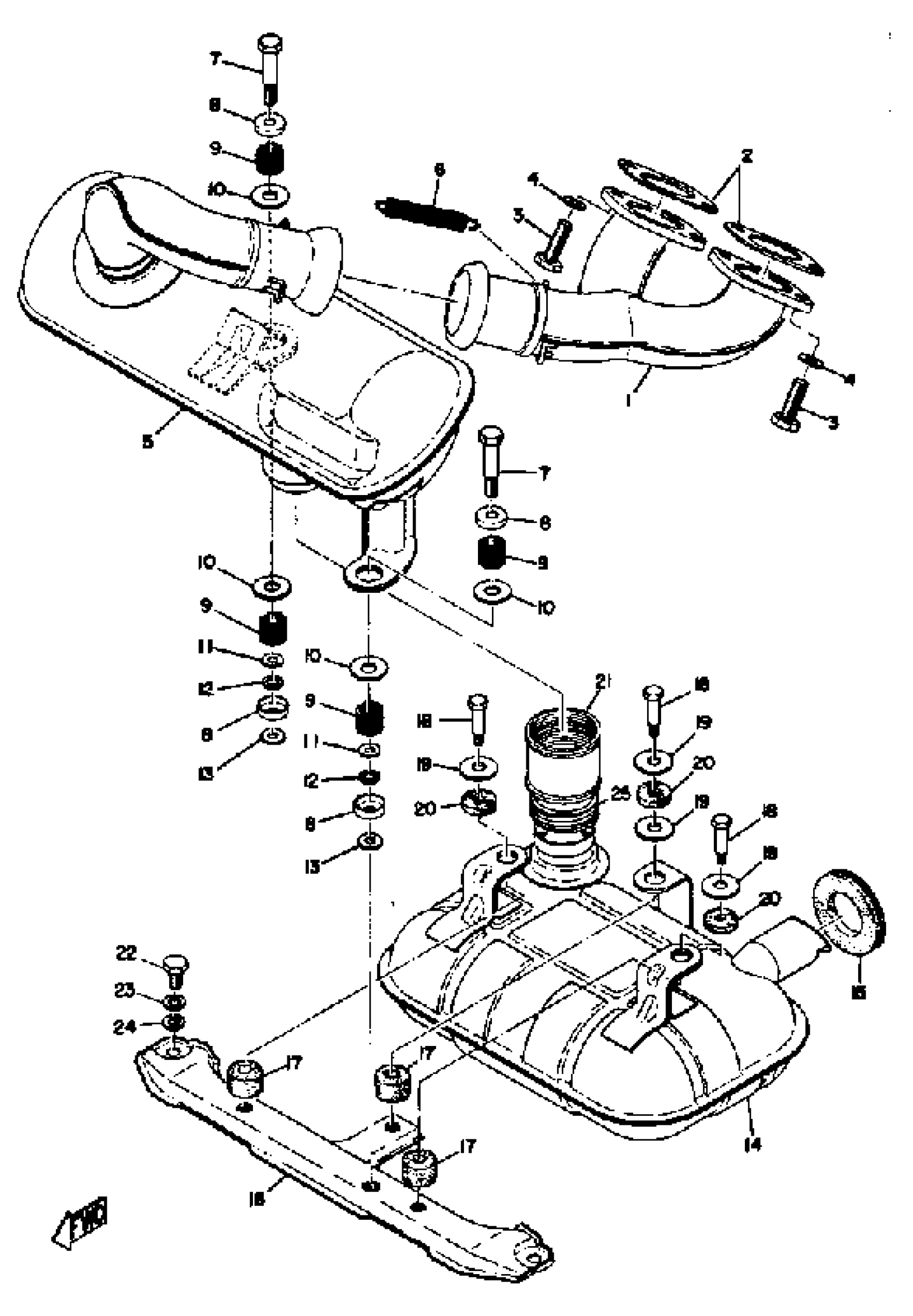

1973 Yamaha SL338D Exhaust Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(824-14610-00-00)

1
Out of stock

2

GASKET, EXHAUST PIPE

89A-14613-00-00

1

$13.42

In stock

3

O-RING

(806-14561-00-00)

1
Out of stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

5

MUFFLER ASSEMBLY L

(840-14710-00-00)

1
Out of stock

6

SPRING, MUFFLER

821-14773-00-00

1

$15.83

In stock

7

BOLT

90109-08293-00

1
Out of stock

8

PLATE, MUFFLER

(812-14793-00-00)

1
Out of stock

9

SPRING, COMPRESSION

90501-18114-00

1
Out of stock

10

WASHER, PLATE(3BM)

90201-105R9-00

1
Out of stock

11

SPACER

(90560-08065-00)

1
Out of stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

13

WASHER, PLATE

(90201-07080-00)

1
Out of stock

14

MUFFLER ASSEMBLY R

841-14720-01-00

1
Out of stock

15

PROTECTOR, MUFF 1

841-14718-00-00

1
Out of stock

16

STAY, MUFFLER 1

(841-14771-02-00)

1
Out of stock

17

DAMPER, MUFFLER

(841-14747-01-00)

1
Out of stock

18

BOLT

90109-06023-00

1
Out of stock

19

WASHER, PLATE (5J0)

90201-085E6-00

—
Out of stock

20

DAMPER, MUFFLER 2

(841-14757-00-00)

1
Out of stock

21

GASKET, MUFFLER

841-14714-00-00

1
Out of stock

22

BOLT, HEXAGON

97013-08016-00

—

$1.32

In stock

23

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

24

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

25

SPRING, COMPRESSION

(90504-30004-00)

1
Out of stock
