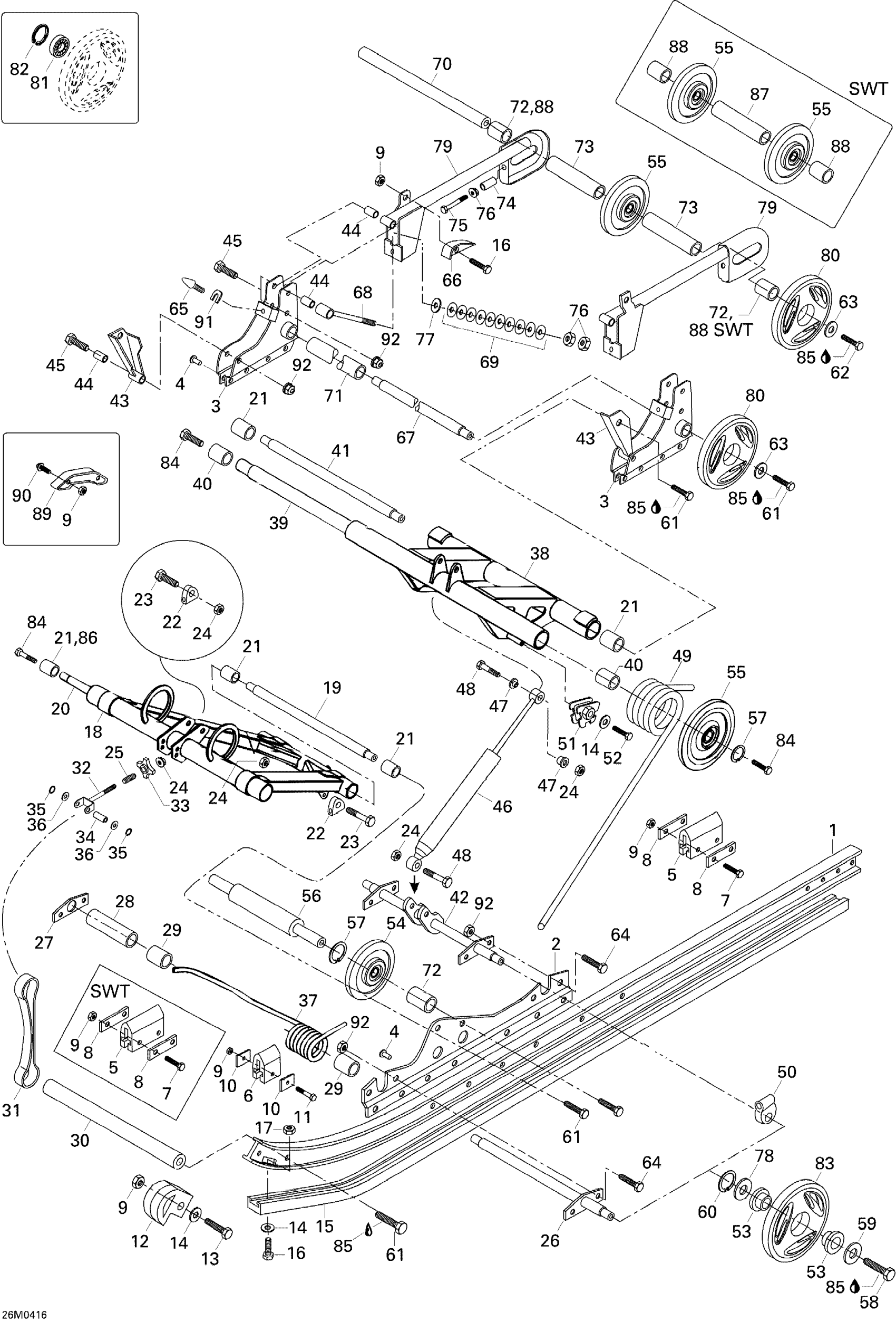

Ski-Doo Skandic WT/SWT 550F , 2004 Rear Suspension Diagram

#

Description
Price

1

RUNNER - Call your local BRP dealership This part replaces M5142864.

5142864

Unavailable

2

Support Plate Rh This part replaces M5344811.

5344811

Unavailable

2

Support Plate Lh This part replaces M5344810.

5344810

Unavailable

3

Support For Rearaxle Rh This part replaces M539673.

539673

Unavailable

3

Support For Rearaxle Lh This part replaces M539672.

539672

Unavailable

4

RIVET - Call your local BRP dealership

M544212

Unavailable

5

RUBBER STOPPER - Call your local BRP dealership

570023100

Unavailable

5

RUBBER STOPPER - Call your local BRP dealership

570023100

Unavailable

6

STOPPER-RUBBER - Call your local BRP dealership This part replaces M5442328.

5442328

Unavailable

7

Hex. Screw M6 X 40

207064044

$1.48

7

Hex. Screw M6 X 40

207064044

$1.48

8

Washer

M548387

Unavailable

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

9

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

10

Plate

M548470

Unavailable

11

Hex. Screw M6 X 30

207063044

Unavailable

12

Runner Protector

605348954

Unavailable

13

Hex. Screw M6 X 25

207162544

Unavailable

14

Flat Washer 6 mm

234061410

Unavailable

15

Runner Shoe

M549582

Unavailable

16

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

17

Elastic Stop Nut M6

232561414

Unavailable

18

Front Arm Welded

M5245898

Unavailable

18

ARM-FRONT WELD - Call your local BRP dealership

M5242808

Unavailable

19

Shaft This part replaces M549695.

549695

Unavailable

20

Bogie Shaft This part replaces M542793.

542793

Unavailable

20

Boggie Shaft This part replaces M542794.

542794

Unavailable

21

Shaft Sleeve This part replaces M542770.

542770

Unavailable

21

Shaft Sleeve This part replaces M542770.

542770

Unavailable

22

Spring Roller This part replaces M548799.

548799

Unavailable

23

Hex. Screw M10 X 40

207004044

$4.65

24

Elastic Locking Nut M10 X 1.5

233601416

$1.68

25

SPRING - Call your local BRP dealership

414460600

$5.58

26

Axle

M5345453

Unavailable

27

Plate Support

M548469

Unavailable

28

Sleeve

M5440313

Unavailable

29

Sleeve

M548841

Unavailable

30

Cross Shaft

M549718

Unavailable

31

STOPPER STRAP - Call your local BRP dealership This part replaces M5442604.

5442604

Unavailable

32

Bolt-Eye Adjuster

M5441643

Unavailable

33

ADJUSTER KNOB - Call your local BRP dealership

572034000

Unavailable

34

Pin

M5441645

Unavailable

35

Circlip

M41035

Unavailable

36

Flat Washer 10 mm

234001410

Unavailable

37

Spring R.H. This part replaces M5241178.

5241178

Unavailable

37

Spring L.H. This part replaces M5241177.

5241177

Unavailable

37

Spring R.H. This part replaces M538798.

538798

Unavailable

37

Spring This part replaces M538797.

538797

Unavailable

38

Reararm - Call your local BRP dealership This part replaces M5343493.

5343493

Unavailable

38

Bras Arr*Rear Arm This part replaces M5348213.

5348213

Unavailable

39

Shaft This part replaces M5343492.

5343492

Unavailable

39

REAR ARM SHAFT - Call your local BRP dealership This part replaces M5340577.

5340577

Unavailable

40

Bearing This part replaces M31023.

31023

Unavailable

41

Swing shaft - Call your local BRP dealership This part replaces M549656.

549656

Unavailable

42

SHAFT - Call your local BRP dealership This part replaces M5345454.

5345454

Unavailable

43

Crank Arm R.H. This part replaces M5440350.

5440350

Unavailable

43

Crank Arm Lh This part replaces M5440349.

5440349

Unavailable

44

Spacer This part replaces M545758.

545758

Unavailable

45

Hex. Screw M8 X 45

207084544

Unavailable

46

SHOCK - Call your local BRP dealership

503189997

Unavailable

46

SHOCK - Call your local BRP dealership

503189997

Unavailable

47

Shock Spacer - Call your local BRP dealership This part replaces M544417.

544417

Unavailable

48

Hex. Screw M10 X 1.5 X 50

207005044

Unavailable

49

Spring R.H. This part replaces M538806.

538806

Unavailable

49

Spring L.H. This part replaces M538805.

538805

Unavailable

50

Spring Support

M548804

Unavailable

50

SPRING SUPPORT - Call your local BRP dealership

M5442112

Unavailable

51

RH ADJUST CAM - Call your local BRP dealership

572030900

Unavailable

51

LH ADJUST CAM - Call your local BRP dealership

572030800

Unavailable

52

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161044

Unavailable

53

Cushion

503189534

Unavailable

54

Wheel 139 mm Ass'y

503190798

Unavailable

54

Wheel 135

503191029

Unavailable

55

Wheel 165" | Includes 670 to 670b

503194127

$49.97

55

Wheel 165" | Includes 670 to 670b

503194127

$49.97

56

Support Shaft

M549680

Unavailable

57

Retaining Ring 25X2 Din471(1=10Pcs) This part replaces M31001.

31001

Unavailable

58

HEX. SCREW M8 X 20 - Call your local BRP dealership This part replaces M40336.

40336

Unavailable

59

Washer

503183100

$3.08

60

Circlip 20X1.75 DIN471 This part replaces M31007.

293370056

Unavailable

61

Hex Sc. M10X 30 Bn73 M8.8 Zne(1=10Pcs) This part replaces M40335.

40335

$3.11

62

Hex. Screw With Nylon Patch

M40050

Unavailable

63

Washer

503183300

$5.68

64

Hex. Screw M8 x 16

207181644

$0.87

65

Rubber Stopper - Call your local BRP dealership This part replaces M535455.

535455

Unavailable

66

Protector

M548262

Unavailable

67

Axle This part replaces M541816.

541816

Unavailable

68

BOLT-EYE ADJUSTER - Call your local BRP dealership This part replaces M5440377.

5440377

Unavailable

69

Cup Spring This part replaces M25004.

25004

Unavailable

70

SHAFT - Call your local BRP dealership

M5343284

Unavailable

70

Axe *Shaft

M5341979

Unavailable

71

Sleeve

M541815

Unavailable

72

Sleeve

M546577

Unavailable

73

SLEEVE - Call your local BRP dealership

M5443285

Unavailable

74

Spacer - Call your local BRP dealership This part replaces M546668.

546668

Unavailable

75

SCREW - Call your local BRP dealership

M40239

Unavailable

76

Hex. Nut M10 X 1.5

232006414

$1.11

76

Hex. Nut M10 X 1.5

232006414

$1.11

77

Flat Washer 10 mm This part replaces M20011.

234002410

Unavailable

78

SHIM - Call your local BRP dealership

M31091

Unavailable

79

EXTENSION TUBE RH - Call your local BRP dealership

605251784

Unavailable

79

EXTENSION TUBE LH - Call your local BRP dealership

605251783

Unavailable

80

Wheel 165 mm Yellow

503190817

Unavailable

81

Ball Bearing

293350115

Unavailable

82

Retaining Ring (1=10Pcs) This part replaces M31002.

31002

Unavailable

83

WHEEL 139 MM - Call your local BRP dealership

503190815

Unavailable

83

Wheel 135, Yellow

503190785

Unavailable

84

Hex Sc. M10x 30 BN73 m8.8 MUP(1=10pcs) - Call your local BRP dealership This part replaces M40314.

40314

$2.94

85

Loctite 243, 10 ml

293800060

$20.77

86

Plastic Bushing This part replaces M541528.

541528

Unavailable

87

Sleeve

M5441980

Unavailable

88

Spacer This part replaces M5440422.

5440422

Unavailable

89

Sliding Pad

503192731

Unavailable

90

BOLT CARRIAGE DIN.603 - Call your local BRP dealership This part replaces M40064.

207764044

Unavailable

91

Adjustment Plate This part replaces M5440645.

5440645

Unavailable

92

Hex. Elastic Stop Nut M8

232581414

Unavailable

Ball Bearing

293350115

Unavailable

CIRCLIP - Call your local BRP dealership

371901700

Unavailable
