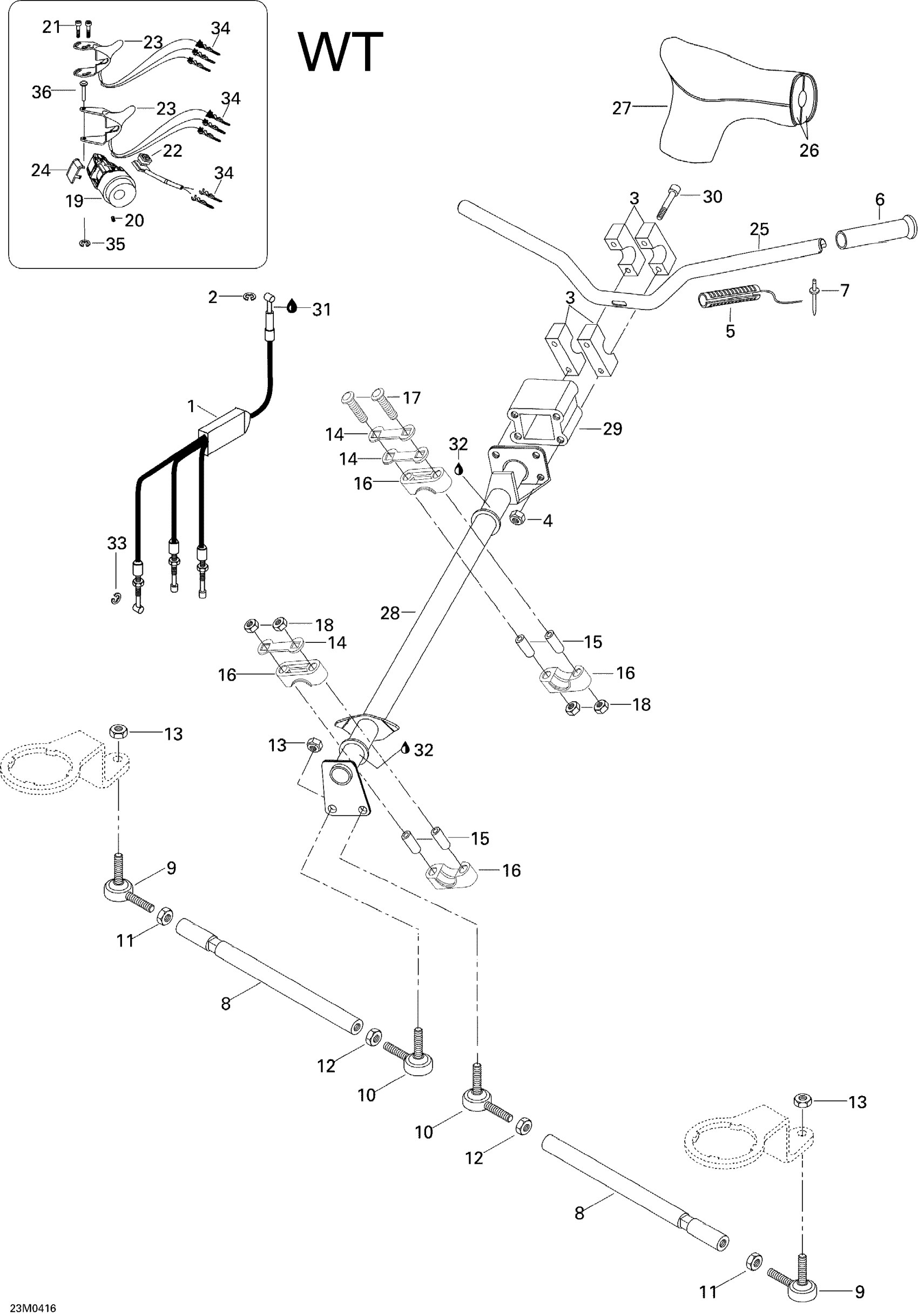

Ski-Doo Skandic WT/SWT 550F , 2004 Steering System WT/ WTLC Diagram

#

Description
Price

1

Throttle Cable

605249117

Unavailable

1

THROTTLE CABLE - Call your local BRP dealership

M5246328

Unavailable

2

Circlip

M31038

Unavailable

3

Support Guidon *Support-Steer.

M548448

Unavailable

4

Hex. Elastic Stop Nut M8

232581414

Unavailable

4

Hex. Elastic Stop Nut M8

232581414

Unavailable

5

Heating Grip

515175664

Unavailable

6

Grip | WAKE This part replaces M5340464.

506152483

$9.85

7

Rivet

36005

Unavailable

8

Rh Tie Rod

M548983

Unavailable

8

Tie Rod LH

M5441066

Unavailable

9

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

10

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

11

RH NUT - Call your local BRP dealership

M33019

Unavailable

12

LH NUT - Call your local BRP dealership

M33017

Unavailable

13

Elastic Flange Nut M10

232501416

Unavailable

14

Stopper Plate

506150600

Unavailable

15

Housing Bushing

506150500

Unavailable

16

Housing Half

506150400

Unavailable

17

Carriage Bolt M8 X 70

207787044

Unavailable

18

Hex. Flange Elastic Nut M8

233281414

Unavailable

19

THROTTLE HOUSING - Call your local BRP dealership

512059489

Unavailable

19

THROTTLE HOUSING - Call your local BRP dealership

512059243

Unavailable

20

Socket Set Screw M8 X 10

414440800

$4.00

21

Flange Screw

732601143

$4.02

22

Kill Switch

515175410

Unavailable

23

Handle Ass'y

512060214

Unavailable

23

Handle Ass'y

512059348

Unavailable

24

Switch Cover

572100901

Unavailable

25

HANDLE BAR - Call your local BRP dealership

605249033

Unavailable

26

REAR PADDING STEERING - Call your local BRP dealership

605250306

Unavailable

26

Rear Padding Steering | WTLC

605248760

Unavailable

26

Front Padding Steering

605250305

Unavailable

26

Front Padding Steering | WTLC

605249281

Unavailable

27

Cover | WT 600

605248761

Unavailable

28

MAIN TUBE - Call your local BRP dealership

605249849

Unavailable

29

EXTENSION - Call your local BRP dealership

605349584

Unavailable

30

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

M40124

Unavailable

31

Was 293550004 Dielectric Grease, 150 g

219704453

Unavailable

32

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

33

Circlip

414753500

$0.59

34

CONNECTOR - Call your local BRP dealership

605642628

Unavailable

35

Circlip | Model-RS

414439000

Unavailable

36

Lever Pin

414438700

$11.14
