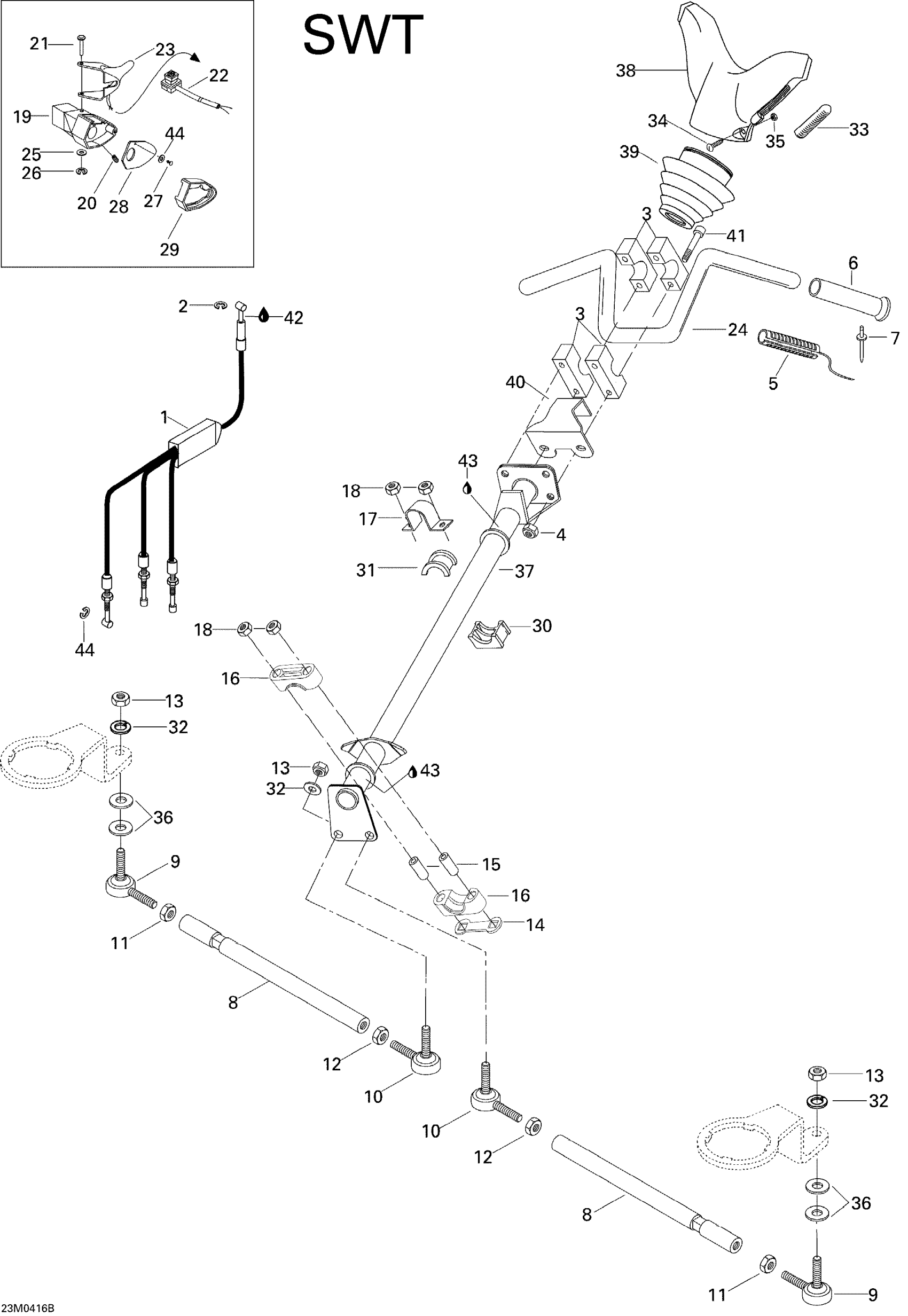

Ski-Doo Skandic WT/SWT 550F , 2004 Steering System SWT Diagram

#

Description
Price

1

Throttle Cable - Call your local BRP dealership This part replaces M5244975.

5244975

Unavailable

2

Circlip

M31038

Unavailable

3

Support Guidon *Support-Steer.

M548448

Unavailable

4

Hex. Elastic Stop Nut M8

232581414

$0.54

5

Heating Grip

515175664

$65.64

6

Grip | WAKE This part replaces M5340464.

506152483

$11.31

7

Rivet

36005

$1.96

8

Rh Tie Rod

M548983

Unavailable

8

Tie Rod LH

M5441066

Unavailable

9

RH BALL JOINT - Call your local BRP dealership

506151492

Unavailable

10

LH JOINT BALL - Call your local BRP dealership

506151845

Unavailable

11

RH NUT - Call your local BRP dealership

M33019

Unavailable

12

LH NUT - Call your local BRP dealership

M33017

Unavailable

13

Elastic Flange Nut M10

232501416

$1.43

14

Stopper Plate

506150600

$4.03

15

Housing Bushing

506150500

$7.27

16

Housing Half

506150400

$7.09

17

Retaining Support

M5343381

Unavailable

18

Hex. Flange Elastic Nut M8

233281414

$1.31

19

Throttle Housing

512060603

$10.25

20

Socket Set Screw M8 X 10

414440800

$3.88

21

Lever Pin

414438700

$10.81

22

Emergency Stop Switch | Includes 91 to 91a

515177362

$82.06

23

Handle Ass'y

512060214

$114.15

24

BAR-HANDLE - Call your local BRP dealership

M529751

Unavailable

25

Flat Washer M5, Stainless

234051600

$0.73

26

Circlip | Model-RS

414439000

$4.01

27

Screw

414473200

Unavailable

28

Plate

512060390

$9.03

29

THROTTLE COVER - Call your local BRP dealership

572044600

Unavailable

30

BUSHING - Call your local BRP dealership

572064500

Unavailable

31

Bushing

572064400

Unavailable

32

Lock Washer

M20015

Unavailable

33

Key Way

572023900

Unavailable

34

Screw

M40156

Unavailable

35

NUT M5 - Call your local BRP dealership

M33062

Unavailable

36

Washer

M31014

Unavailable

37

Main Tube

M5245968

Unavailable

38

Steering Padding

572023800

Unavailable

39

Bellow

M539033

Unavailable

40

Support

M5444196

Unavailable

41

Socket Head Screw M8 X 45

M40286

Unavailable

42

Was 293550004 Dielectric Grease, 150 g

219704453

$36.54

43

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

44

Circlip

414753500

$0.67
