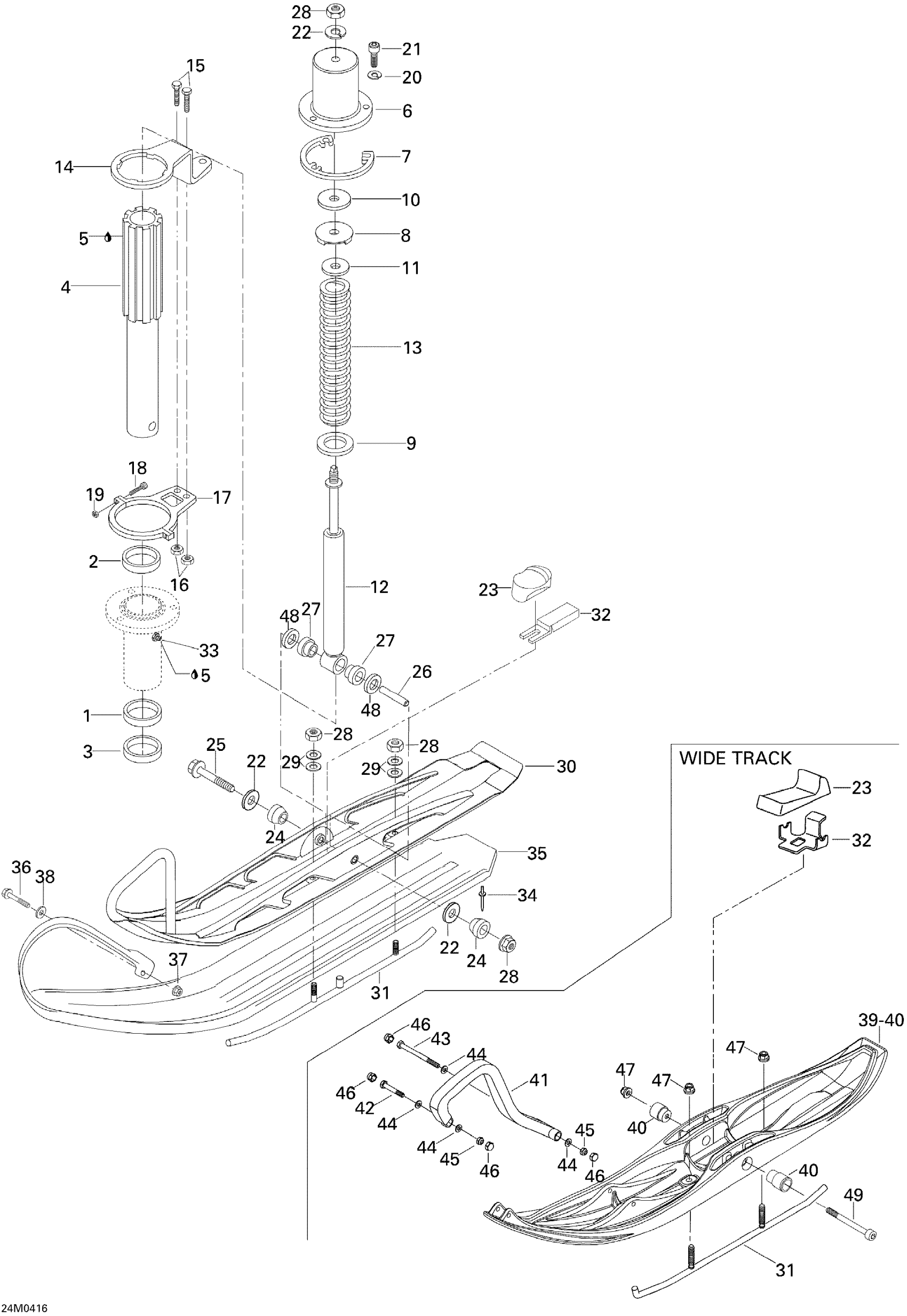

Ski-Doo Skandic WT/SWT 550F , 2004 Front Suspension And Ski Diagram

#

Description
Price

1

Lower Cushion

414803200

Unavailable

2

Upper Cushion

414803100

Unavailable

3

Seal - Call your local BRP dealership This part replaces M316373.

316373

Unavailable

4

Skileg 8 GR - Call your local BRP dealership This part replaces M5245362.

5245362

Unavailable

5

SYNTHETIC GREASE, 400 G - Call your local BRP dealership

219700417

Unavailable

6

PAINTED COVER - Call your local BRP dealership

605249284

Unavailable

7

SPACER - Call your local BRP dealership

503145600

$14.28

8

Stopper

570025800

Unavailable

9

Washer This part replaces M549493.

549493

Unavailable

10

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

11

Absorberfibber washer - Call your local BRP dealership

605455680

Unavailable

12

SHOCK - Call your local BRP dealership

505070920

Unavailable

13

Spring This part replaces M5241330.

5241330

Unavailable

14

STEERING ARM - Call your local BRP dealership

M5244182

Unavailable

15

Hex. Screw M6 X 25

207162544

Unavailable

16

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

17

Support Ass'Y This part replaces M5344180.

619380015

Unavailable

18

Screw

M40146

Unavailable

19

Elastic Stop Nut M4

232541414

$0.48

20

Lock Washer 8 mm

234181401

Unavailable

21

Socket Head Screw M8 X 20

205082044

$1.09

22

WASHER-BLACK - Call your local BRP dealership

M20012

Unavailable

22

WASHER-BLACK - Call your local BRP dealership

M20012

Unavailable

23

Rubber Stopper

605348439

Unavailable

23

STOPPER - Call your local BRP dealership | SWT, WTLC

M5341750

Unavailable

24

Cone Rubber | SWT, WTLC This part replaces M547543.

547543

Unavailable

25

Hex. Screw M10 X 125 | SWT, WTLC

M40354

Unavailable

26

Ski Axle

505073209

Unavailable

26

Ski Cushion | SWT, WTLC This part replaces M549716.

549716

Unavailable

27

Cushion

572034500

Unavailable

28

Elastic Locking Nut M10 X 1.5

233601416

$1.68

29

Flat Washer 10 mm

234001410

Unavailable

30

Welded Ski | SWT, WTLC

M5245338

Unavailable

31

Carbide Round Runner Kit | Europe models This part replaces 605352643.

860202822

Unavailable

31

Carbide Ski Runner | SWT, WTLC

M5344021

Unavailable

32

PLATE SUPPORT - Call your local BRP dealership

605348437

Unavailable

32

Support Plate | SWT. WTLC

M5445639

Unavailable

33

Grease Fitting

M34019

Unavailable

34

Rivet | SWT, WTLC

M36070

Unavailable

35

Ski Liner 200 mm | SWT, WTLC

M5144415

Unavailable

36

Hex. Screw M6 X 25

207162544

Unavailable

37

Elastic Stop Nut M6

232561414

Unavailable

38

Flat Washer 6 mm

234062410

$0.64

39

Ski | Europe models

505073034

Unavailable

40

Bushing | Europe models

605348392

Unavailable

41

Black, Handle

505070963

Unavailable

42

Hex. Screw M8 X 50

207085044

Unavailable

43

Hex. Screw M8 X 90

207089044

$2.82

44

Flat Washer 8 mm

234081410

Unavailable

45

Hex. Elastic Stop Nut M8

232581414

Unavailable

46

Cover | Model-T3

28056

$5.52

47

NUT-FLANGE ELASTIC M10X1.5 (1=10pcs) - Call your local BRP dealership This part replaces M33074.

33074

Unavailable

48

Bushing

605448594

Unavailable

49

Allen Screw M10x140 8.8zn(1=10pcs) | Europe models This part replaces M40225.

40225

$12.52
