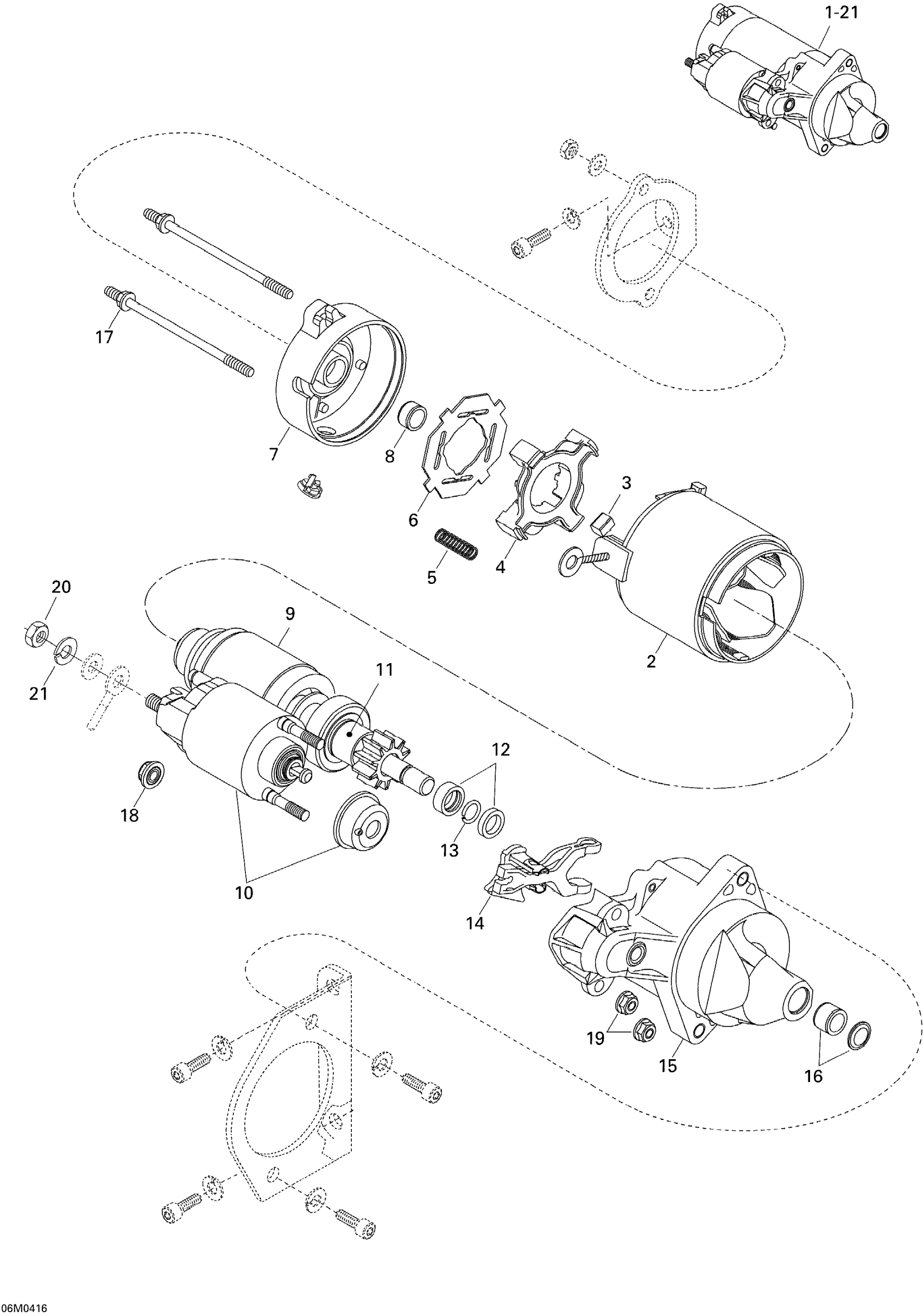

Ski-Doo Skandic WT/SWT 550F , 2004 Electric Starter (552) Diagram

#

Description
Price

1

STARTER ASS'Y - Call your local BRP dealership | Canada / U.S.A

515175795

Unavailable

2

Starter Housing

410213106

Unavailable

3

BRUSH KIT - Call your local BRP dealership

410213107

$15.35

4

BRUSH HOLDER - Call your local BRP dealership

410209700

Unavailable

5

BRUSH SPRING - Call your local BRP dealership

410209800

$1.91

6

INSULATOR - Call your local BRP dealership

410209900

Unavailable

7

HOUSING - Call your local BRP dealership

410213108

$18.43

8

BRASS BUSHING - Call your local BRP dealership

410210100

Unavailable

9

Armature Assy.

410210200

Unavailable

10

SWITCH ASSY. - Call your local BRP dealership

410210300

$194.99

11

STARTER CLUTCH - Call your local BRP dealership

410210400

$201.51

12

NUT - Call your local BRP dealership

410212500

$28.43

13

CIRCLIP - Call your local BRP dealership

410212600

$4.77

14

Lever

410213109

Unavailable

15

Housing

410213113

Unavailable

16

BRASS BUSHING - Call your local BRP dealership

410210900

$8.77

17

BOLT - Call your local BRP dealership

410212000

$10.00

18

NUT - Call your local BRP dealership

410211100

$4.77

19

NUT - Call your local BRP dealership

410211200

$4.77

20

Hex. Nut M8

232081414

Unavailable

21

Lock Washer 8 mm

234181401

Unavailable
