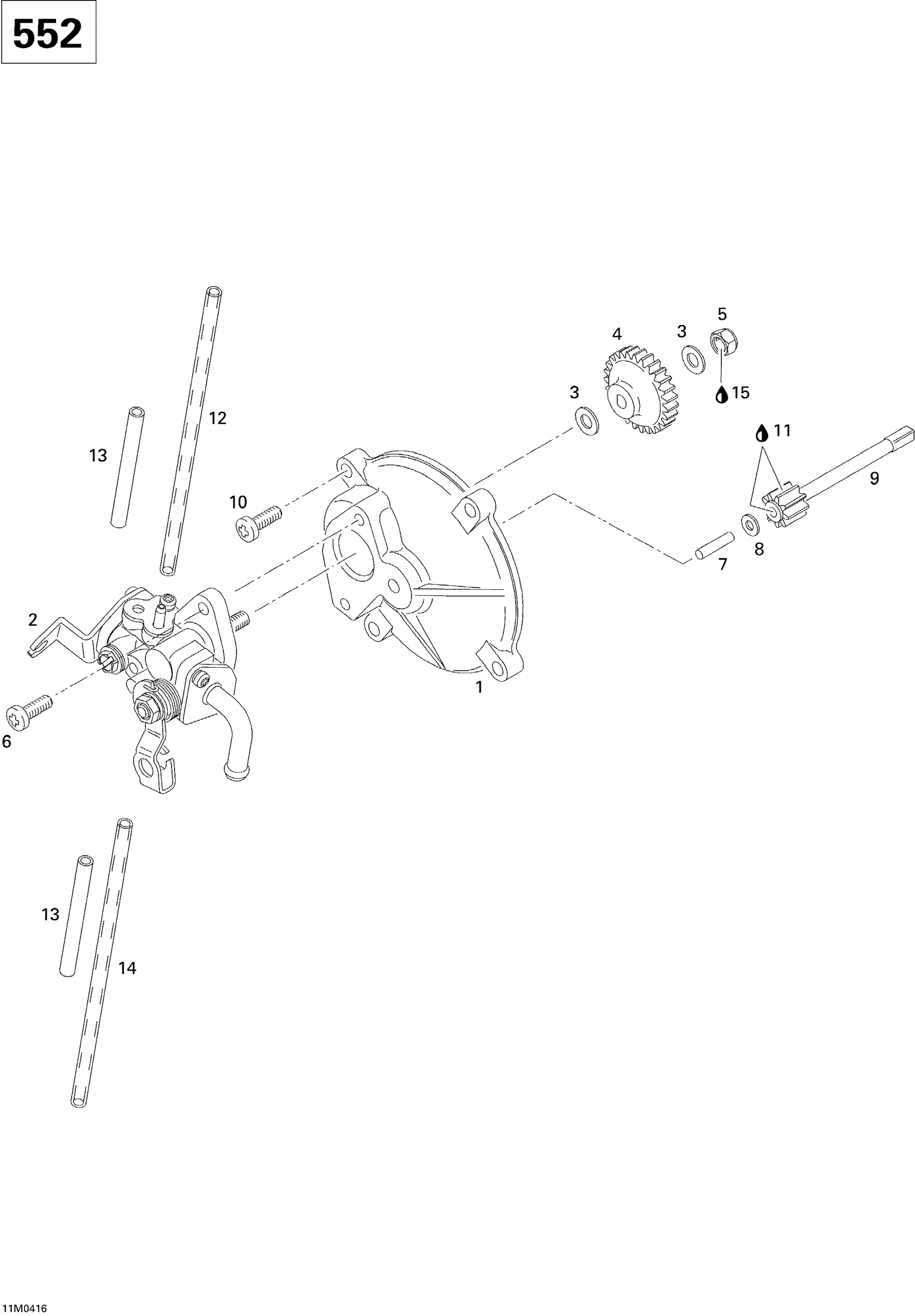

Ski-Doo Skandic WT/SWT 550F , 2004 Oil Injection System (552) Diagram
#
Description
Price
1
PUMP MOUNTING FLANGE - Call your local BRP dealership
420910160
Unavailable
2
OIL PUMP ASSY - Call your local BRP dealership
420889070
Unavailable
3
FLAT WASHER - Call your local BRP dealership
420927945
Unavailable
4
Oil Pump Gear, 27 Teeth
420935930
Unavailable
5
Elastic Stop Nut M6
232561414
Unavailable
6
Screw
420841971
Unavailable
7
NEEDLE PIN - Call your local BRP dealership
420832260
Unavailable
8
Flat Washer 4
420244072
Unavailable
9
Gear, 9 Teeth
420935970
Unavailable
10
SCREW - Call your local BRP dealership
420841976
Unavailable
12
Oil Hose This part replaces 420201241.
414413800
Unavailable
13
Hose 6 Mm 15000Mm Long
219704360
Unavailable
14
OIL LINE 400MM - Call your local BRP dealership
420660495
Unavailable
