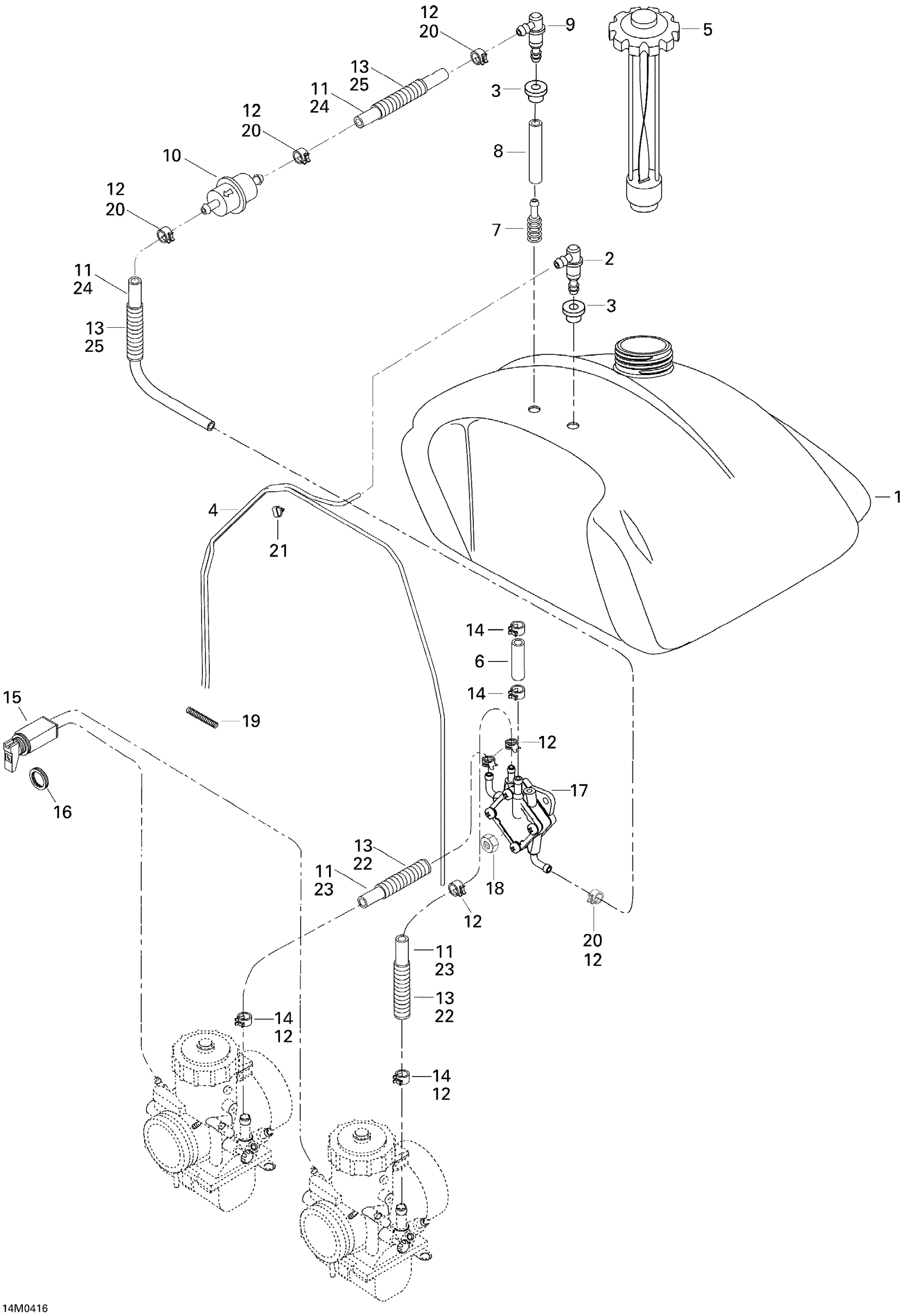

Ski-Doo Skandic WT/SWT 550F , 2004 Fuel System Diagram

#

Description
Price

1

Fuel Tank

M519393

Unavailable

2

Male Connector This part replaces M533535.

533535

Unavailable

3

Grommet

280000674

Unavailable

4

HOSE - Call your local BRP dealership

M39035

Unavailable

5

Fuel Tank Cap

572161200

Unavailable

6

Polyurethane Hose 10000Mm Long

219704410

Unavailable

7

Fuel Filter Strainer | CHALLENGER 1800 5600/5601.

414872100

$9.63

8

Was 415110000 Polyurethane Hose 5.2 mm

219704414

Unavailable

9

CONNECTOR-MALE - Call your local BRP dealership This part replaces M5341709.

5341709

Unavailable

10

Fuel Filter This part replaces 414363600.

605352516

Unavailable

10

Filter

414536500

$3.25

11

Hose 5/8 1000MM LONG - Call your local BRP dealership

219704397

Unavailable

12

Spring Clamp

M27086

Unavailable

12

Spring Clamp

M27086

Unavailable

13

HOUSING - Call your local BRP dealership

M28012

Unavailable

14

Spring Clamp

414420700

Unavailable

15

Choke This part replaces M535482.

535482

Unavailable

16

NUT-PLASTIC - Call your local BRP dealership

512059364

Unavailable

17

FUEL PUMP - Call your local BRP dealership | SUV 550

403800600

Unavailable

17

Fuel Pump

M19113

Unavailable

18

Elastic Stop Nut M6

232561414

Unavailable

19

SPRING - Call your local BRP dealership

414818200

Unavailable

20

Spring Clamp

414415200

$0.83

21

TUBE CLAMP - Call your local BRP dealership

513032923

Unavailable

22

HOUSING - Call your local BRP dealership

M28012

Unavailable

23

Hose 5/8 1000MM LONG - Call your local BRP dealership

219704397

Unavailable

24

Polyurethane Hose, 8 Mm 3000Mm Long

219704412

$27.27

25

HOUSING - Call your local BRP dealership

M28015

Unavailable
