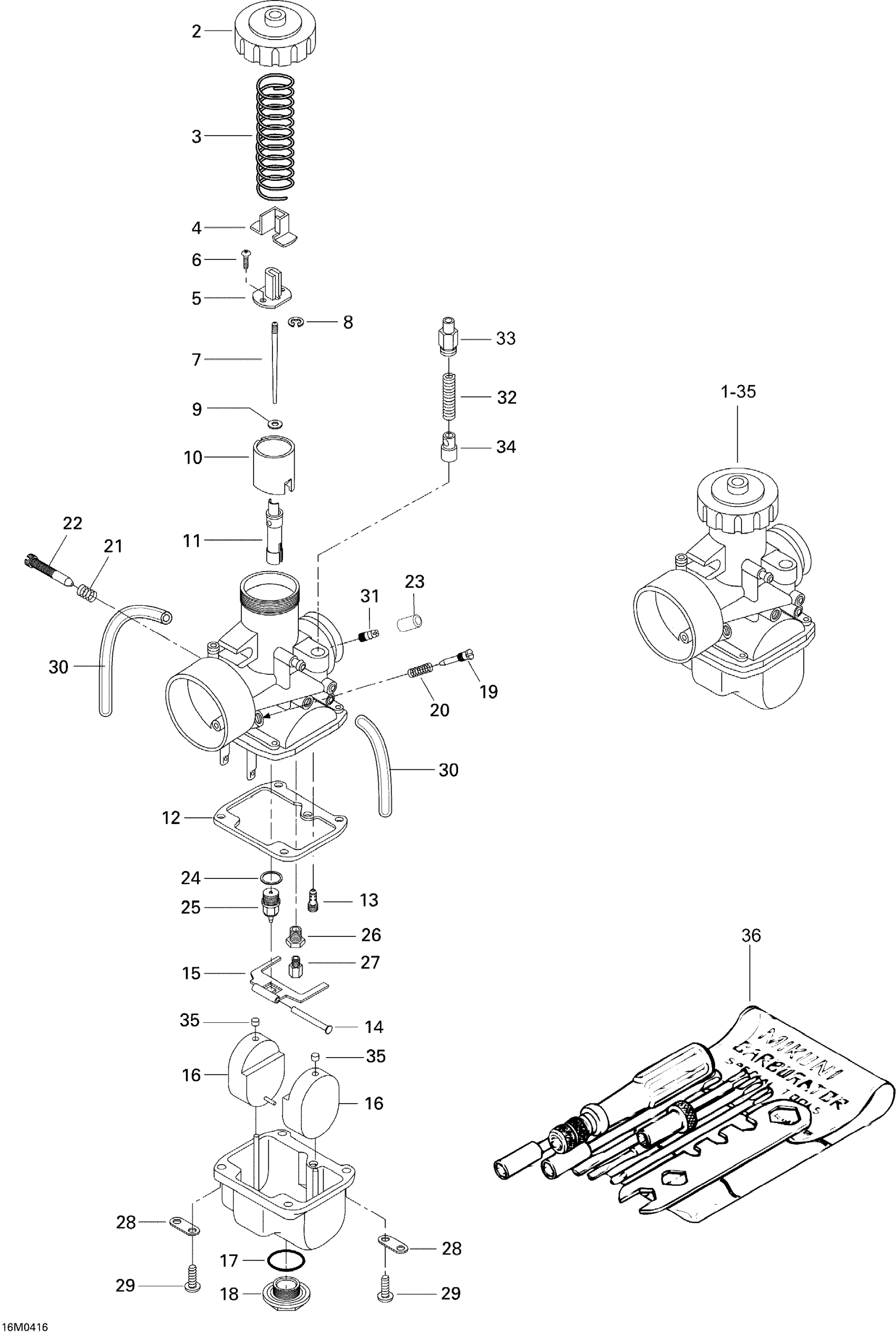

Ski-Doo Skandic WT/SWT 550F , 2004 Carburetors Diagram

#

Description
Price

1

Carburetor Vm-34 | 550F SUV Includes Items 1 to 35

M19171

Unavailable

1

Carburetor Vm-38

M19169

Unavailable

2

Cover

404103700

$32.99

2

COVER - Call your local BRP dealership

404105100

Unavailable

3

Spring

404154800

$24.99

4

Cover

404122100

$18.43

5

CONNECTOR - Call your local BRP dealership

404160800

Unavailable

6

Screw With Washer

404121300

$4.29

7

NEEDLE JET J8-6DH04 - Call your local BRP dealership

404101900

Unavailable

7

NEEDLE JET J8-6DGL24 - Call your local BRP dealership

404162064

Unavailable

8

E-Ring

404152400

$6.55

9

Packing

404117000

$3.39

10

Piston Valve 2.5

404128400

$129.97

11

NEEDLE JET - Call your local BRP dealership

404107000

Unavailable

11

NEEDLE JET NJ 480 P-9 - Call your local BRP dealership

404161805

Unavailable

12

Gasket | Includes 1900a to 1900am

404104200

$6.49

12

GASKET - Call your local BRP dealership

404104700

Unavailable

13

PILOT JET PJ40 - Call your local BRP dealership

404109100

Unavailable

14

Lever Pin

404103300

$6.39

15

Float Lever

404107600

$23.99

15

FLOAT LEVER - Call your local BRP dealership

404105000

Unavailable

16

FLOAT - Call your local BRP dealership

404107100

Unavailable

16

FLOAT - Call your local BRP dealership

404105400

Unavailable

17

O-Ring

404107300

$8.14

17

O-RING - Call your local BRP dealership

404101500

Unavailable

18

Drain Plug Screw

404107400

$23.99

18

DRAIN PLUG SCREW - Call your local BRP dealership

404105600

Unavailable

19

Air Screw

404102300

$14.91

19

AIR SCREW - Call your local BRP dealership

404149000

Unavailable

20

Spring

404101800

$4.39

20

SPRING - Call your local BRP dealership

404139800

Unavailable

21

Spring

404101700

$4.29

22

IDLE SPEED SCREW - Call your local BRP dealership

404102800

Unavailable

23

Cap

404156600

$16.12

24

Seat Washer

404101600

$3.31

25

Needle Valve 1.2

404147500

$43.99

25

Needle Valve 1.5

404147400

$43.99

26

Guide Screw

404105500

$32.99

27

Main Jet 190

404119000

$5.29

27

Main Jet 330

404101400

$8.14

28

PLATE - Call your local BRP dealership

404103000

Unavailable

29

Screw With Lock Washer

404102000

$3.29

30

AIR VENT TUBE - Call your local BRP dealership

404160100

Unavailable

31

NIPPLE - Call your local BRP dealership

404127600

Unavailable

31

Nipple

404153400

$11.51

32

SPRING - Call your local BRP dealership | MAG Side

404127400

Unavailable

33

GUIDE HOLDER - Call your local BRP dealership | MAG Side

404161100

Unavailable

34

PLUNGER ASS'Y - Call your local BRP dealership

404160400

Unavailable

35

Cap

404105800

$6.49

36

TOOL KIT - Call your local BRP dealership

404112000

Unavailable
