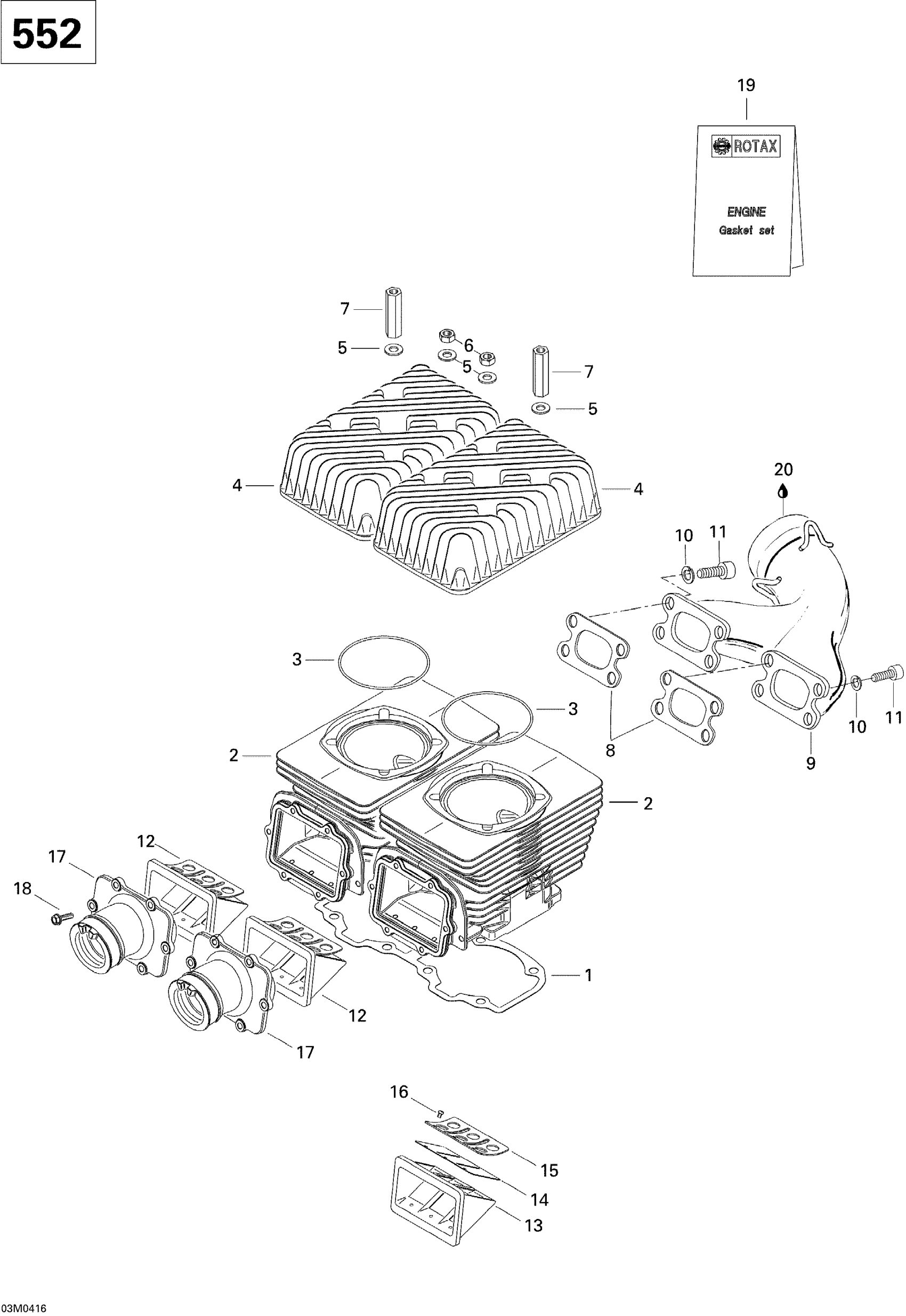

Ski-Doo Skandic WT/SWT 550F , 2004 Cylinder, Exhaust Manifold (552) Diagram
#
Description
Price
1
Gasket 0.3
420950910
Unavailable
1
Gasket 0.4
420950911
Unavailable
1
Gasket 0.6
420950912
Unavailable
2
Cylinder This part replaces 420923978.
420923974
Unavailable
2
REBUILD-CYLINDER 552 - Call your local BRP dealership
421000600
Unavailable
3
O-Ring This part replaces 420850540.
293300026
Unavailable
4
HEAD CYLINDER - Call your local BRP dealership
420923595
Unavailable
5
Flat Washer 8.4 mm
420250315
Unavailable
6
Hex. Nut M8
232081414
Unavailable
7
Distance Nut M8 X 47
420842204
Unavailable
8
Gasket 1.0 mm
420831849
Unavailable
9
EXHAUST MANIFOLD - Call your local BRP dealership
420973512
Unavailable
10
Lock Washer 8 mm
234181401
Unavailable
11
Socket Head Screw M8 X 30
M40135
Unavailable
13
Not Available As Spare Part - Friction Washer
Unavailable
17
Carburetor Socket
420867105
Unavailable
18
Taptite Screw M5 X 16
420941928
Unavailable
19
Gasket Set, Engine
420889911
Unavailable
20
LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership
219704461
Unavailable
