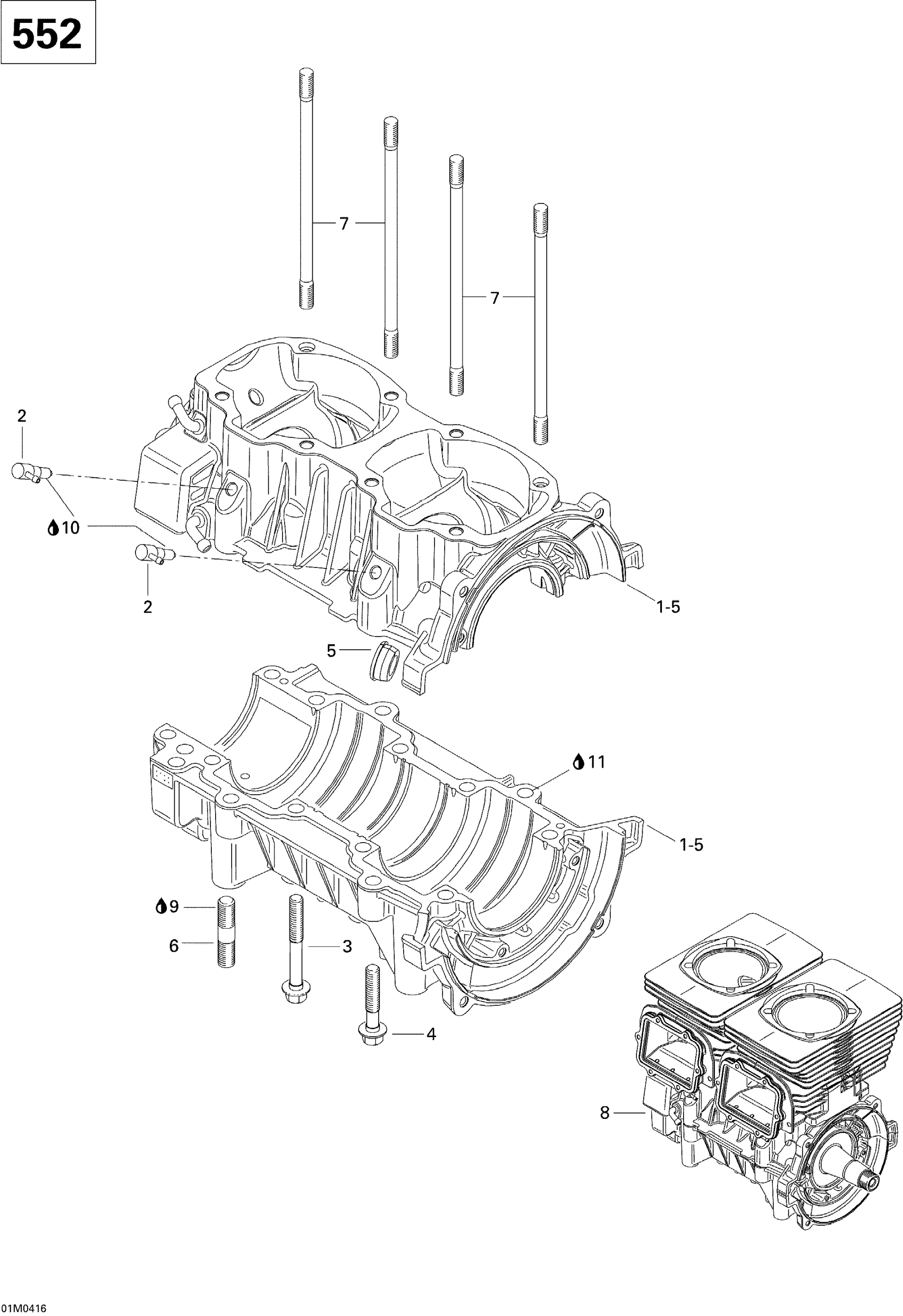

Ski-Doo Skandic WT/SWT 550F , 2004 Crankcase (552) Diagram

#

Description

Price

1

Crankcase Ass'y | Includes Items 1 to 5

420888498

Unavailable

2

Check Valve

420956511

$28.57

3

Hex. Collar Screw M8 X 68.5 This part replaces 420640951.

420640952

Unavailable

4

Hex. Collar Screw M8 x 45

420640432

Unavailable

5

Cable Grommet

420860962

Unavailable

6

STUD M10 - Call your local BRP dealership

420940704

Unavailable

7

Stud M8 X 173.5

420840556

Unavailable

8

SHORT BLOCK 552 - Call your local BRP dealership

420055202

Unavailable

9

Loctite 243, 10 ml

293800060

$20.77

10

Sealant Loctite 648

219703000

Unavailable

11

Sealing Compound Loctite 5366 310Ml

420297907

Unavailable
