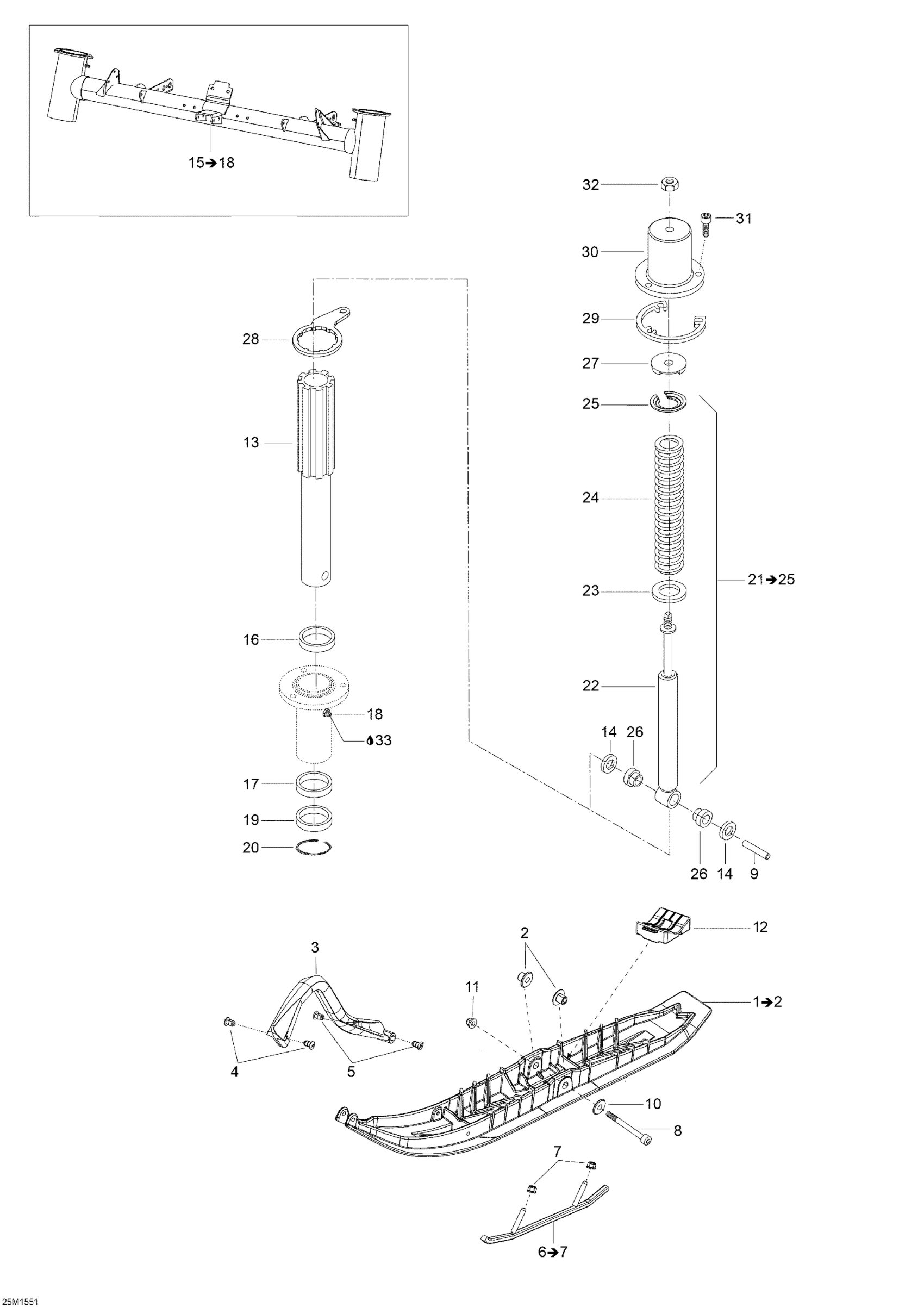

Ski-Doo Skandic WT 900 ACE, 2015 Front Suspension _25M1551 Diagram
#
Description
Price
1
Black, Ski
505073227
Unavailable
2
Ski Bushing
505071781
Unavailable
6
Carbide Runner Kit (Square Runner) | Includes 10f to 10f1
860201044
Unavailable
7
Hex. Flange Elastic Nut M8
233281414
Unavailable
8
Hex. Screw M10 X 130 | Model-RT STD
250000703
Unavailable
9
Ski Axle
505073209
Unavailable
10
Washer
732900049
Unavailable
12
Ski Stopper
505072594
Unavailable
13
Ski Leg
505073200
Unavailable
15
Module Ass'y | Includes 400 to 400d
505073967
Unavailable
16
Upper Cushion
414803100
Unavailable
17
Lower Cushion
414803200
Unavailable
18
Grease Fitting
408200700
Unavailable
19
Seal Oil
505072696
Unavailable
20
Circlip
505072698
Unavailable
21
Not Available As Spare Part - Friction Washer
Unavailable
22
Shock
505073046
Unavailable
23
Washer
505072578
Unavailable
24
Black, Spring
505072745
Unavailable
25
Spring Stopper
505072619
Unavailable
26
Cushion
572034500
Unavailable
27
Rubber Bumber
605354835
Unavailable
28
Steering Arm
505073823
Unavailable
29
Spacer
505073983
Unavailable
30
Suspension Cover LH
505072874
Unavailable
30
Suspension Cover RH
505072875
Unavailable
33
Not Available As Spare Part - Friction Washer
Unavailable
