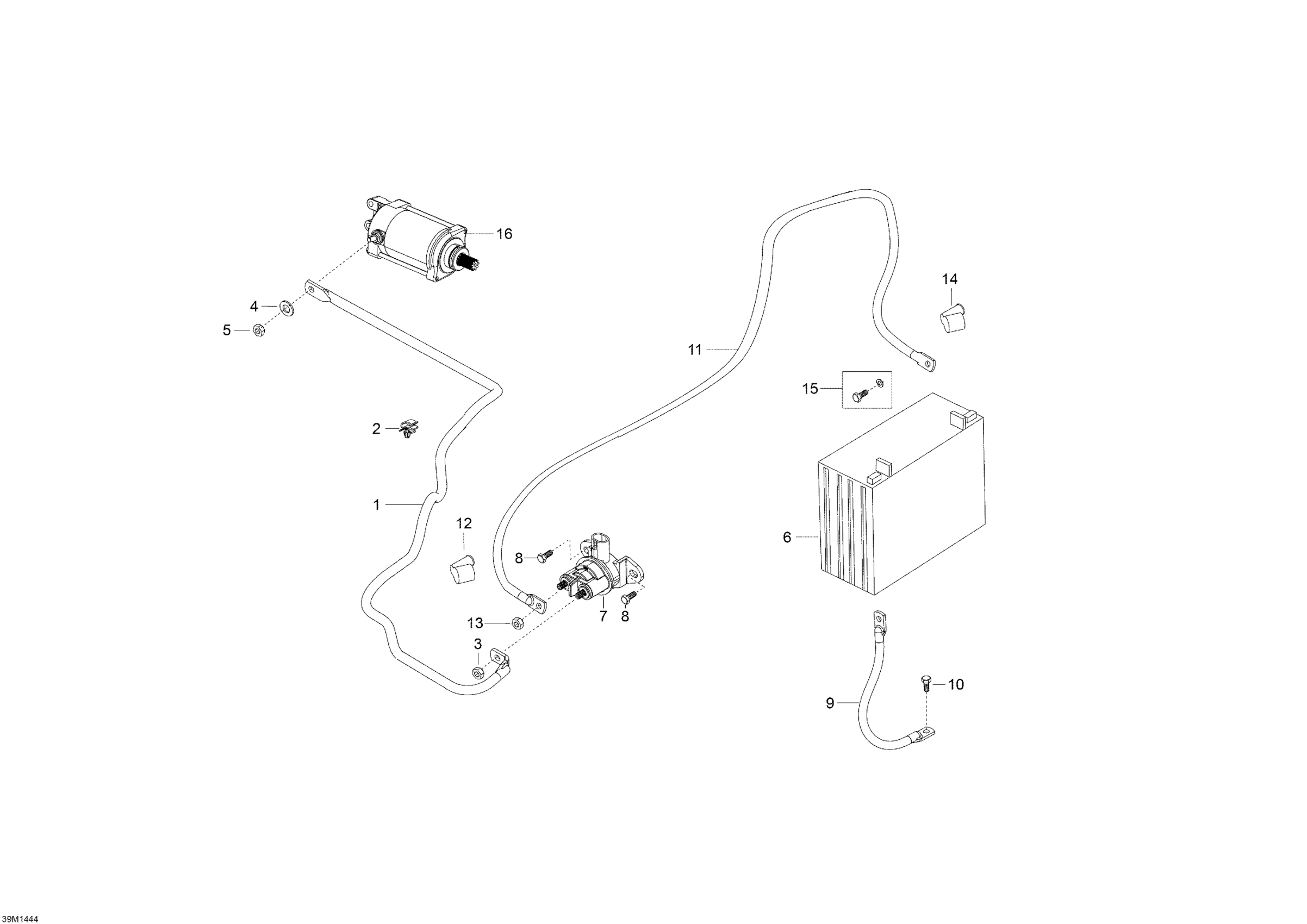

Ski-Doo Skandic WT 600HOETEC XU, 2014 Battery And Starter Diagram

Description

Price

Start Cable

515176806

$34.30

Tie Rap Mount (screwable)

515176795

$4.96

Elastic Stop Nut M6

232561434

$1.78

Flat Washer 6 mm

234061410

$1.19

Elastic Stop Nut M6

232561434

$1.78

Battery Ass'y, 18 Amperes | XT Models, Includes 72 To 73

410301203

$142.45

Starter Relay

278003012

$40.27

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Ground Wire

515176780

Unavailable

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.79

Battery Cable

515176805

Unavailable

Protection Cap

570151000

$17.88

Elastic Stop Nut M6

232561434

$1.78

Protector Cap

710000495

$9.84

Battery Bolt Kit

250000282

$3.39

Starter

515178473

$319.49
