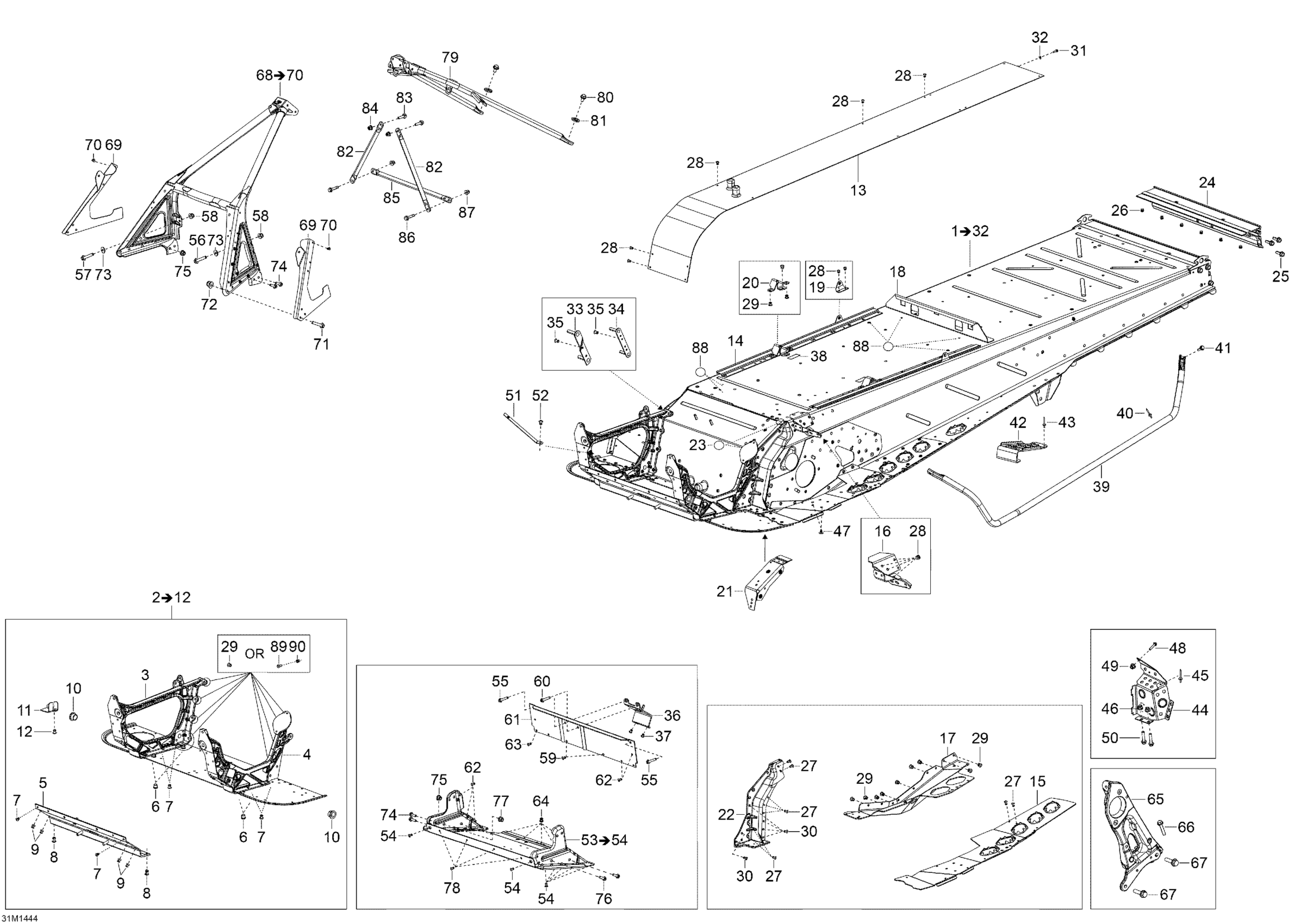

Ski-Doo Skandic WT 600HOETEC XU, 2014 Frame Diagram

#

Description
Price

1

Frame | Includes 1 - 12

518328030

Unavailable

2

Module E | Includes 2 To 12

518328186

$907.66

3

RH Member

518326795

Unavailable

4

LH Member

518326796

$210.74

5

Front Member

518326198

$59.97

6

Clinch Nut Hexsert M8

605636002

$7.31

7

Avex Rivet

390909100

$0.29

8

Hemlock Rivet 6.5 mm

293150120

$7.23

9

Hemlock Rivet, 6.5 mm

293150119

$4.00

10

Leg Bushing

505072690

Unavailable

11

Muffler support plate

518326642

Unavailable

12

Rivet Hucklok

293150163

$2.82

13

Radiator

509000975

$803.05

14

Fastening rail

518326107

$15.35

15

FOOTREST LH - Call your local BRP dealership

518326895

Unavailable

15

FOOTREST RH - Call your local BRP dealership

518326896

Unavailable

16

Fastening Bracket

605355235

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

17

Not Available As Spare Part - Friction Washer

Unavailable

18

BATTERY SUPPORT PLATE - Call your local BRP dealership

518325986

$73.05

19

Seat Box Bracket

518327457

$29.97

20

SUPPORT TUBE BRACKET LH - Call your local BRP dealership

518326109

$40.74

20

SUPPORT TUBE BRACKET RH - Call your local BRP dealership

518326110

$40.74

21

Clinch Nut plate

518326430

$45.99

22

LH Frame Corner

518325524

$52.28

22

RH Frame Corner

518328024

$52.28

23

Adhesive Patch

518325560

Unavailable

24

Rear Profile

518328748

$217.66

25

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

26

Hemlock Rivet, 6.4 mm

293150174

$6.43

27

Avex Rivet

390909100

$0.29

28

Avex Rivet

390909200

Unavailable

29

Hemlock Rivet, 6.5 mm

293150119

$4.00

30

Rivet

293150183

$2.06

31

Socket Screw | Not Shown

205061244

Unavailable

32

Not Available As Spare Part - Friction Washer

Unavailable

33

Gearbox Front Plate

518326123

Unavailable

34

Gearbox Rear Plate

518326124

Unavailable

35

Pop Rivet 3/16"

390402200

$0.26

36

MAG Engine Support | Includes 10a to 10a1

518325943

$26.12

37

Hemlock Rivet, 6.5 mm

293150119

$4.00

38

RUBBER COVER - Call your local BRP dealership

518326357

$9.69

39

LH Footboard Support Tube

518326963

$126.89

39

RH Footboard Support Tube

518326964

$126.89

40

Avex Rivet

390909100

$0.29

41

Hex. Flange Screw M6 x 20

207662056

$0.98

42

Footrest

520000492

$18.43

43

Avex Rivet

390909100

$0.29

44

TOE HOOK LH - Call your local BRP dealership

518326671

Unavailable

44

TOE HOOK RH - Call your local BRP dealership

518326672

Unavailable

45

Avex Rivet

390909200

Unavailable

46

Clinch Nut M6 Hexsert

605636003

$4.12

47

Black, Dart

414644300

$0.78

48

Hex. Flange Screw M6 x 20

207662056

$0.98

49

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

50

Torx Screw M6 X 20

250000722

Unavailable

51

SPRING BRACKET - Call your local BRP dealership

514054616

$8.78

52

Avex Rivet

390909200

Unavailable

53

S Module | Includes 300 to 300a

518326213

Unavailable

54

Avex Rivet

390909200

Unavailable

55

Hexagonal Head Screw

210262050

$1.74

56

Hex. Flange Screw M6 X 25

207662544

Unavailable

57

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

58

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

59

Hemlock Rivet, 6.5 mm

293150119

$4.00

60

Hex. Flange Screw M6 X 16

207661644

Unavailable

61

SUPPORT PLATE - Call your local BRP dealership

518325620

Unavailable

62

Avex Rivet

390909100

$0.29

63

Rivet Hucklok

293150163

$2.82

64

Avex Rivet

390909200

Unavailable

65

PULLEY SUPPORT - Call your local BRP dealership

518327644

Unavailable

66

Hex. Flange Screw M8 X 25, Scotch Grip

207582586

$1.07

67

Hex. Flange Screw M8 X 30, Scotch Grip

207583086

$3.59

68

Front Member Ass'y | Includes 700 to 700d

518326754

Unavailable

69

LH Bumper Fastener

502007077

Unavailable

69

RH Bumper Fastener

502007078

Unavailable

70

Avex Rivet

390909200

Unavailable

71

Hex. Flange Screw M6 X 20

207662044

Unavailable

72

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

73

Flat Washer

224061201

Unavailable

74

Hex. Flange Screw M6 X 20

207662044

Unavailable

75

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

76

Hex. Flange Screw M6 X 20

207662044

Unavailable

77

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

78

Avex Rivet

390909200

Unavailable

79

Upper Support Tube Welded M6 This part replaces 518326103.

518329107

Unavailable

80

Hex. Flange Screw M6 x 20

207662056

$0.98

81

Not Available As Spare Part - Friction Washer

Unavailable

82

Upper Lateral Column Support

518325114

Unavailable

83

Hex. Flange Screw M6 x 20

207662056

$0.98

84

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

85

Center Column Support

518325115

Unavailable

86

Hex Flange Screw M6 x 25

250000522

Unavailable

87

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

88

Adhesive Patch

518325560

Unavailable

89

Hex. Flange Screw M6 X 20

207662044

Unavailable

90

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable
