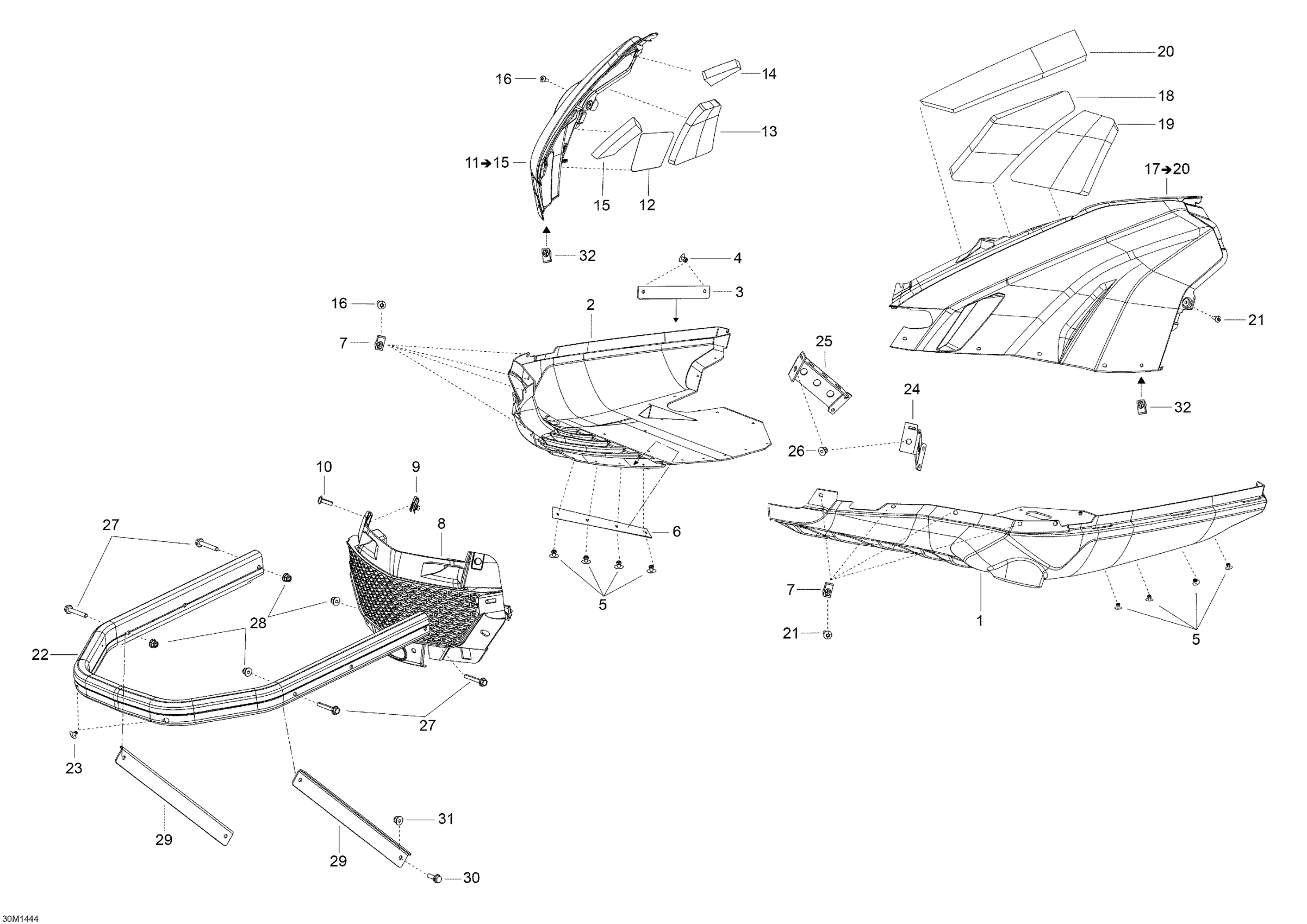

Ski-Doo Skandic WT 600HOETEC XU, 2014 Bottom Pan Diagram

#

Description
Price

1

LH Lower Bottom Pan

502007436

$179.97

2

BLACK BOTTOM-PAN LOWER RH. - Call your local BRP dealership

502006917

Unavailable

3

Heat Isolation Plate

502007255

Unavailable

4

Rivet 3/16"

293150102

$0.71

5

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

6

SUPPORT PLATE - Call your local BRP dealership

502007226

Unavailable

7

Panel Nut M6 X 1.0

250100198

Unavailable

8

Front Grille

502007140

Unavailable

9

Panel Nut M6 X 1.0

250100198

Unavailable

10

Torx Screw M6 X 20

250000722

Unavailable

11

Deep Black, RH Bottom Pan

502008015

Unavailable

12

Insulator

502007133

Unavailable

13

Insulator

502007132

Unavailable

14

Insulator | Model LE, SE

502007008

Unavailable

15

Insulator | Except Package EXTREME

502007009

$17.66

16

Torx Screw M6 X 20

250000722

Unavailable

17

Deep Black, LH Bottom Pan

502008017

Unavailable

18

Insulator

502007088

Unavailable

19

Insulator

502007131

Unavailable

20

Insulator

502007185

$27.66

21

Torx Screw M6 X 20

250000722

Unavailable

22

Clear Bumper

502007170

$129.20

23

Full Moon Dart 8 mm

293730041

$2.12

24

BOTTOM PAN FASTENER LH - Call your local BRP dealership This part replaces 502007137.

619690082

Unavailable

25

BOTTOM PAN FASTENER RH - Call your local BRP dealership This part replaces 502007138.

619690081

Unavailable

26

Clinch Nut M6 Hexsert

605636003

$4.12

27

Hex. Flange Screw M6 X 40

207664044

$2.18

28

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

29

Bumper Support

502006927

Unavailable

30

Hex. Flange Screw M6 X 20

207662044

Unavailable

31

Hex. Flange Elastic Nut M6 x 1.0

233261414

Unavailable

32

Panel Nut M6 X 1.0

250100198

Unavailable
