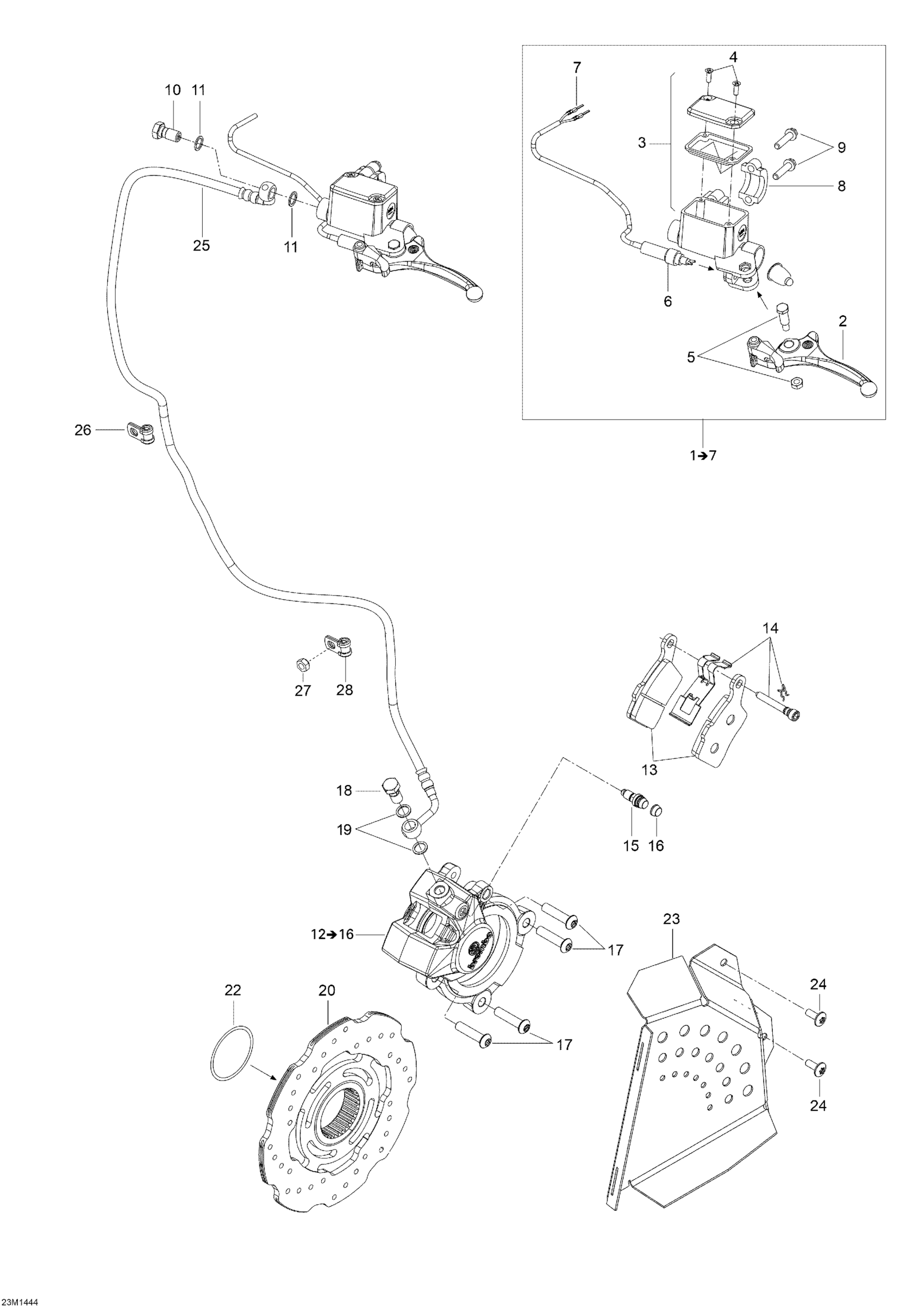

Ski-Doo Skandic WT 600HOETEC XU, 2014 Brakes Diagram

#

Description
Price

1

Master Cylinder Ass'y | Includes 10 to 10h

507032598

$282.81

2

Lever With Parking Lock

507032476

$98.48

3

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$106.69

4

Screw M4 X 20

415129356

$2.10

5

Pin Ass'y

415030000

$17.13

6

Microswitch | Grand Touring

507032479

$94.00

7

Male Terminal

515175232

$1.45

8

Clamps | Includes 75a to 75b

719000049

$22.36

9

Hex. Flange Screw M6 X 25

250000447

$2.00

10

Banjo Bolt

507032551

$5.22

11

Copper Washer

705601628

$4.21

12

Brake Caliper | Includes 200 to 200c

507032720

$323.10

13

Brake Pads Kit

507032473

$49.22

14

Brake Spring Kit

507032722

$35.79

15

Bleeder

507032475

$17.13

16

BOOT-QTS 20 - Call your local BRP dealership

414989700

Unavailable

17

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$1.91

18

Banjo Bolt

507032551

$5.22

19

Copper Washer

705601628

$4.21

20

Disk

507032513

$226.84

22

O-Ring

293300134

$2.18

23

Disk Protector

507032525

$64.15

24

Torx Screw M6 X 16

250000365

$2.00

25

Hose, Steel Braided | WT

507032548

$44.00

26

Clamp

293650256

$5.00

27

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

28

Open Clamp

414176000

$1.81
