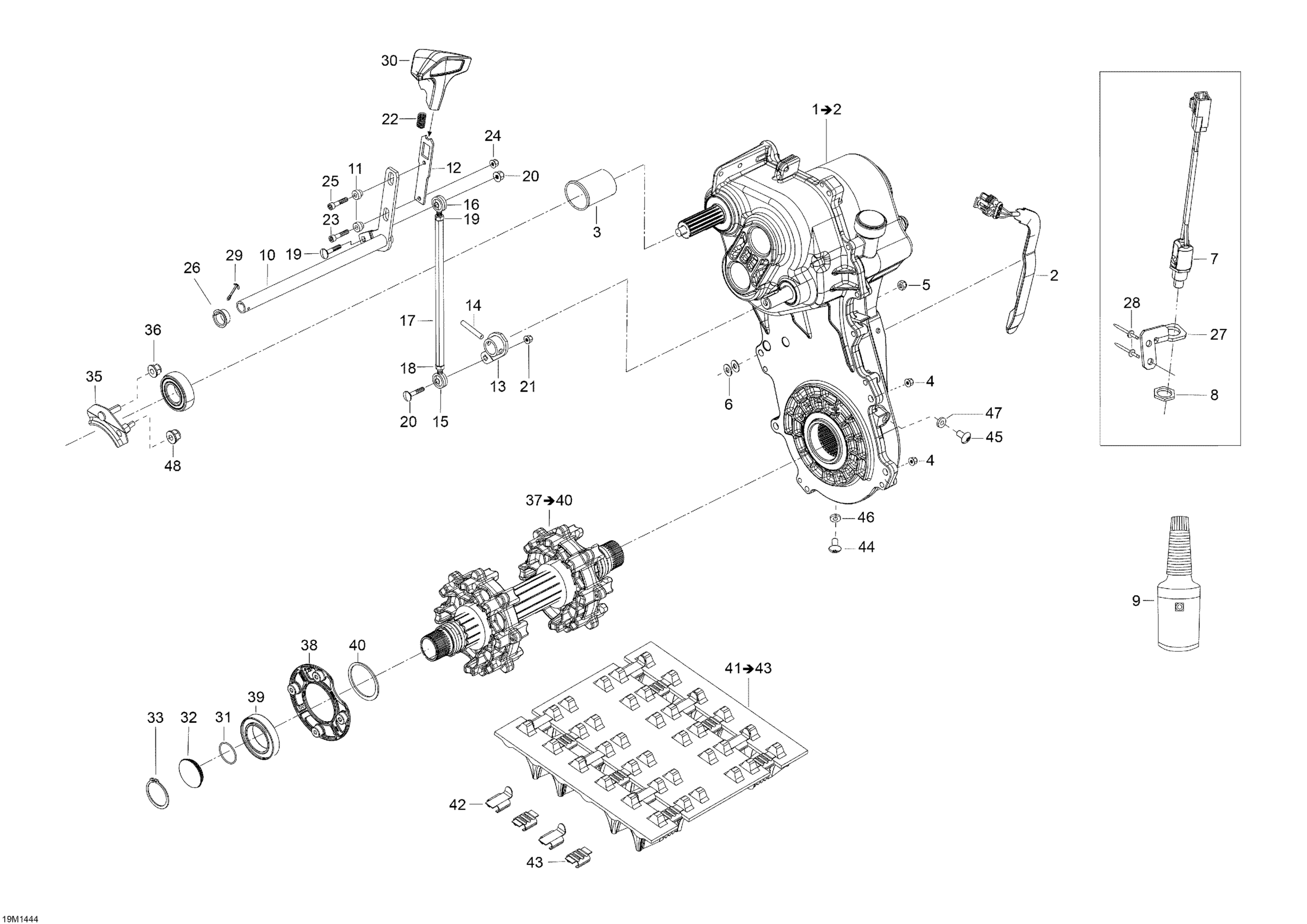

Ski-Doo Skandic WT 600HOETEC XU, 2014 Drive System Diagram

#

Description
Price

1

Transmission Ass'y (Slow Ratio) | Gear Box 2.30

619230077

$2,149.99

2

Rotation Sensor

504152896

$35.35

3

Protective Rubber

504153054

$16.12

4

Hex. Flange Elastic Nut M8

233281414

$1.14

5

Hex. Elastic Stop Nut M8

232581414

$0.47

6

WASHER A8.4X20X1.25 HV140 BLACK ZINC - Call your local BRP dealership

503193095

Unavailable

7

Switch Ass'y

515176472

$71.51

8

Brass Nut

250000373

Unavailable

9

SYNTHETIC OIL 75W-140 - Call your local BRP dealership

293600140

Unavailable

10

Lever Shifter

504153288

$144.58

11

Sleeve

504152787

$26.89

12

Shifter Arm

504153287

$52.28

13

WELDED LEVER - Call your local BRP dealership

504152834

Unavailable

14

Pin

41012

$5.22

15

RH BALL JOINT - Call your local BRP dealership

707000689

Unavailable

16

LH BALL JOINT - Call your local BRP dealership

707000690

Unavailable

17

ROD - Call your local BRP dealership

504152836

Unavailable

18

Hex. Nut M6

232061414

$0.44

19

LH HEX. NUT M6 - Call your local BRP dealership

232066414

Unavailable

20

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.26

21

Elastic Stop Nut M6

232561434

$1.55

22

Spring

504152882

$5.89

23

Socket Screw M5 X 25

205052544

$1.34

24

Flange Elastic Nut M5

233251434

$1.66

25

Forming Screw M5 x 16

250000676

$0.83

26

Bushing

504152890

$42.49

27

Sensor Bracket

504152902

$15.35

28

Rivet Hucklok

293150163

$2.82

29

Cotter Pin

250400035

$2.06

30

Handle

504152837

$76.12

31

O-Ring

293300122

$2.06

32

Magnetic Cap

504152619

$23.05

33

Circlip

504152572

$6.26

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Bearing Housing Ass'y | Includes 2500 to 2500a

504153418

$16.89

36

Hex. Flange Elastic Nut M8

233281414

$1.14

37

Drive Axle Ass'y | With Gear Box 1.98

504153976

$516.89

38

Retaining Ring

504153886

$18.43

39

Ball Bearing

293350059

$30.74

40

Shim

504153207

$9.62

41

Track | Includes 3200 to 3200b

605613004

$1,279.99

42

Track Guide | Track Width 16''

415129528

$3.12

43

Cleat

504152651

$8.22

44

Allen Screw M8 x 10

619230037

$5.89

45

Allen Screw M10 x 16

619230038

$3.92

46

Gasket-ring - Call your local BRP dealership

615580812

Unavailable

47

Seal Ring

619230047

$3.92

48

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11
