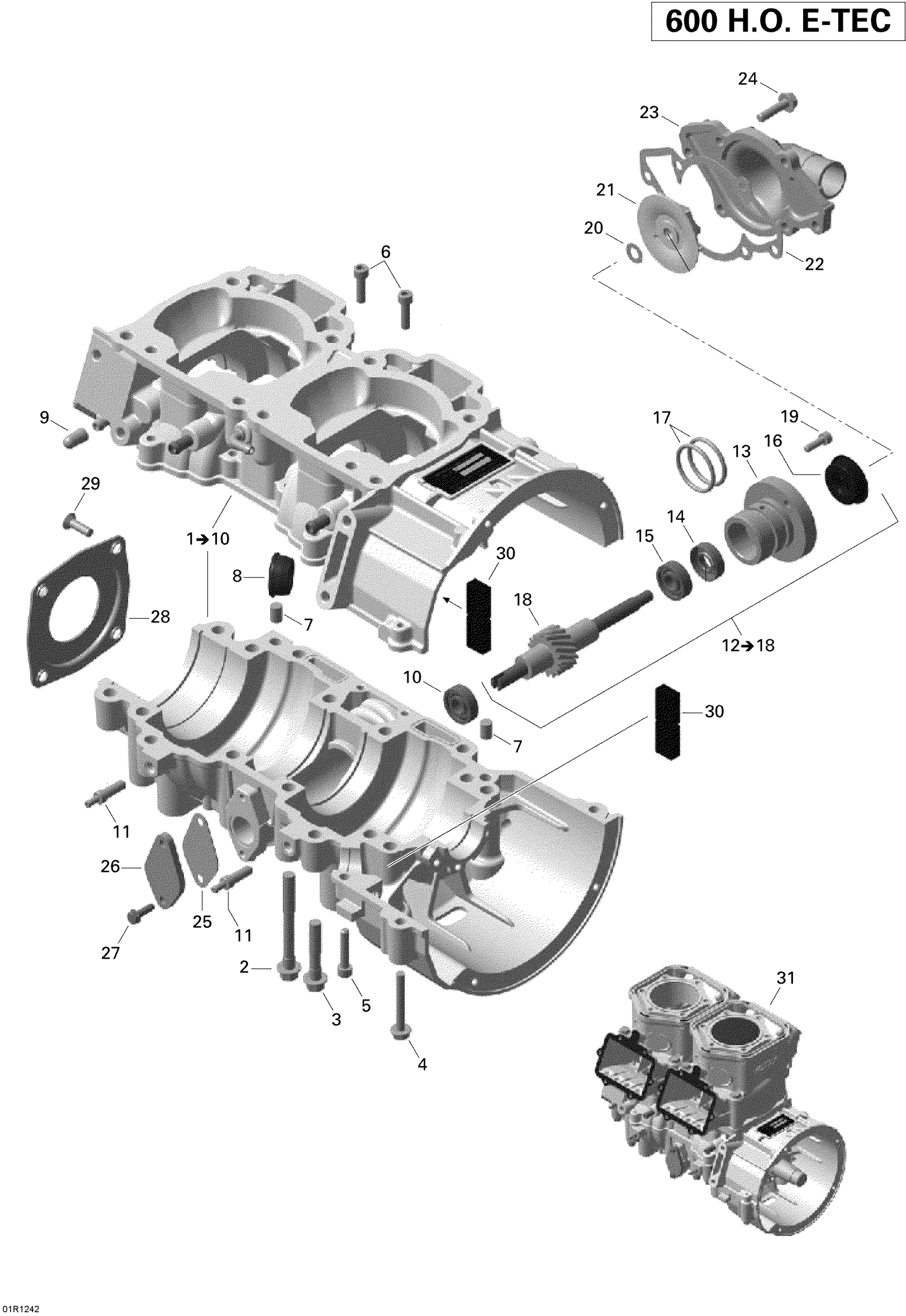

Ski-Doo Skandic WT 600HOETEC XU, 2012 Crankcase Diagram

#

Description
Price

1

Crankcase Ass'y | Includes 1 to 10

420890229

$1,091.76

2

Hex. Collar Screw M8 X 75

420640836

$1.88

3

Hex. Collar Screw M8 x 45

420640432

$1.88

4

Allen Screw M6 x 45 This part replaces 420640311.

420640312

$4.15

5

Socket Head Screw M6 X 30

205063044

$1.63

6

Allen Screw M6 x 22 This part replaces 420840401.

420840403

$1.43

7

Center Pin 8 X 12

420632010

$3.52

8

Cable Grommet

420660890

$12.15

9

Cap

420960770

$3.88

10

Ball Bearing

420232100

$17.88

11

Check Valve

420956071

$23.10

12

Water Pump/Oil Pump Ass'y | Includes 12 to 18

420837421

$332.06

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Oil Seal

420230195

$14.52

15

Ball Bearing

420232100

$17.88

16

Rotary Seal

420650371

$41.01

17

O-Ring

420950890

$4.15

18

Not Available As Spare Part - Friction Washer

Unavailable

19

Allen Screw M5 x 16

420840514

$1.79

20

Thrust Washer

420227945

$3.75

21

Water Impeller

420222505

$17.13

22

Gasket This part replaces 420931810.

420931811

$12.87

23

Water Pump Housing

420922630

$57.43

24

Hex. Screw M6 X 25

420240034

$1.79

25

Gasket This part replaces 420931566.

420931568

$9.03

26

Cover Plate

420810827

$14.10

27

Taptite Screw M5 X 16

420941928

Unavailable

28

Oil Seal Cover

420812422

$14.10

29

Screw M6 X 20

420941436

$2.72

30

Rubber Stopper

420960925

$5.06

31

Short Block 593 Ho E-Tec

420059354

$2,229.99

31

Short Block 593 Ho E-Tec

420059354

$2,229.99
