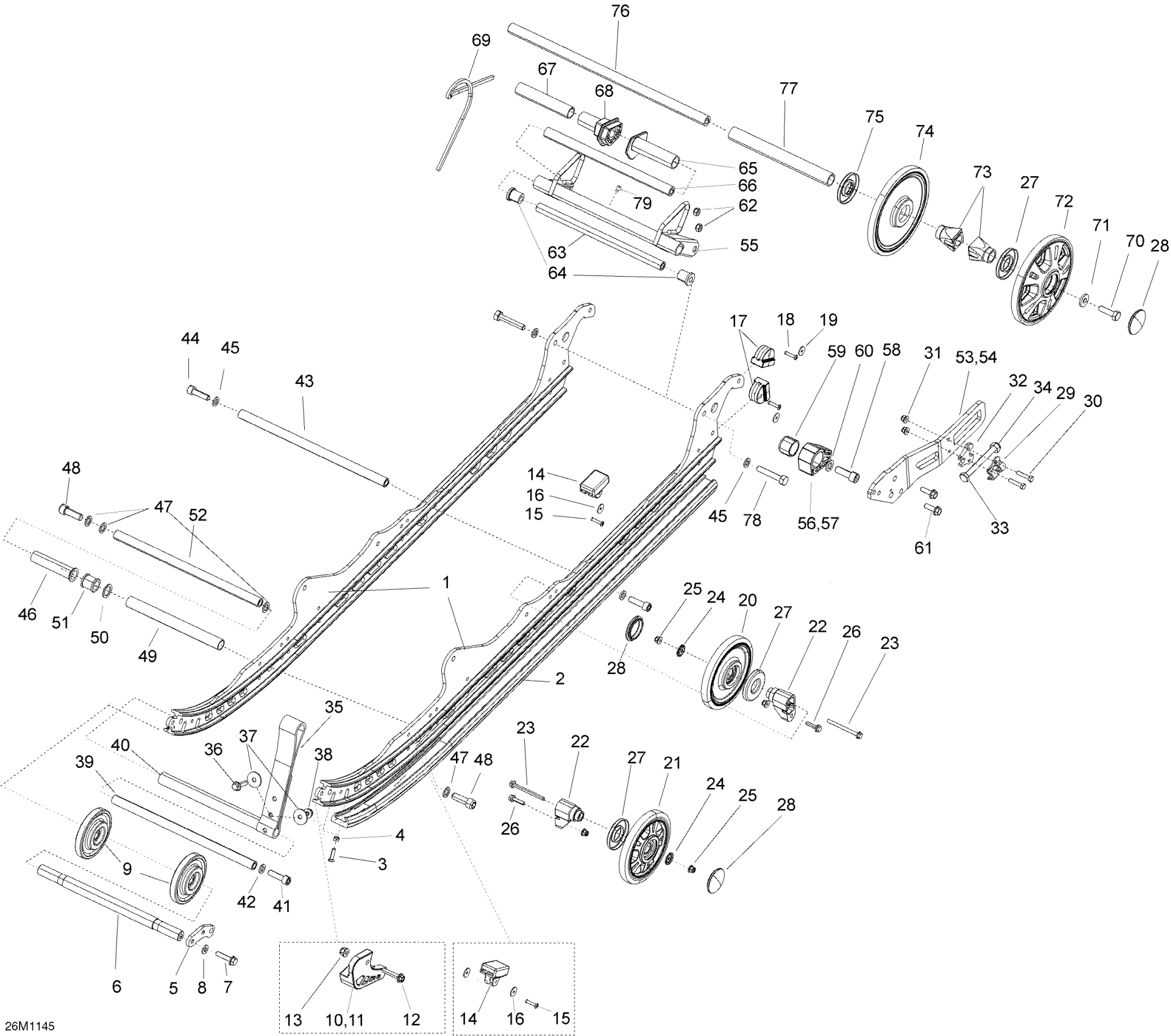

Ski-Doo Skandic WT 600HO ETEC, 2011 Rear Suspension Diagram

#

Description
Price

1

Runner | Model-LE

503193397

$230.74

2

Black Slider, 154"

503192618

$33.05

3

Phillips Screw M6 X 25

208562531

Unavailable

4

Elastic Stop Nut M6

232561414

Unavailable

5

Plate

503192612

$11.45

6

Axle

503192643

$148.43

7

Hex. Flange Screw M8 X 35

250000986

$1.74

8

Washer

503189157

$3.20

9

Black, Wheel Ass'y, 100 mm

503192611

$32.28

10

RH Protector

503192610

$26.89

11

LH Protector

503192609

$26.89

12

Hex. Screw M8 X 40

207084044

Unavailable

13

Hex. Flange Elastic Nut M8

233281414

Unavailable

14

Rubber Stopper

503190576

Unavailable

15

Pop Rivet 3/16"

293150142

Unavailable

16

Washer

503191273

Unavailable

17

Rubber Stopper

503191291

Unavailable

18

Pop Rivet 3/16"

293150142

Unavailable

19

Washer

503191273

Unavailable

20

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$46.12

21

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

Unavailable

22

Casted Support

503193894

Unavailable

23

Hex. Flange Screw M6 X 70

207667044

Unavailable

24

Wheel Cup M6

503191820

Unavailable

25

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

26

Hex. Flange Screw M6 X 25

207662544

Unavailable

27

Labyrinth Seal

503190434

Unavailable

28

Wheel Cap

570063600

Unavailable

29

Tensioner

503192583

$5.85

30

Hex. Screw M6 X 30

207063044

Unavailable

31

Elastic Flange Nut M6 X 1.0

233261416

Unavailable

32

Spacer

503193250

$13.95

33

HEX. SCREW M10 X 100 - Call your local BRP dealership

230100044

Unavailable

34

Elastic Locking Nut M10 X 1.5

233601416

$1.68

35

Stopper Strap

503192360

Unavailable

36

Hex. Flange Screw M8 X 30 | DS 650 X

207683044

Unavailable

37

Flat Washer

224081301

$0.86

38

Hex. Flange Elastic Nut M8

233281414

Unavailable

39

Axle Strap

503192623

$61.51

40

Spacer

503192679

Unavailable

41

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

42

Washer

503189564

Unavailable

43

Axle Strap

503191418

Unavailable

44

Socket Head Screw M10 X 35, Scotch Grip

205503544

$1.39

45

Washer

503189564

Unavailable

46

Center Bushing

503191259

Unavailable

47

Washer

503189276

Unavailable

48

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

49

Spacer

503191421

$46.12

50

WASHER - Call your local BRP dealership

503190697

Unavailable

51

Bushing

503189271

Unavailable

52

Shaft

503191420

Unavailable

53

Rail Pivot RH

503192435

$83.82

54

Rail Pivot LH

503192434

$83.82

55

Welded Pivot | Includes 100c to 100c3

503191414

Unavailable

56

LH BLOCK - Call your local BRP dealership

503191425

Unavailable

57

RH BLOCK - Call your local BRP dealership

503191426

Unavailable

58

Hex. Flange Screw M8 X 25

207682534

Unavailable

59

Block Guide

503189488

Unavailable

60

Washer | 7415/7416. 7417/7418.

503189148

Unavailable

61

Socket Head Screw M12 X 35, Scotch Grip

205523544

Unavailable

62

Hex. Elastic Stop Nut M8

232581414

Unavailable

63

Lower Shaft

503191390

Unavailable

64

Bushing

503189324

$11.17

65

LH Spring Cam

503191668

Unavailable

66

Cam Axle

503191711

Unavailable

67

Spacer

503191713

Unavailable

68

RH Spring Cam

503191190

Unavailable

69

SPRING - Call your local BRP dealership

503191603

Unavailable

70

Hex. Screw With Nylon

250000019

Unavailable

71

Washer

503190439

$5.82

72

Black, Wheel Ass'y, 180 mm | Includes 600 to 600b

503191742

Unavailable

73

Rear Wheel Spacer

503190428

$6.06

74

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

Unavailable

75

Labyrinth Seal

503190682

Unavailable

76

Rear Axle

503191408

Unavailable

77

Spacer

503196316

Unavailable

78

SCREW-HEX.CAPDIN.931 S.GRIP - Call your local BRP dealership

250000471

Unavailable

79

Grease Fitting

408200700

Unavailable

80

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
