Description

Price

1

Master Cylinder Ass'y | Includes 10 to 10h

507032598

$299.97

2

Lever With Parking Lock

507032476

$101.51

3

Clamp And Screw Kit

507032477

$23.05

4

Master Cylinder Reservoir Ass'y | Includes 10c to 10c1

507032478

$109.97

5

Pin Ass'y

415030000

Unavailable

6

Not Available As Spare Part - Friction Washer

Unavailable

7

SCREW M4 X 12 - Call your local BRP dealership

216141260

Unavailable

8

Microswitch | Grand Touring

507032479

$96.89

9

Male Terminal

515175232

$1.49

10

Banjo Bolt

414920500

$8.49

11

Washer

414920600

Unavailable

12

Brake Caliper | Includes 200 to 200c

507032720

Unavailable

13

Brake Pads Kit

507032489

Unavailable

14

Brake Spring Kit

507032722

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Hex. Button Head Screw M8 X 1.25 X 35

250000764

Unavailable

18

Banjo Bolt

414920500

$8.49

19

Washer

414920600

Unavailable

20

Disk

507032513

$235.35

21

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

22

O-Ring

293300134

Unavailable

23

Disk Protector

507032525

$69.97

24

Torx Screw M6 X 16

250000365

$1.74

25

Clamp

293650256

Unavailable

26

HOSE - Call your local BRP dealership

507032515

Unavailable

27

Was 409901800 Tubing (13 mm)

219704400

Unavailable

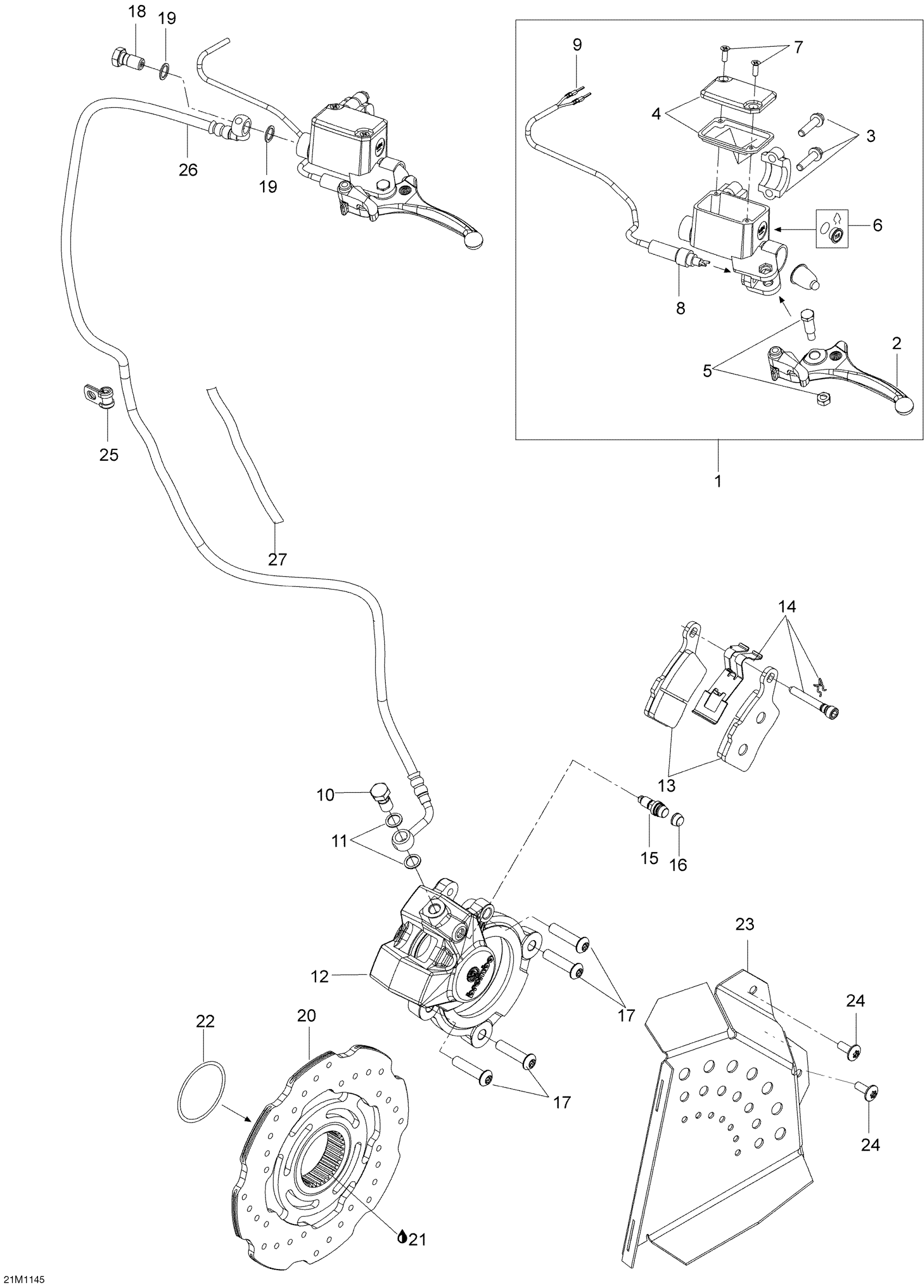

Ski-Doo Skandic WT 600HO ETEC, 2011 Brakes Diagram
