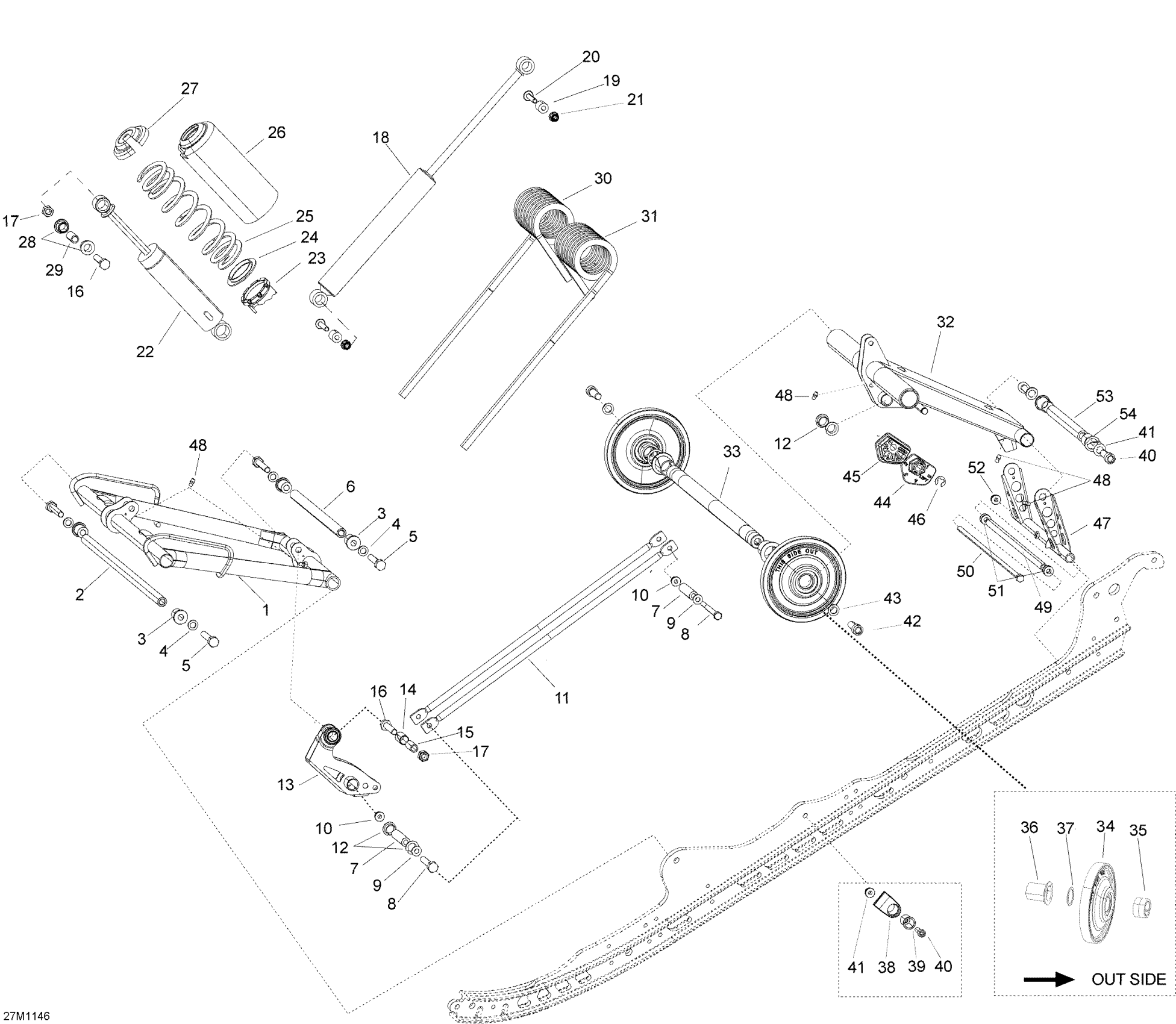

Ski-Doo Skandic WT 600 ACE XU, 2011 Front Arm Diagram

#

Description
Price

1

Front Arm Ass'y | Includes 1400 to 1400a

503193274

$212.28

2

Upper Shaft

503191391

$34.58

3

Bushing

503189324

$11.17

4

Washer

503189564

$0.72

5

SCREW-HEX.CAPDIN.931 S.GRIP - Call your local BRP dealership

250000471

Unavailable

6

Lower Shaft

503191390

$27.66

7

Axle Bar (Long)

503190643

$15.35

8

Hex. Screw M8 X 90

207089044

$2.82

9

Washer

503189157

$3.20

10

Hex. Flange Elastic Nut M8

233281414

$1.14

11

Link Rod

503191765

$17.66

12

Swivel Bushing

503191555

$5.71

13

Rocker

503192211

$78.43

14

Bushing

503193037

$15.35

15

Bushing | Includes 240d to 240d1

503189282

$4.18

16

Hex. Screw M10 X 1.5 X 50

207005044

$3.11

17

Elastic Locking Nut M10 X 1.5

233601416

$1.68

18

Rear Shock

503193520

$238.43

19

Bushing

414936000

$11.55

20

Hex. Flange Screw M8 X 40

207684044

$1.25

21

Hex. Flange Elastic Nut M8

233281414

$1.14

22

Center Shock

503192266

$157.66

23

Adjustment Cam

505073625

$12.18

24

Spring Guide

503191872

$2.18

25

Black, Spring 242MM

503191880

$66.89

26

Protector

503193663

$35.35

27

Spring Stopper

706200881

$10.30

28

Urethane Bushing

503189117

$6.88

29

Bushing | Includes 240d to 240d1

503189282

$4.18

30

Black RH Square Spring

503192377

$109.20

31

Black LH Square Spring

503192378

$109.20

32

Rear Arm

503191398

$258.43

33

Upper Shaft

503191405

$89.20

34

Black, Wheel Ass'y 155 mm | Includes 3070 to 3070b

503191738

$46.12

35

Retaining Ring

503191099

$5.85

36

CUSHION - Call your local BRP dealership

503190619

$4.14

37

Washer

503190328

$11.34

38

Spring Support Kit

861805547

$8.14

39

Spring Support Kit

861805547

$8.14

40

Socket Head Screw M8 X 25

205082544

$0.92

41

Hex. Flange Elastic Nut M8

233281414

$1.14

42

Socket Head Screw M12 X 35, Scotch Grip

205523544

$2.91

43

Washer

503189276

$3.20

44

LH Cam Adjuster

503191565

$13.95

45

RH Cam Adjuster

503191566

$13.95

46

E-Circlip

293370013

$0.62

47

Pivot Arm | Includes 3000j to 3000j3

503195154

$96.12

48

Grease Fitting

408200700

$2.80

49

Axle Pivot

503191396

$78.43

50

Bolt 369MM

503195156

$25.35

51

Washer

503189157

$3.20

52

Hex. Flange Elastic Nut M8

233281414

$1.14

53

Lower Shaft

503192330

$46.12

54

Cushion

503191640

$5.71

55

SUSPENSION GREASE, 10 X 400 G - Call your local BRP dealership

293550033

Unavailable
