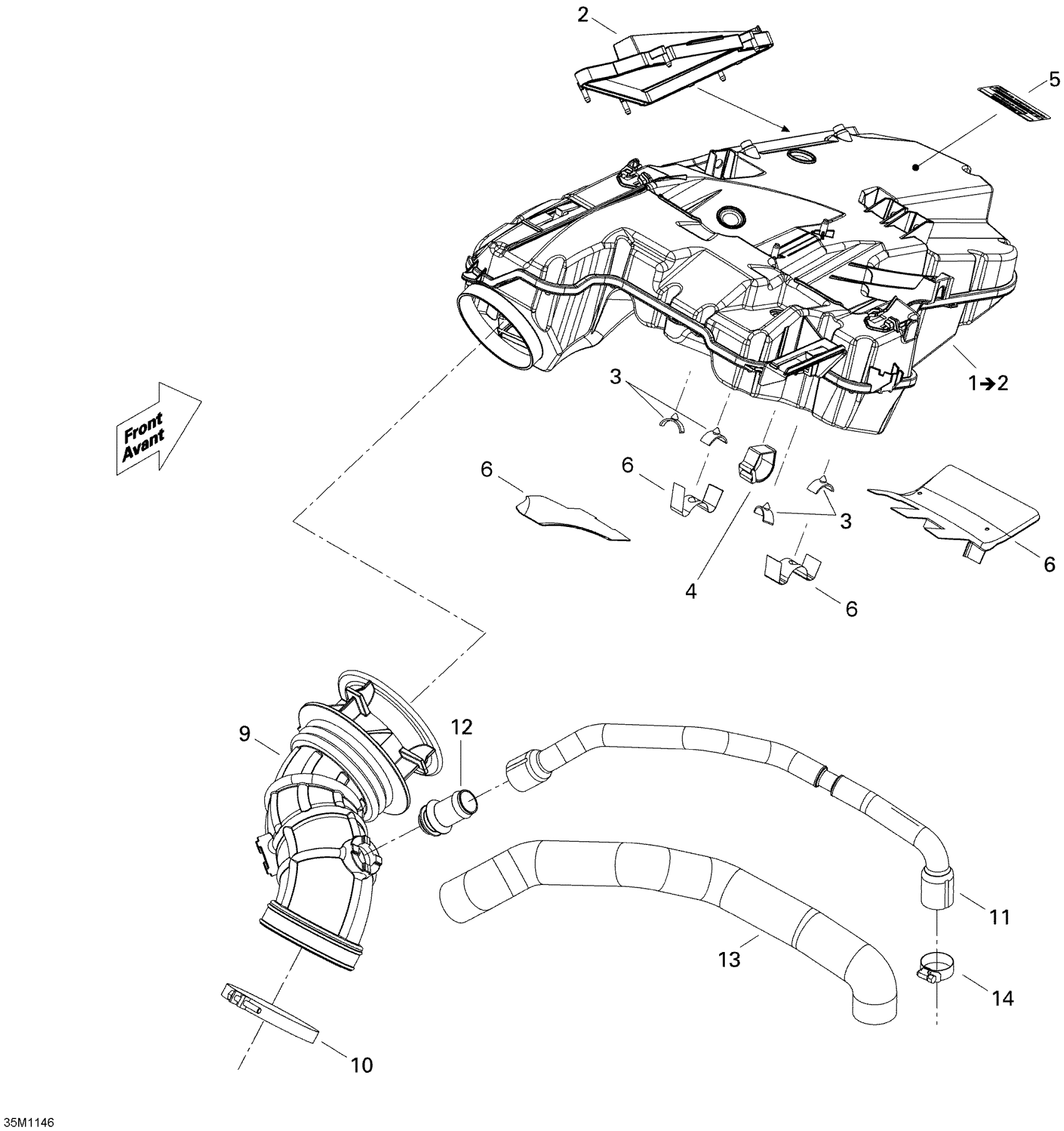

Ski-Doo Skandic WT 600 ACE XU, 2011 Air Intake System Diagram

#

Description

Price

1

Chamber Ass'y

508000790

$191.51

2

Air Filter

508000609

$46.12

3

Stopper

508000537

$7.35

4

Velcro Strip

508000820

$7.35

5

Caution Label, Air Intake

516004651

Unavailable

6

REFLECTIVE SHEET (1M X 1M) - Call your local BRP dealership This part replaces M44001.

44001

Unavailable

9

HOSE-INTAKE - Call your local BRP dealership

508000719

Unavailable

10

GEMI Clamp

293650212

$6.26

11

FORMED VENT HOSE - Call your local BRP dealership

508000647

Unavailable

12

Breather Valve

273000234

$10.63

13

Tube Isolator

508000648

$15.35

14

Tridon Gear Clamp

293650172

$2.68
