Description

Price

1

Hose

509000634

$23.82

2

Aba Gear Clamp, 26-38 MM

509000443

$5.68

3

HOSE TUNNEL RAD.->ENGINE-FILLING - Call your local BRP dealership

509000805

Unavailable

4

Aba Gear Clamp, 26-38 MM

509000443

$5.68

5

Water Pipe

509000800

$105.35

6

Engine Outlet Hose

509000932

$17.66

7

Aba Gear Clamp, 26-38 MM

509000443

$5.68

8

Air Radiator Hose

509001000

$95.35

9

Clamp With Rubber D=30

605627008

$19.20

10

Aba Gear Clamp, 26-38 MM

509000443

$5.68

11

Crimp Clamp

293650099

$4.60

12

HOSE, FRONT AIR RAD->TUNNEL RAD - Call your local BRP dealership

509000707

$42.28

13

Crimp Clamp

293650099

$4.60

14

Aba Gear Clamp, 26-38 MM

509000443

$5.68

15

Cooling Fan

509000838

$213.05

16

Insulation

509000718

$59.20

17

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

18

Radiator support | Includes 3340 to 3340a

509000791

$91.51

19

HEX. TAPING SCREW - Call your local BRP dealership This part replaces M40870.

40870

Unavailable

20

Bushing

605453745

$11.52

21

Hex. Screw M6 X 20 | XT Models

207162044

$0.62

22

Flat Washer 6 mm

234062410

$0.64

23

Lock Washer M6, Black

234161471

$0.52

24

Grommet

709000582

$4.38

25

Radiator

509000787

$214.58

26

AIR DEFLECTOR LTS - Call your local BRP dealership

509000784

Unavailable

27

Deflector Clip

509000703

$39.97

28

PIPE - Call your local BRP dealership

509000644

$18.43

29

HOSE - Call your local BRP dealership

509000698

$11.15

30

Oeticker Gear Clamp, 25.6-706R

509000442

$4.12

31

Crimp Clamp

293650099

$4.60

32

Protector Tube

707001349

$19.20

33

Tie-Rap 180 mm

414115200

$0.09

34

Coolant Tank

509000368

$86.89

35

Hex. Flange Screw K50 X 2.24 X 16

241151640

$1.20

36

Hose 6 Mm 15000Mm Long

219704360

$104.62

37

Radiator Pressure Cap

509000180

$11.69

38

Clip

710000992

$4.00

39

Hex. Flange Screw M6 X 16, Scotch Grip

207561634

$1.74

40

BREATHER HOSE - Call your local BRP dealership

509000750

$19.20

41

Crimp Clamp, 15.3-706R

293650047

$2.64

42

Was 409901800 Tubing (13 mm)

219704400

$9.40

43

Crimp Clamp, 15.3-706R

293650047

$2.64

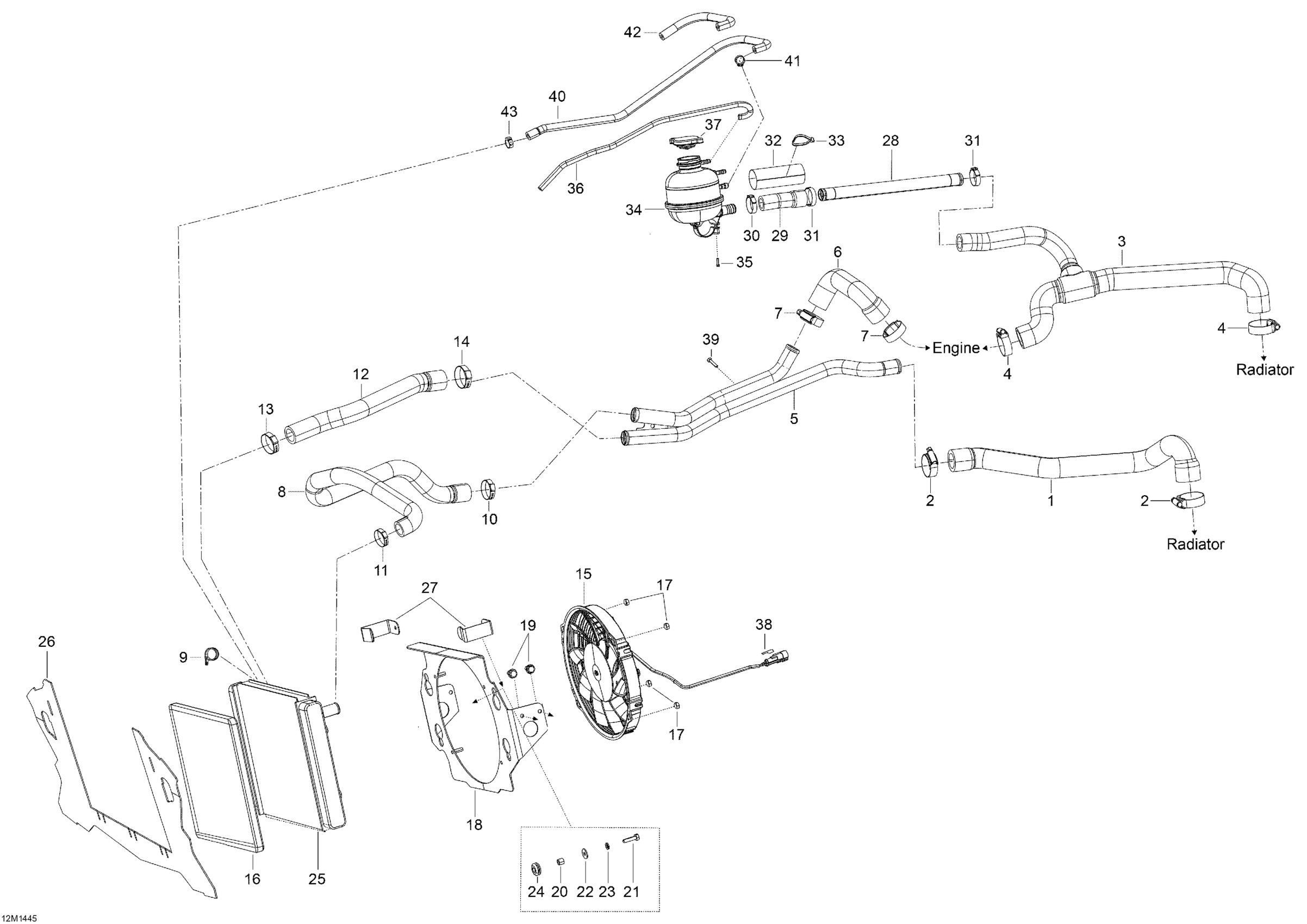

Ski-Doo Skandic WT 600 ACE (4-strokes) XU, 2014 Cooling System Diagram
