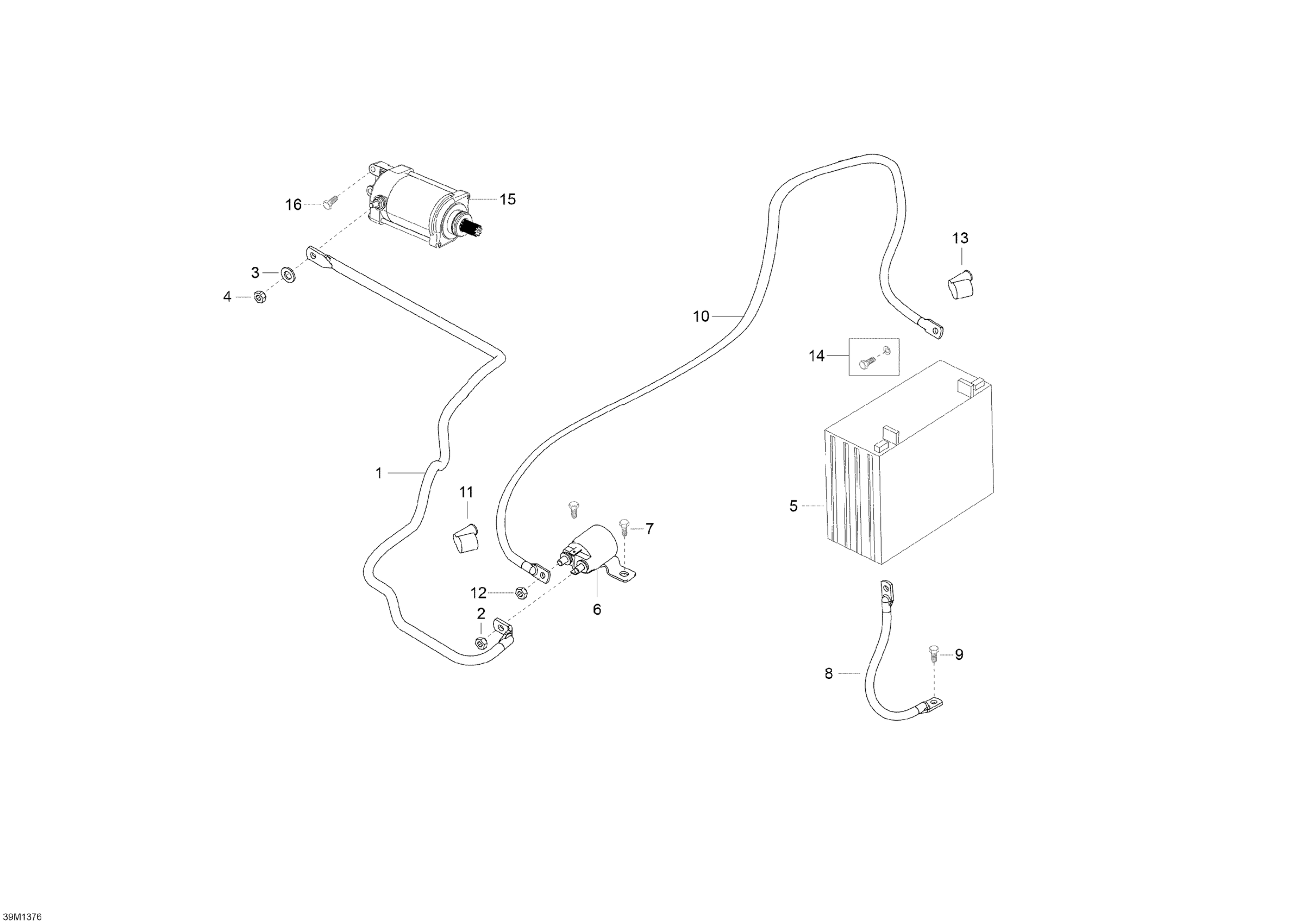

Ski-Doo Skandic WT 600 ACE (4-strokes) XU, 2013 Battery And Starter Diagram

Description

Price

Battery Wire

515176945

$56.89

Elastic Stop Nut M6

232561434

$1.55

Flat Washer 6 mm

234061410

$1.04

Elastic Stop Nut M6

232561434

$1.55

Battery | Includes 900 to 900a

515176151

$174.17

Starter Relay

515176011

$51.97

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

Ground Wire

515176777

Unavailable

Hex. Flange Screw M6 X 16

207661644

$0.61

Battery Wire

515176778

Unavailable

Protection Cap

570151000

$18.43

Elastic Stop Nut M6

232561434

$1.55

Protector Cap

710000495

$10.14

Battery Bolt Kit

250000282

$2.95

Electric Starter Ass'y

420892435

$297.99

Torx Flange Screw M6 X 30

420440647

$1.97
