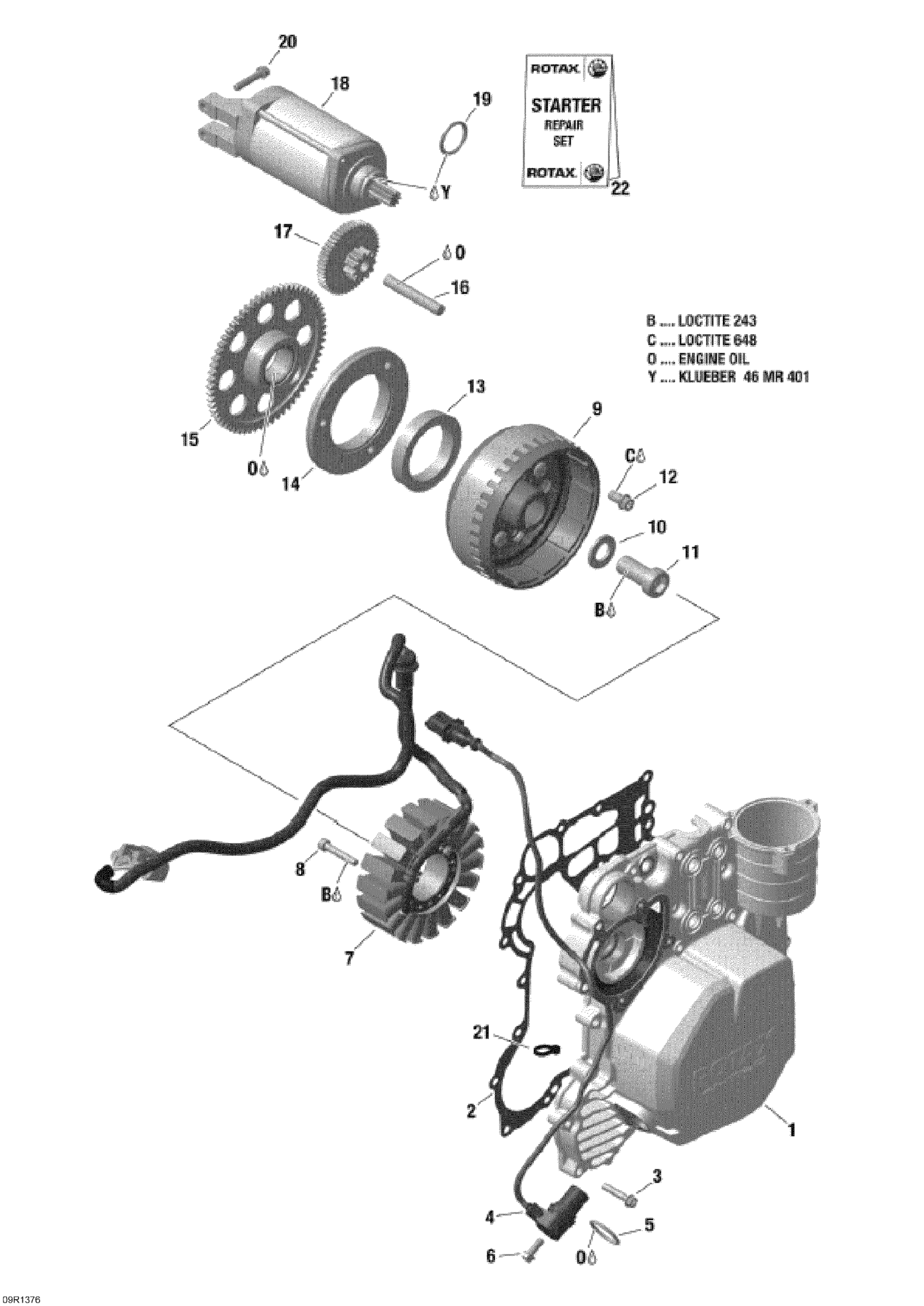

Ski-Doo Skandic WT 600 ACE (4-strokes) XU, 2013 Magneto And Electric Starter Diagram

#

Description
Price

1

Cover

420911052

$189.99

2

Gasket

420431640

$36.54

3

Torx Flange Screw M6 X 30

420440647

$2.09

4

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$114.99

5

O-Ring

420431580

$15.49

6

Torx Flange Screw M6 X 16

420440162

$3.29

7

Stator Plate 650W

420685635

$319.49

8

Allen Screw M6 X 40

420241956

$3.29

9

Magneto Flywheel 650W

420686190

$559.99

10

Shim

420627270

$4.19

11

Socket Head Screw M16 X 35

420241549

$8.79

12

Torx Flange Screw M8 X 16

420440854

$4.49

13

Sprag Clutch

420659113

$264.99

14

Sparg Clutch Housing

420659263

$159.99

15

Free Wheel Gear, 64 Teeth

420434238

$114.99

16

Needle Pin

420229475

$15.49

17

Starter Double Gear 11/49 T

420634741

$199.99

18

Electric Starter Ass'y

420892435

$297.99

19

O-Ring

420250140

$8.79

20

Torx Flange Screw M6 X 30

420440647

$2.09

21

Tie Rap

420866714

$1.99

22

Carbon Brush Set This part replaces 420881140.

420881141

$69.99

B

Loctite 243, 10 ml

293800060

$21.49

C

Not Available As Spare Part - Friction Washer

Unavailable

O

Not Available As Spare Part - Friction Washer

Unavailable

Y

Was 420297616 Klueber Grease, 60g

219704464

$23.99
