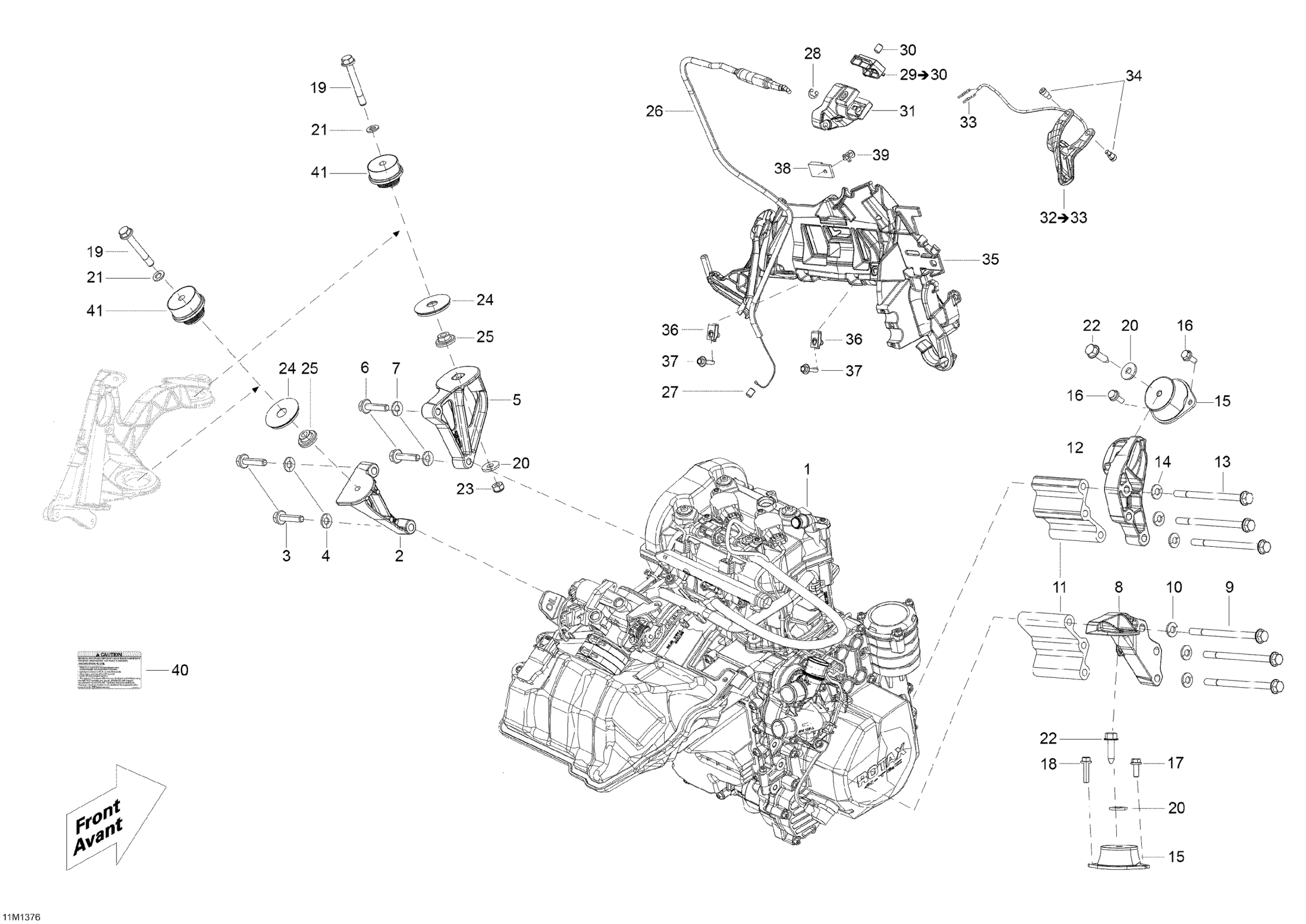

Ski-Doo Skandic WT 600 ACE (4-strokes) XU, 2013 Engine And Engine Support Diagram

#

Description
Price

1

Long Block 602

420060203

$3,887.99

2

Rear Support PTO

512061139

$25.99

3

Hex. Flange Screw M8 X 35

250000986

$2.19

4

Conical Spring Washer M8

234281474

$1.49

5

Front Support PTO

512061140

$21.99

6

Hex. Flange Screw M8 X 35

250000986

$2.19

7

Conical Spring Washer M8

234281474

$1.49

8

Rear Support MAG

512061142

$29.99

9

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$13.49

10

Conical Spring Washer M8

234281474

$1.49

11

Shim

512060505

$44.99

12

Front Support, MAG

512060663

$19.99

13

Hex. Flange Screw M8 X 125, Scotch Grip

230582544

$13.49

14

Conical Spring Washer M8

234281474

$1.49

15

Rubber Mount

512060729

$67.99

16

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.99

17

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.99

18

Hex. Flange Screw M6 X 25, Scotch Grip | Package-2X4, 4X4

207562534

$2.19

19

Hex. Flange Screw M8 X 60, Scotch Grip

207586044

$2.19

20

Yellow, Washer

503183200

$3.29

21

Flat Washer With Teflon 8 mm

250200008

$3.89

22

Cone Screw, M8 X 30

250000257

$1.89

23

Hex. Elastic Stop Nut M8

232581414

$1.49

24

Stopper

512061203

$14.49

25

Spacer

512060285

$19.99

26

Throttle Cable

512060607

$81.99

27

Cable Guide

707000434

$11.49

28

Circlip

414274500

$1.49

29

Upper Housing

512060859

$9.09

30

Socket Set Screw M8 X 10

414440800

$4.19

31

Lower Housing

512060860

$17.49

32

Throttle Handle Ass'y

512061252

$129.99

33

Male Terminal

515175232

$1.59

34

Flange Screw

732601143

$4.19

35

MODULE SUPPORT - Call your local BRP dealership

512060509

Unavailable

36

Panel Nut M5 X 0.8

250000958

$4.29

37

Hex. Flange Screw M5 X 20, Scotch Grip

207552044

$5.29

38

Clip

270000141

$11.99

39

Avdel Rivet

293150027

$2.59

40

Caution Decal, Oil Level

516005521

Unavailable

41

Vibration Damper

512061516

$62.99
